Roberts R9995 Owner's Manual

Fm stereo/am pll digital radio
Hide thumbs Also See for R9995:
Table of Contents

Advertisement

Quick Links

R9995
FM Stereo/AM PLL Digital Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9995 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts R9995

Summary of Contents for Roberts R9995

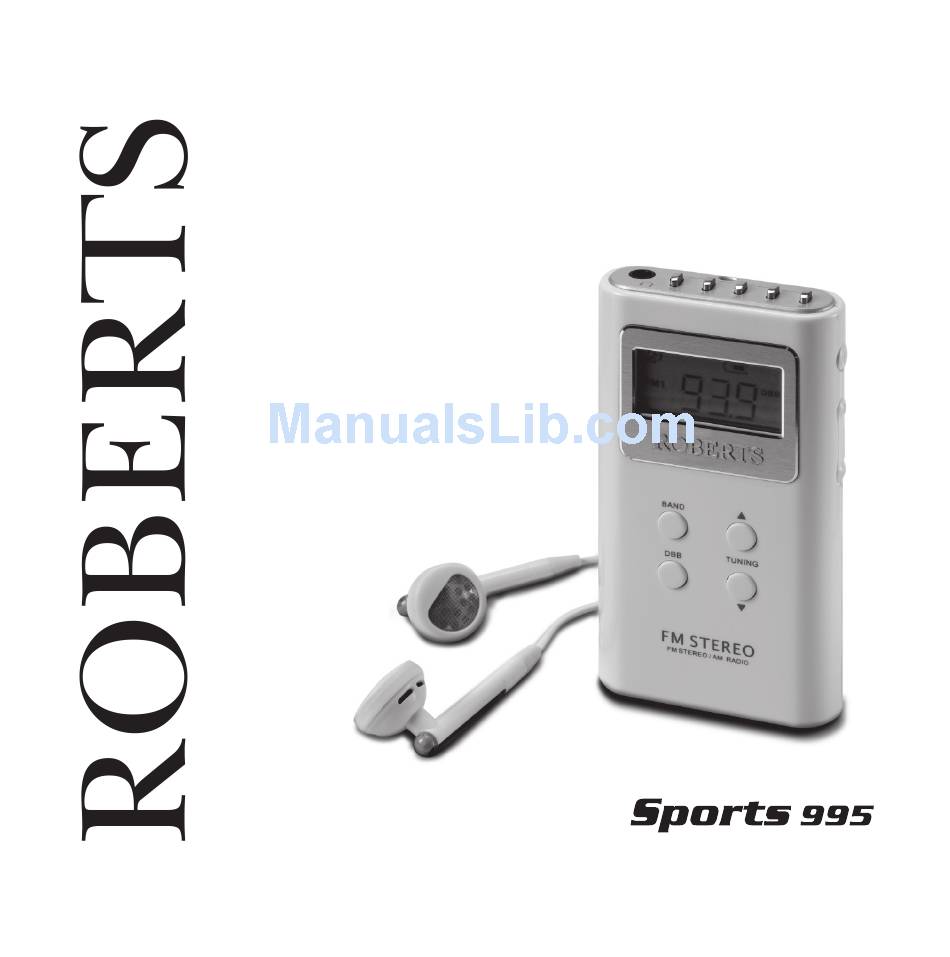

  • Page 1 R9995 FM Stereo/AM PLL Digital Radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Contents ...1 Controls ... 2-4 Earphones ...5 Display ...6 Battery ...7 Lock switch ...9 Earphones ... 11 Aerial ... 11 Scan tuning ...13 Manual tuning ...15 Presetting stations ... 17 Recalling a preset station ... 17 Mono/Stereo mode ... 19 Deep bass boost button ...

  • Page 3: Controls

    Controls 1. Stereo/Mono switch 2. Deep bass boost button 3. Band button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 4. LCD display 5. Tuning Up button 6. Tuning Down button...
  • Page 4 Controls 7. Volume control 8. Power button 9. Lock switch 10. Battery compartment...
  • Page 5 Controls 11. Earphone socket 12 . Memo preset buttons If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 6: Earphones

    Earphones 13. Earphones...

  • Page 7: Display

    Display A. Waveband indicator B. 90 minute auto shut off indicator C. Lock indicator D. Stereo indicator If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) E. Battery power indicator F. Memory preset indicator G.

  • Page 8: Battery

    Battery 1. Open the battery cover located on the rear of your radio by sliding it in the direction shown by the arrow. 2. Insert one LR03 (AAA) size battery into the compartment. Ensure that battery is inserted in accordance with the diagram shown on the rear of your radio and close the battery cover.
  • Page 9 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 10: Lock Switch

    Lock switch The Lock switch is used to prevent unintentional operation of your radio. 1. Set the Lock switch located on the back of your radio to the ‘Lock’ position. The power and all other buttons will be disabled, this will prevent accidental operation when your radio is packed in a suitcase or travel bag .
  • Page 11 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 12: Earphones

    Earphones Plug the earphones into the Earphone socket located on the top of your radio. Check that the volume control is not set too loud and place the earpieces into your ears. To save your battery the radio will shut off within 10 seconds when you unplug the earphones from the earphone jack.
  • Page 13 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 14: Scan Tuning

    Scan tuning 1. Switch on your radio by pressing the Power button. 2. To select the required waveband repeatedly press the Band button. The earphone lead should be extended as much as possible to increase reception. For MW (AM) reception there is a built in ferrite aerial.
  • Page 15 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 16: Manual Tuning

    Manual tuning 1. Switch on your radio by pressing the Power button. 2. To select the required waveband repeatedly press the Band button. The earphone lead should be extended as much as possible to increase reception. For MW (AM) reception there is a built in ferrite aerial.
  • Page 17 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 18: Presetting Stations

    Presetting stations There are 5 memory presets for each waveband FM1, FM2 and MW. 1. Switch on your radio by pressing the Power button. 2. Tune to the required station using one of the methods previously described. 3. Press and hold down the required Memory Preset button until a beep is heard (via earphones) and the preset number appears in the display and the station will be stored under the chosen preset button.
  • Page 19 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 20: Mono/Stereo Mode

    Mono mode 1. If a station being received is weak some hiss may be audible. To reduce the hiss slide the Stereo/Mono switch to the “Mono“ position. The stereo indicator will be removed from the display. 2. To return to “Stereo” mode slide the Stereo/Mono switch to the “Stereo”...
  • Page 21 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 22: Tuning Step Size

    Tuning step size In Europe and other parts of the world MW tuning steps are 9kHz, in America the MW tuning step size is 10kHz. To change the MW (AM) tuning step to 10kHz. 1. Ensure that your radio is switched off. 2.
  • Page 23 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 24: Troubleshooting

    Troubleshooting In case of malfunction due to electrostatic discharge, just reset the product (reconnection of power source may be required) to resume normal operation. General Do not allow this unit to be exposed to moisture e.g. dripping or splashing. Do not leave your radio where excessive heat could cause damage such as in a parked car where the heat from the sun can build up even though the outside temperature may not seem too high.
  • Page 25 • Your radio should not be exposed to dripping or splashing and that no objects fi lled with liquids, such as vases, shall be placed on the radio. • It is recommended to operate the product such that there is a minimum distance (10cm recommended) to adjacent objects in order to ensure good ventilation.

  • Page 26: Specifi Cation

    Specifi cations Battery Battery Life Frequency coverage Output Power Earphone Jack The company reserves the right to amend the specifi cation without notice 1 x LR03 (AAA size) Approx. 30hrs using alkaline battery FM 87.5 - 108MHz AM 522 - 1629kHz (9kHz) AM 520 - 1710kHz (10kHz) 2 x 1.0mW 3.5mm dia (Stereo)

  • Page 27: Guarantee

    In the event that it is not possible to return the instrument to the Roberts’ dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below before taking further action.
  • Page 28 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during offi ce hours) Website: http://www.robertsradio.co.uk Issue 1...

This manual is also suitable for:

Sports 995
