Summary of Contents for Roberts R9962

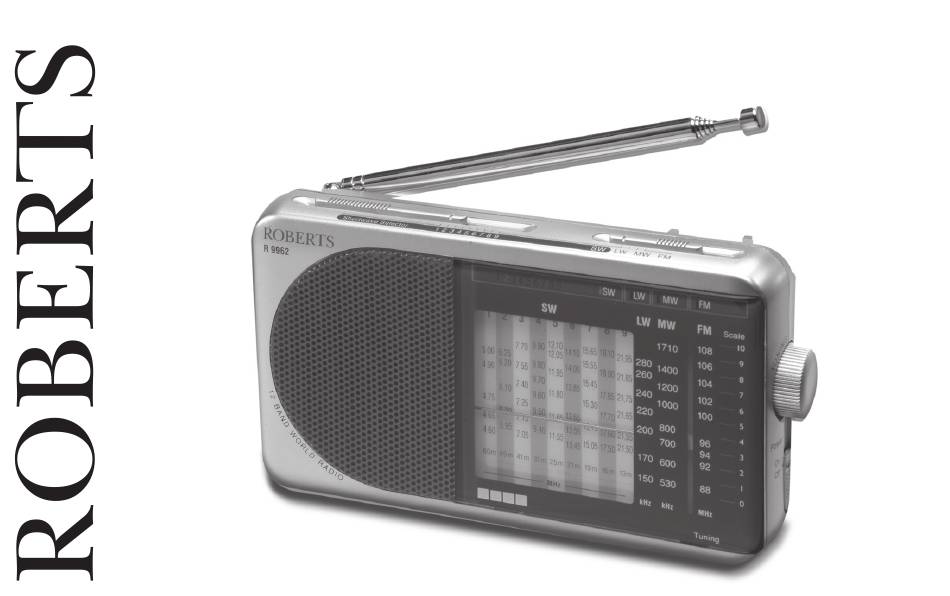

- Page 1 R9962 LW/MW/SW1-9/FM 12 band Portable World Radio...
-
Page 2: Table Of Contents
Contents Controls ........................2-3 Batteries ........................4 Operating your radio - FM .................... 5 Operating your radio - Medium and Long wave ............6 Operating your radio - Shortwave.................. 7 Headphones ........................8 Mains adaptor ........................ 8 Specifi cations ........................ 9 Guarantee........................ -
Page 3: Controls
Controls (front) 1. Telescopic aerial 2. SW band switch 3. Waveband switch 4. Tuning indicator 5. Tuning scale... - Page 4 Controls (left and right hand ends) Power DC 3V 9. Tuning control 6. Volume control 10. On/Off switch 7. Headphone socket 11. Battery compartment 8. DC input socket...
-
Page 5: Batteries
Batteries 1. Remove the Battery cover on the rear of your radio by pushing the battery door in and downwards. 2. Insert two LR6 (AA size) batteries into the spaces in the compartment. Take care to ensure all reenwich ean ime batteries are inserted with the correct polarity as shown on the rear of your radio. -
Page 6: Operating Your Radio - Fm
Operating your radio - FM Power 1. Switch on your radio by sliding the Power On/ Off switch to the On position. 2. Slide the Waveband selector switch to the LW MW FM FM position. 3. Adjust the Volume control until a hissing sound is heard. -
Page 7: Operating Your Radio - Medium And Long Wave
Operating your radio - Medium and Power Long wave 1. Switch on your radio by sliding the Power On/ Off switch to the On position. LW MW FM 2. Slide the Waveband selector switch to the MW or LW position. 3. -
Page 8: Operating Your Radio - Shortwave
Operating your radio - Shortwave Power 1. Switch on your radio by sliding the Power On/ Off switch to the On position. 2. Slide the Waveband selector switch to the SW LW MW FM position. 3. Select the required SW band using the SW band selector switch. -
Page 9: Headphones
DC 3V Mains adaptor (not included) The AC adaptor for use with the R9962 should provide 3 volts DC output at 200mA centre pin negative. Plug the lead from the adaptor into the DC socket located on the left hand end of your radio. -
Page 10: Specifi Cations
Specifi cations Power Requirements Frequency Coverage Batteries : 3V 2 x LR6 (AA) size 150 - 281 kHz External : 3V 200mA (centre pin negative) 530 - 1710 kHz 87.5 - 108 MHz Battery Life 60m band 4.60 - 5.05 MHz Approx. -
Page 11: Guarantee
Any claim under this guarantee should be made through the dealer from whom the product was purchased. It is likely that your Roberts dealer will be able to attend to any defect quickly and effi ciently, but should it be necessary the dealer will return the product to the company’s service department for attention. In the event that it is not possible to return the product to the Roberts dealer from whom it was purchased, please contact Roberts Radio using the contact details on the www.robertsradio.com website. - Page 12 ROBERTS RADIO LIMITED PO Box 130 Mexborough South Yorkshire S64 8YT Website: http://www.robertsradio.com Issue 5 © 2016 Roberts Radio Limited...
