Roberts R9993 Manual

3 band portable radio
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

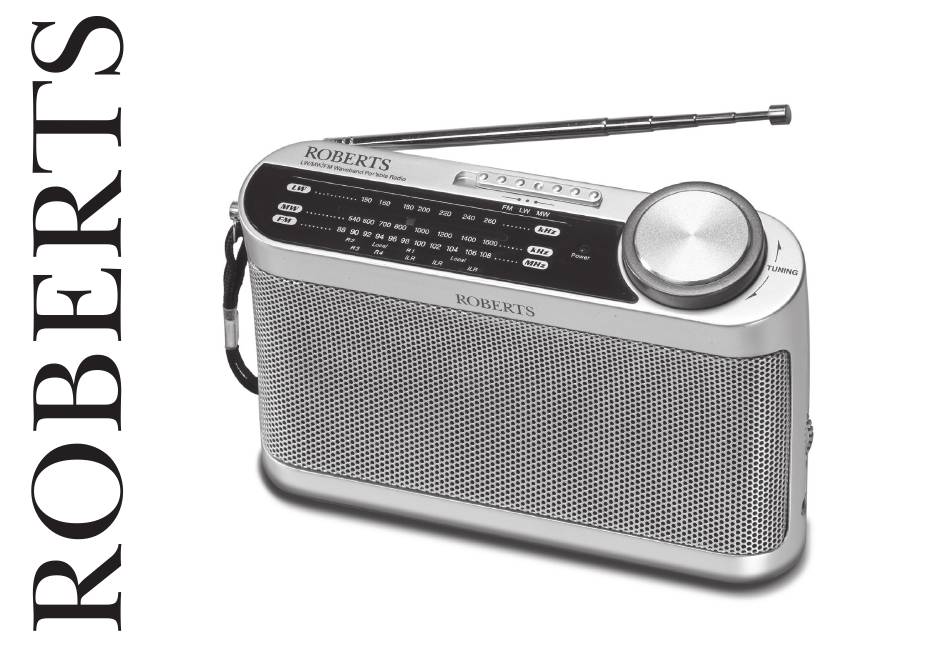

R9993
3 Band Portable Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9993 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roberts R9993

Summary of Contents for Roberts R9993

  • Page 1 R9993 3 Band Portable Radio Please read this manual before use...
  • Page 2 Controls (Top) 1. Telescopic Aerial 2. Waveband switch 3. Power LED 4. Tuning control...
  • Page 3 Controls (Left side) (Right side) 5. DC input socket 6. Headphone socket 7. Volume control 8. Battery compartment...

  • Page 4: Battery Operation

    Operation via an AC adaptor (not included) The AC adaptor for use with the R9993 should provide 6 volts DC output at 300mA, centre pin negative. (Adaptor not included) 1. Place your radio on a fl at surface.

  • Page 5: Operating Your Radio

    Operating your radio 1. Switch on your radio by rotating the Volume control anti- clockwise until a click is heard. The Power LED will light up 2. Set the Waveband selector to the required waveband. 3. Adjust the Volume control until a hissing sound is heard. 4.
  • Page 6 Headphones 1. A Headphone Socket (3.5mm) located on the right hand end of your radio is provided for use with either headphones or an earpiece. Insert- ing the headphone plug automatically mutes the internal loudspeaker. Please be aware that the sensitivity of headphones can vary widely. We therefore recommend setting the volume to a low level before connecting headphones to the radio.

  • Page 7: Specifications

    Specifi cations Circuit Features Loudspeaker 77mm Power Requirements Batteries 4 x LR6 (AA size) Output Power 400 mW into 8ohms External DC 6 Volts @ 300mA centre pin negative ( Headphone socket 3.5mm dia Battery Life Approx. 80hrs of listening for 4 hours a day at Aerial System Telescopic aerial normal volume using alkaline cells.
  • Page 8 In the event that it is not possible to return the product to the Roberts dealer from whom it was purchased, please contact Roberts Radio using the contact details on the www.robertsradio.com website.
