Roberts Multi-Powered 2 Band Radio R9957 User Manual

Multi-powered 2 band radio
Hide thumbs Also See for Multi-Powered 2 Band Radio R9957:
Table of Contents

Advertisement

Quick Links

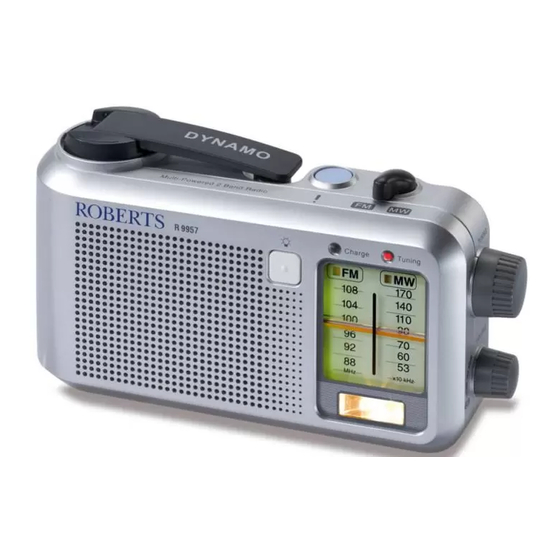

R9957
Multi-Powered 2 band radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multi-Powered 2 Band Radio R9957 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts Multi-Powered 2 Band Radio R9957

Summary of Contents for Roberts Multi-Powered 2 Band Radio R9957

  • Page 1 R9957 Multi-Powered 2 band radio Please read this manual before use...
  • Page 2 Controls 1. Dynamo handle 2. Emergency buzzer button 3. FM/MW Band switch...
  • Page 3 Controls Front 4. Lamp button 5. Charge indicator 6. Tuning indicator 7. Tuning control If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 8. Dial scale with band indicator 9. Power/Volume control 10.
  • Page 4 Controls Rear 11. Carrying strap 12. Battery compartment 13. Battery/Dynamo switch 14. Telescopic aerial 15. Headphone socket 16. DC input socket...

  • Page 5: Battery Operation

    Battery operation 1. Remove the Battery cover on the rear of the unit by pushing the catch in the direction of the arrow. 2. Insert two LR6 (AA size) batteries into the spaces in the compartment. Take care to ensure all batteries are inserted with the correct polarity as shown inside the battery compart- ment.
  • Page 6 Operation via an AC adaptor (not included) The AC adaptor for use with the R9957 should provide 3 volts DC output at 300mA centre pin positive. 1. Place your radio on a fl at surface. 2. Pull back the rubber protection cover from the DC input socket.

  • Page 7: Charging Your Radio

    Charging your radio Your radio can be powered by winding the dynamo handle which charges an internal rechargeable battery, by using ordinary alkaline batteries or by using an adaptor. (not supplied) Using Dynamo power 1. Ensure the telescopic aerial is in the rest position before winding the dynamo handle.

  • Page 8: Listening To Your Radio

    Listening to your radio 1. For FM reception fully extend and position the telescopic aerial for best reception. For MW reception there is a built in ferrite aerial, rotate the radio to the position giving best reception. 2. Switch the Dynamo/Battery switch to either the Dynamo (if charged) or battery position.

  • Page 9: Lamp Operation

    Lamp operation Your radio has a built in lamp which can either be used to illumi- nate the dial scale window or to illuminate for a short distance when required. 1. Press the lamp button to switch on the lamp. 2.
  • Page 10 Headphones 1. A Headphone Socket (3.5mm) located on the left hand end of your radio is provided for use with either headphones or an earpiece. Inserting the headphone plug automatically mutes the internal loudspeaker. 2. Lift back the rubber protection cover then insert headphones into the headphone socket.

  • Page 11: Specifications

    Specifi cations Power Requirements Batteries 2 x LR6 (AA size) Not included Dynamo 1.2V rechargeable Ni-MH battery Mains DC 3 Volts 300mA mains power adaptor centre pin positive (+). (not supplied) Battery Life Approx. 100hrs of listening for 4 hours a day at normal volume using alkaline cells.
  • Page 12 Company’s service department for attention. In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown below.
