Roberts R9958 Manual

Roberts R9958 Manual

Mw/fm pll synthesised splash proof radio
Hide thumbs Also See for R9958:
Table of Contents

Advertisement

Quick Links

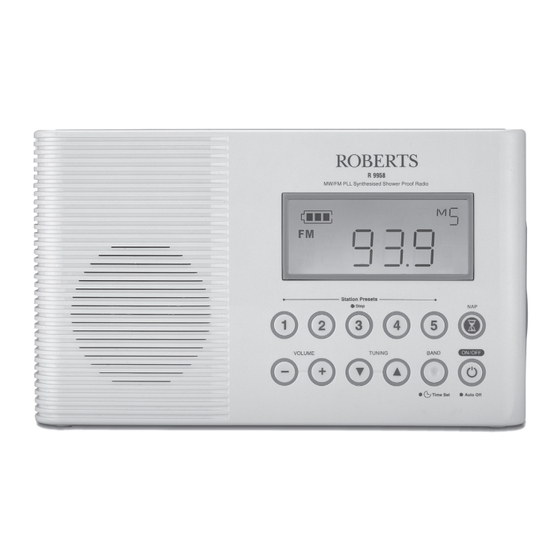

R9958
MW/FM PLL Synthesised Splash Proof Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9958 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roberts R9958

Summary of Contents for Roberts R9958

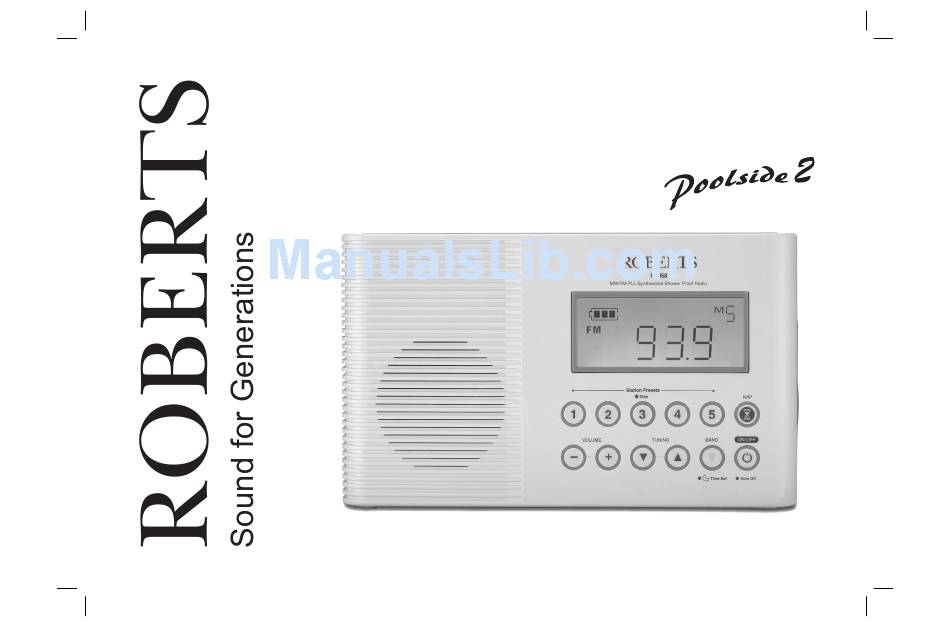

  • Page 1 R9958 MW/FM PLL Synthesised Splash Proof Radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Controls ... 2-4 Battery operation ...5 Operation via AC adaptor (not supplied) ...6 Using the fi xing brackets ...7 FM wire aerial compartment ...7 Multi purpose handle ...8 Setting the clock ...9 Operating your radio ...10 Auto-Scan tuning ...10 Manual tuning ...11 Storing stations in preset memories ...12 Recalling preset stations ...13...

  • Page 3: Controls

    Controls (Front) 1. On/Off/Auto off button 2. Band/time set button 3. Tuning up button 4. Tuning down button 5. Volume up button If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 6. Volume down button 7.
  • Page 4 Controls (Back) 11. Battery compartment 12. Battery compartment door 13. FM wire aerial compartment 14. DC input socket 15. Bracket holders x 2 16. Swivel hanger/handle...
  • Page 5 17. Poolside torch LED 18. Poolside LED torch button 19. Poolside alarm button 20. Carry strap location x 2 If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) a. Battery power status b.

  • Page 6: Battery Operation

    Battery operation 1. Release the catch securing the rear battery compartment door of your radio and lift up the battery compartment cover. 2. Insert two LR20 (D size) batteries into the spaces in the compartment. Take care to ensure all batteries are inserted with the correct polarity as shown inside the battery compartment.

  • Page 7: Operation Via Ac Adaptor (Not Supplied)

    Operation via an AC adaptor (not supplied) The AC adaptor for use with the R9958 should provide 3 volts DC output at 300 mA centre pin positive. 1. Insert the adaptor plug into the DC in socket on the left hand side of your radio.

  • Page 8: Using The Fi Xing Brackets

    Using the fi xing brackets The radio is supplied with a mounting bracket to allow wall mounting (for example in a bathroom). 1. Use the bracket as a template to mark the hole positions before drill- ing. Take care to ensure that there are no cables or pipes in the wall near the hole locations.

  • Page 9: Multi Purpose Handle

    Swivel hanger/handle Using the multi-purpose handle, you may hang or carry the radio when not used in a bathroom. IMPORTANT : If the handle is used to hang the radio, make sure that the handle is locked with the loop closed so that the radio cannot fall if it is accidentally knocked.

  • Page 10: Setting The Clock

    Setting the clock 1. The clock will start running when the batteries are installed or when the radio is connected to the mains supply. The display will show "-:--" . 2. The time must be set with your radio switched to the off position. 3.

  • Page 11: Operating Your Radio

    Operating your radio Your radio is equipped with three tuning methods:- Manual tuning, Auto scan tuning and Memory preset tuning. Auto scan tuning 1. Press the On/Off button to switch on your radio. 2. Select the required waveband by repeatedly pressing the Band but- ton.

  • Page 12: Manual Tuning

    Manual tuning 1. Press the On/Off button to switch on your radio. 2. Select the required waveband by repeatedly pressing the Band but- ton. For the FM waveband fully extend the wire aerial and position for optimum reception. For MW reception there is a built in ferrite aerial. Rotate your radio to the position giving best reception.

  • Page 13: Storing Stations In Preset Memories

    Storing stations in preset memories There are 5 memory presets for each waveband. 1. Press the On/Off button to switch on your radio. 2. Tune to the required station using one of the methods previously described. 3. Press and hold down the required Preset button until the radio beeps (greater than 2 seconds) The preset number will appear in the display and the station will be stored under the chosen preset button.

  • Page 14: Recalling Preset Stations

    Recalling preset stations 1. Press the On/Off button to switch on your radio. 2. Select the required waveband by repeatedly pressing the Band but- ton. 3. Momentarily press the required Preset button, the preset number and station frequency will appear in the display.

  • Page 15: Adjustable Sleep Timer

    Adjustable sleep timer Your radio can be set to turn off after a preset time has elapsed. The sleep setting can be adjusted between 10 and 60 minutes in 10 minute increments. 1. Press and hold the On/Off button, the display will cycle through the available sleep times 10>20>30>40>50>60 minutes.

  • Page 16: Adjustable Nap Timer

    Adjustable Nap timer The nap timer facility allows you to set the radio to wake you after a pre- determined interval - (up to 2 hours). 1. The nap timer can be set with your radio switched on or off. 2.

  • Page 17: Recalling Preset Nap Timer Settings

    Recalling preset nap timer settings Your radio has fi ve nap timer settings stored in memory. 1. Press and release the Nap timer button. 2. Momentarily press the required Preset button, the preset number and nap timer setting will appear in the display Preset 1 button - nap time 10 mins.

  • Page 18: Storing Nap Timer Settings In Preset Memories

    Storing Nap timer settings in preset memories There are 5 memory presets available if you wish to change the preset nap timer settings. 1. Set nap timer as instructions on page 15. 2. When the selected nap timer setting is selected, press and hold down the required Preset button until the radio beeps (greater than 2 seconds) The preset number will appear in the display and the nap timer setting will be stored under the chosen preset button.

  • Page 19: Tuning Step Size

    Tuning step size In Europe and other parts of the world MW tuning steps are 9kHz, in America the MW tuning step size is 10kHz. On FM tuning steps can be set to either 50 or 100kHz. 1. Ensure that your radio is switched off. 2.

  • Page 20: Poolside Alarm

    Poolside alarm Your radio has a built in alarm buzzer for emergencies. The alarm is to be used if you require help. 1. Press the Poolside alarm button to activate the buzzer. 2. Press the Alarm button again to stop the buzzer. •...

  • Page 21: Carrying Strap

    Carrying strap Your radio is supplied with a carrying strap. 1. The strap is fi tted as shown in the diagram below. 2. Ensure that the free end of the strap is completely through the buckle before using the strap to carry the radio. If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)

  • Page 22: Display Backlight

    1. The display backlight will be switched on for approximately 15 seconds when any button is pressed. Splash proof 1. The R9958 is designed to withstand occasional exposure to splashing water in the bathroom, shower or poolside environment. The radio is not intended to be immersed in water.

  • Page 23: Troubleshooting

    Troubleshooting In case of malfunction due to electrostatic discharge, just reset the prod- uct (reconnection of power source may be required) to resume normal operation. Specifi cations Power Requirements Mains DC 3 Volts 300mA mains power adaptor centre pin positive (+). (not supplied) Batteries 2 x LR20 (D size) (not supplied) Battery Life...

  • Page 24: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual.
