Roberts CR9980 Manual

Roberts CR9980 Manual

Triple alarm cd clock radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

CR9980
Triple Alarm CD Clock Radio
Please read this manual before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR9980 and is the answer not in the manual?

Questions and answers

Related Manuals for Roberts CR9980

Summary of Contents for Roberts CR9980

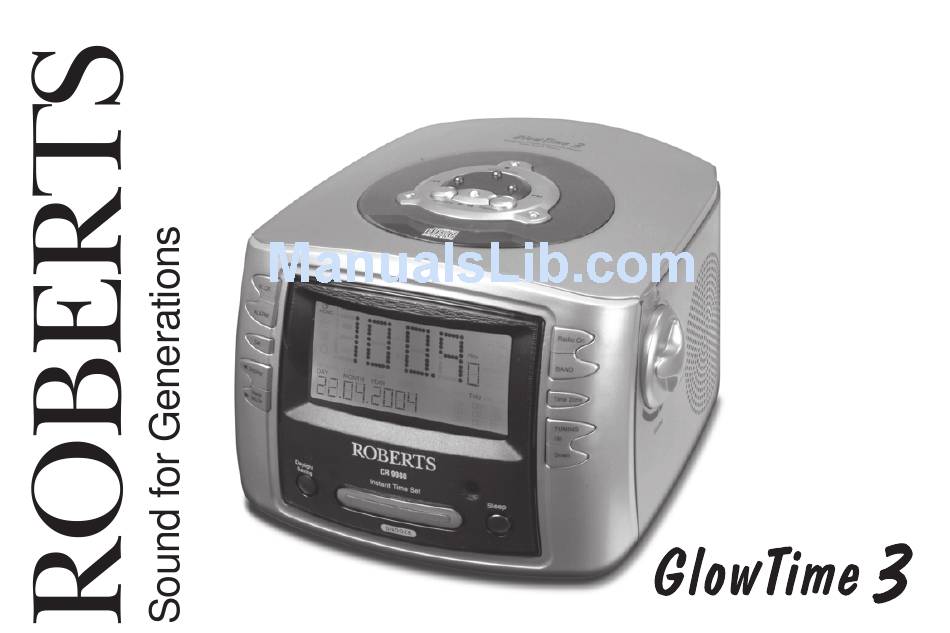

  • Page 1 CR9980 Triple Alarm CD Clock Radio Please read this manual before use...

  • Page 2: Table Of Contents

    Contents Contents ................2 CD random mode ............. 16 Controls ................3-6 Programmed play ............. 17 Switching on ............... 7 Erasing a programme ............18 Setting the time zone ............7 Setting alarm times ............ 18-21 Setting the time and date ..........8-9 Cancelling an Alarm ............

  • Page 3: Controls

    Controls Front 1. Snooze button 5. Wake button 9. Alarm Off button 13. Time Zone button 2. Summer Time button 6. Display button 10. Display 14. Tuning Up button 3. Auto Dimmer 7. Time Set button 11. Radio On button 15.
  • Page 4 Controls 20. F.Skip button/Mem. Up 17. Memory button 18. B.Skip button/Mem. Down 21. Repeat button 19. Stop/Off button 22. Play/Pause button...
  • Page 5 Controls Left hand side Right hand side 23. Headphone socket 24. Volume control 25. Battery compartment (on underside) If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri)
  • Page 6 Controls Main display 26. Summer time indicator 31. Alarm mode indicator 27. Time zone indicator 32. Year indicator 28. Time set indicator 33. Month indicator 29. Sleep indicator 34. Day indicator 30. Random/repeat play indicator...

  • Page 7: Switching On

    Switching on 1. Place the unit on a flat surface. Plug the mains lead into a wall socket and switch on at the wall socket. Setting the time zone To set your clock radio to another Time Zone, please proceed as follows: Note there are 24 time zones programmed into your CD clock radio as follows:...

  • Page 8: Setting The Time And Date

    Setting the time and date Note: When the unit is set to CD mode or radio you cannot set the time and date. 1. Press and hold the Time Set button for 2 seconds. 2. The clock display will change to show the time setting icon the minutes will flash.

  • Page 9: Summer Time

    Setting the time and date (continued) 8. Press the Time Set button a fourth time. The month will flash in the clock display. 9. Press the Tuning Up or Tuning Down buttons to increase or decrease the month. 10. Press the Time Set button a fifth time. The year will flash in the clock display.

  • Page 10: Listening To The Radio

    Listening to the Radio 1. Switch on your radio by pressing the Radio On button. 2. The backlight will change from green to orange. The radio icon the station frequency will show in the display. After approximately 10 seconds the display will revert back to showing the time. 3.

  • Page 11: Storing Stations In Memory

    Storing stations in memory 1. Tune in the radio to the required station. 2. Press the Memory button. The Memory indicator will flash on the display. 3. Select the required memory position by using the F.skip/Mem. Up or B.skip/Mem. Down buttons. The position number will show on the display.

  • Page 12: Compact Discs

    Compact discs Use only Digital Audio CDs which have the symbol. Never write on a CD or attach any sticker to the CD. Always hold the CD at the edge and store it in its case after use with the label facing up. To remove dust and dirt, breathe on the CD and wipe it with a soft, lint-free cloth in a straight line from the centre towards the edge.

  • Page 13: Inserting A Cd

    Inserting a CD 1. To open the CD compartment, lift the CD door on the edge marked 'Open'. 2. Press the CD onto the spindle and close the CD door. 3. Press the Play/Pause button to enter the CD standby mode. 4.

  • Page 14: Playing A Cd

    Playing a CD 1. Press the Play/Pause button to start playback. The display will show the time elapsed for the current track. The track number will show on the right side of the display. After a few seconds the display will revert back to clock time. 2.

  • Page 15: Selecting A Track

    Selecting a track Use this function to select a track on the CD. 1. Whilst the CD is playing, press either the F.skip/Mem. Up or B.skip/ Mem. Down buttons to change to the desired track. You can also skip tracks when the player is in stop mode. Skip to the desired track using the F.skip/Mem.

  • Page 16: Cd Repeat Mode

    CD repeat mode Use this function to repeat a single track or repeat the entire CD. 1. Whilst the CD is playing press the Repeat button once to repeat the current track. The repeat track icon will appear and the selected track will be repeated indefinitely.

  • Page 17: Programmed Play

    Programmed play Use this function to programme the player to play selected tracks on the CD in the order that you want to hear them played. A maximum of 21 tracks can be programme. Note: You cannot programme the CD whilst it is playing. If the CD is playing press the Stop/Off button to stop playback and the display shows the total number of tracks.

  • Page 18: Erasing A Programme

    Erasing a programme 1. Programmes are erased by pressing the Stop/Off button, or interrupting the mains supply. Setting Alarm Times Your unit has three separate alarms (Alarm 1, Alarm 2 and Alarm 3) that can be set and used independently and can be set to wake you with the radio, the CD player or by a buzzer.
  • Page 19 Setting alarm times (continued) 2. Select the required alarm system (Alarm 1, Alarm 2 or Alarm 3) by pressing the Alarm Set button until the alarm system you require is shown in the display. The display will change from the current time to the alarm time.
  • Page 20 Setting alarm times (continued) 9. Press the Wake button as necessary to set the alarm day options. The display will show the applicable numbers as shown below for the setting selected: 1 - 5 Monday through Friday 1 - 6 Monday through Saturday 1 - 7 Every day 6 - 7 Saturday and Sunday only 7 - 7 Sunday only...

  • Page 21: Cancelling An Alarm

    Setting alarm times (continued) 11. At the time that the alarm is set to go off: The Radio will switch on and play for 60 minutes (if set to the Radio mode). The CD will switch on and play for 60 minutes (if set to the CD mode).

  • Page 22: Snooze Control

    Snooze Control The Radio, CD or Buzzer alarms can be silenced for 8 minutes by pressing the Snooze button. This sequence can be repeated throughout the 60 minute alarm period. Checking the Alarm Times Use this function whenever you want to check the alarm time settings. 1.

  • Page 23: Sleep Timer

    Sleep timer 1. CD or radio playback can be set to switch off automatically after a preset time has elapsed. With the unit in either CD or radio mode, press the Sleep button. The display will show '90' minutes as the default setting.

  • Page 24: Auto Dimmer

    Auto Dimmer 1. The Auto Dimmer located on the front of your CD clock radio will automatically adjust the intensity of the display to suit ambient room light. Headphones 1. A Headphone Socket (3.5mm) located on left side of the unit is provided for use with either headphones or an earpiece.

  • Page 25: Specifications

    Specifications Circuit Features Power Requirements Loudspeakers 8 ohms Output power 2 x 500 mW Mains AC 230 volts, 50Hz only Back up Batteries 2 x LR6 (AA Size) alkaline Aerial System Wire Aerial Frequency Coverage Built-in Ferrite Aerial 87.5 - 108MHz 522 - 1629kHz Warning CLASS 1 LASER PRODUCT means that the laser's construction makes it inherently safe so that the legally prescribed maximum permissible radiation...

  • Page 26: General

    Back-up Battery (not necessary for the unit to function) Mains supply Slide the battery cover catch in the direction of the arrow. Open the The CR9980 will operate from a supply of AC 230volts, 50Hz only. battery cover. Fit 2 size LR6 (AA) or equivalent batteries into the For your convenience this product is supplied with a plug which is fitted compartment.

  • Page 27: Guarantee

    In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action.
  • Page 28 ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 2...

This manual is also suitable for:

Glowtime 3 cr9980

Table of Contents
