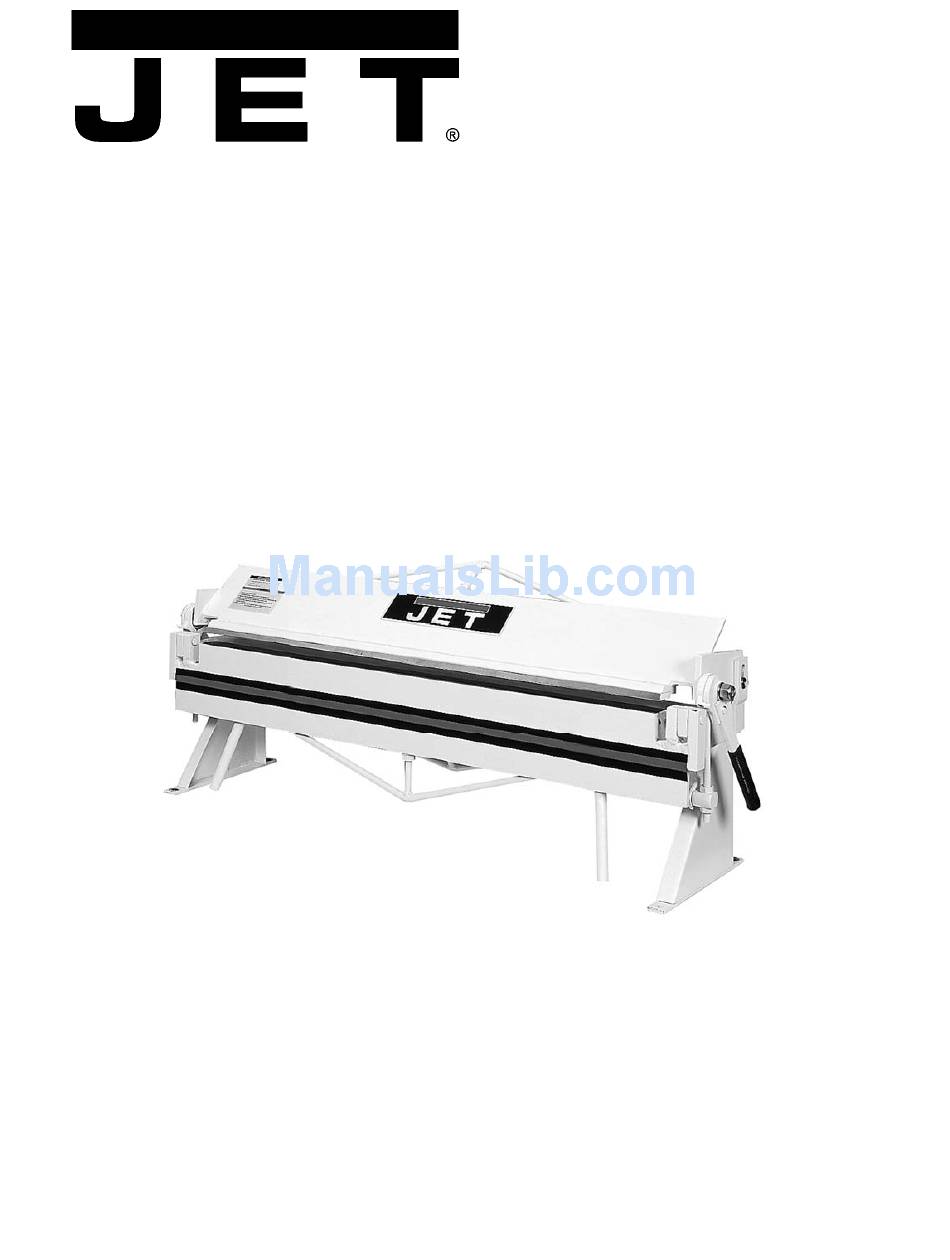

- Page 1 Owner's Manual Hand Brake Models: HB-1648H, HB-2248H WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-754216 Ph.: 800-274-6848 Revision G 03/2011 www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing) Inc.
-
Page 2: Warranty And Service
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. - Page 3 For your own safety, read the owner’s manual before operating the hand brake. This hand brake is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a hand brake, do not use until proper training and knowledge have been obtained.
- Page 4 Specifications: HB-1648H HB-2248H Stock Number............756216 ............756222 Capacity ..............16 Gauge x 48” Wide ..... 22” Gauge x 48” Wide Overall Dimensions (LxWxH) ........61”x21”x28” ..........61”x21”x26” Maximum Lift of Beam ..........1-1/4” ..............7/8” Beam Adjustment (front to rear) ........ 5/8” ..............1/8”...
- Page 5 Breakdown for the HB-1648H & HB-2248H Hand Brake...
- Page 6 Parts List for the HB-1648H & HB-2248H Hand Brake Index Part Description Size Quantity 901 ..HB1648N-901 ....Hold Down Assembly................1 .... HB2248N-901 ....Hold Down Assembly................1 902 ..HB1648N-902 ....Base Assembly ..................1 .... HB2248N-902 ....Base Assembly ..................1 903 ..
- Page 8 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
