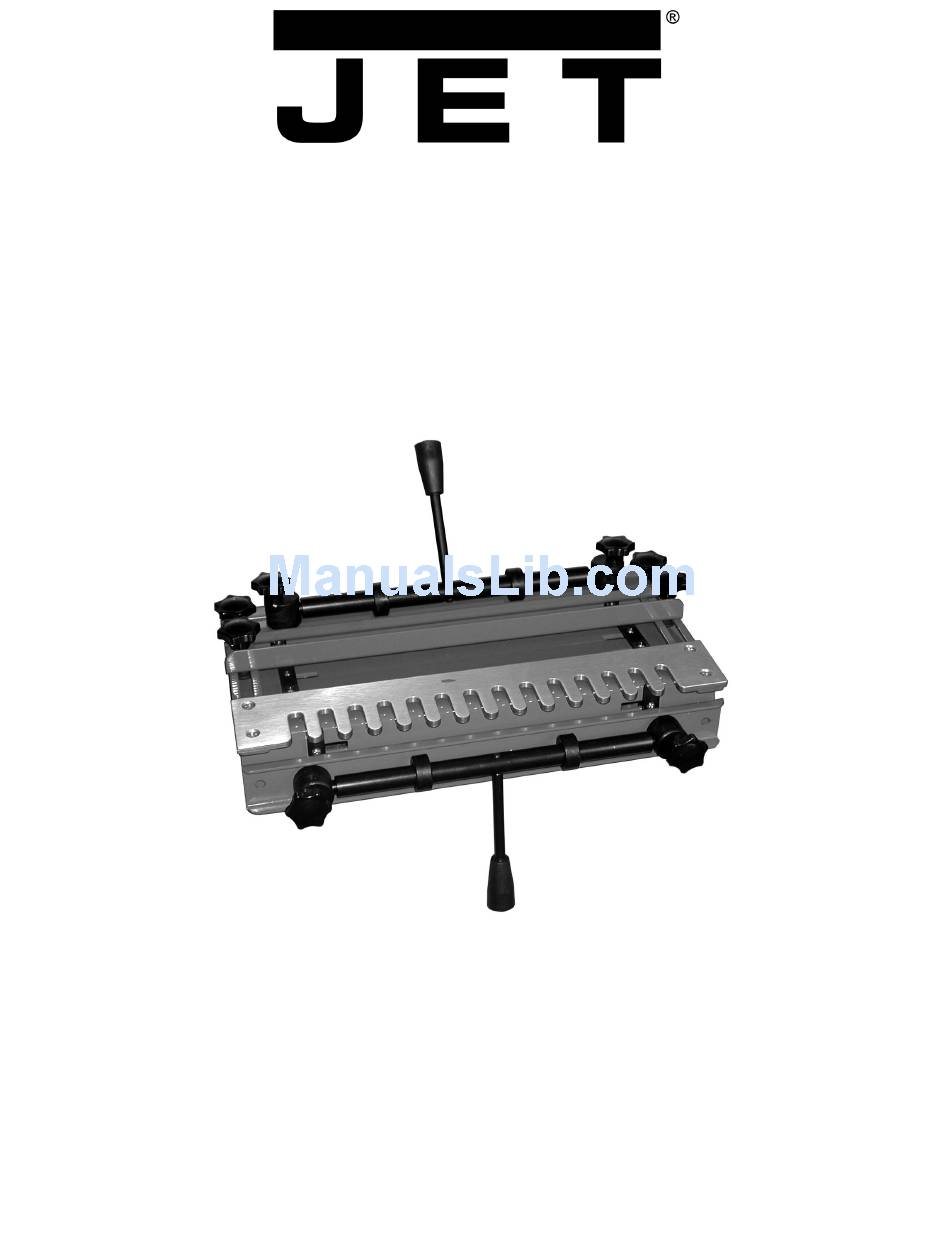

- Page 1 OWNER'S MANUAL 12” Master Dovetail Jig WMH TOOL GROUP Consumer/Light Industrial Products Division P.O. BOX 1349 Auburn, WA 98071-1349 Ph: 1-800-274-6848 Fax: 1-800-274-6840 E-mail: jet@wmhtoolgroup.com www.wmhtoolgroup.com M-709060 07/02...
-
Page 2: Warranty And Service
Authorized Repair Stations located throughout the United States can give you quick service. In most cases, any one of these WMH Tool Group Repair Stations can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET, Performax, Wilton, or Powermatic tools. - Page 3 WARNING 1. Read and understand the entire owner’s manual before attempting assembly or operation. 2. This Dovetail Jig is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a Dovetail Jig, do not use until proper training and knowledge have been obtained.
-
Page 4: Available Accessories
12” Master Dovetail Jig 709060 Width Capacity .............................12” Thickness Capacity.........................1/2" – 1-1/4” Jig Dimensions ......................11”W x 17”L x 6-3/4“H Gross Weight...........................23 lbs. Available Accessories 709061 ....................5/16” Aluminum Dovetail Template 709062 ....................7/16” Aluminum Dovetail Template 709063 ....................1/2” Aluminum Dovetail Template 709064 .................... - Page 5 Operation and Setup The 12” Master Dovetail Jig comes with a 1/2" template. It should be used with a 1/2" dovetail router bit (1/4" shank, 14°), and a 7/16” guide bushing. Always set up and practice on a test piece. 1.
- Page 6 11. Set the template back from the front edge of Note: Once the desired router bit height is the workpiece by approximately 1/8”, see established make a simple gauge block out of a Figure 5. hardwood to quickly get the correct setting in the future.
- Page 7 Breakdown for the 12” Dovetail Jig...
- Page 8 Parts List for the 12” Dovetail Jig Index Part Description Size Qty. 1..91801......Base ..................... 1 2..91802......Threaded Bushing ................4 3..91803......Bracket ....................2 4..91804......Knob Short ................... 2 5..91805......Knob..................... 2 6..91806......Handle....................2 7..91807......
