Operating Instructions and Parts Manual
3/4, 1-1/2, and 3 Ton Grip Pullers
Models JG-75A, JG-150A, JG-300A
Model JG-75A shown
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-286575
Ph.: 800-274-6848
Revision B 04/2017
www.jettools.com
Copyright © 2017 JET
Advertisement
Table of Contents
Related Manuals for Jet JG-75A
Summary of Contents for Jet JG-75A

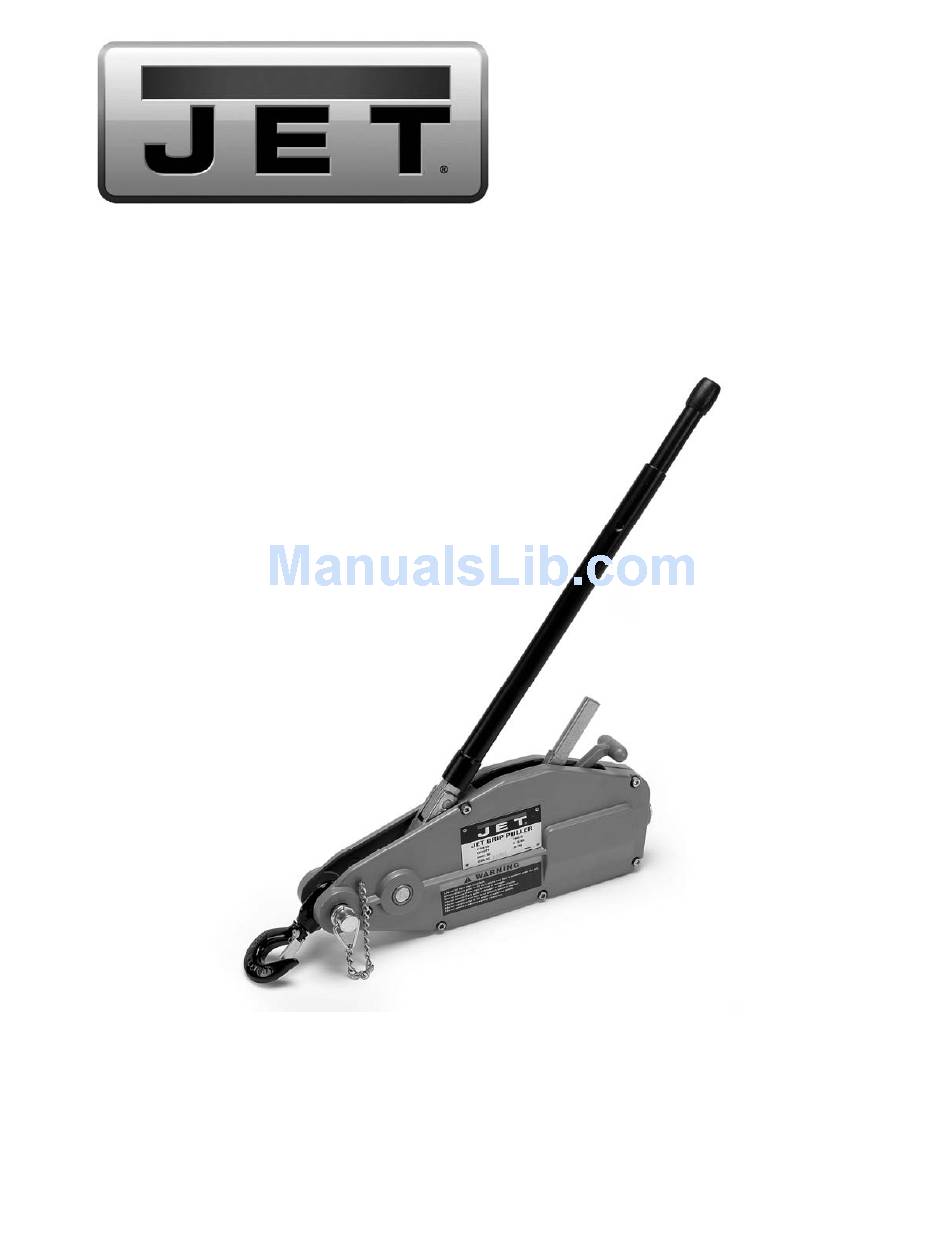

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 3/4, 1-1/2, and 3 Ton Grip Pullers Models JG-75A, JG-150A, JG-300A Model JG-75A shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-286575 Ph.: 800-274-6848 Revision B 04/2017 www.jettools.com...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
Operation............................... 6 Maintenance ..............................7 JG-75A (3/4 Ton Grip Puller) ........................8 Parts List: JG-75A (3/4 Ton Grip Puller)....................9 JG-150A (1-1/2 Ton Grip Puller) ......................10 Parts List: JG-150A (1-1/2 Ton Grip Puller) .................... 11 JG-300A (3 Ton Grip Puller) ........................12 Parts List: JG-300A (3 Ton Grip Puller) .................... -
Page 4: Introduction
If there are any questions or comments, please contact either your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Unpacking
Unpacking Open shipping container and check for shipping damage. Report any damage immediately to your distributor and shipping agent. Do not discard any shipping material until the Grip Puller is assembled and operating properly. Compare the contents of your container with the following parts list to make sure all parts are intact. -
Page 6: Operation
4. Pull the wire rope through by hand to take up the slack and make sure that the exit point is not obstructed. 5. While keeping the wire rope taut, push down on the clamp lever and allow it to spring back to its natural position. -
Page 7: Maintenance
Make sure hooks are not deformed and that the Before storing the grip puller: puller body has not been warped or damaged. 5. After use, remove the wire rope from the Use care to prevent the wire rope from kinking. If main body by setting the clamp lever into the the rope is left shaped like a basket or is kinked notch (disengage clamp), then pulling the... -
Page 8: Jg-75A (3/4 Ton Grip Puller)
JG-75A (3/4 Ton Grip Puller) -
Page 9: Parts List: Jg-75A (3/4 Ton Grip Puller)
Parts List: JG-75A (3/4 Ton Grip Puller) Index No. Part No. Description Size 1 ....JG75A-1 ....Case, Right ....................1 2 ....TS-2285121 ..... Flat Head Screw ..........M5x12 ......1 3 ....JG75A-3 ....Washer ..................... 1 4 .... -
Page 10: Jg-150A (1-1/2 Ton Grip Puller)
JG-150A (1-1/2 Ton Grip Puller) -
Page 11: Parts List: Jg-150A (1-1/2 Ton Grip Puller)
Parts List: JG-150A (1-1/2 Ton Grip Puller) Index No. Part No. Description Size 1 ....JG150A-1 ....Case, Right ....................1 2 ....TS-2285121 ..... Flat Head Screw ..........M5x12 ......1 3 ....JG75A-3 ....Washer ..................... 1 4 .... -
Page 12: Jg-300A (3 Ton Grip Puller)
JG-300A (3 Ton Grip Puller) -
Page 13: Parts List: Jg-300A (3 Ton Grip Puller)
Parts List: JG-300A (3 Ton Grip Puller) Index No. Part No. Description Size 1 ....JG300A-1 ....Case, Right ....................1 2 ....JG300A-2 ....Flat Head Screw ..........M5x8 ......1 3 ....JG75A-3 ....Washer ..................... 1 4 .... - Page 14 This page intentionally left blank.
- Page 15 This page intentionally left blank.
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
