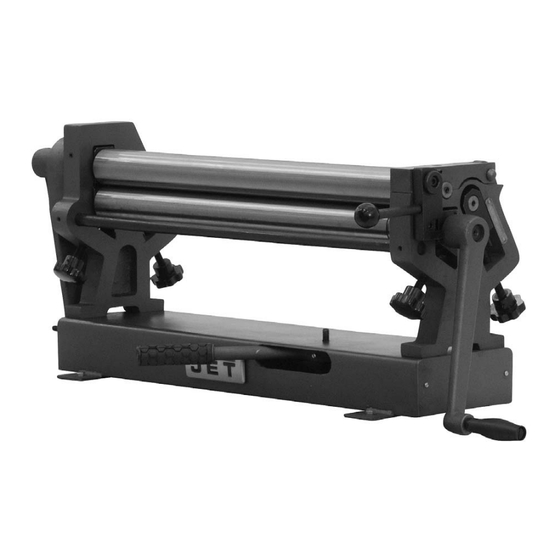

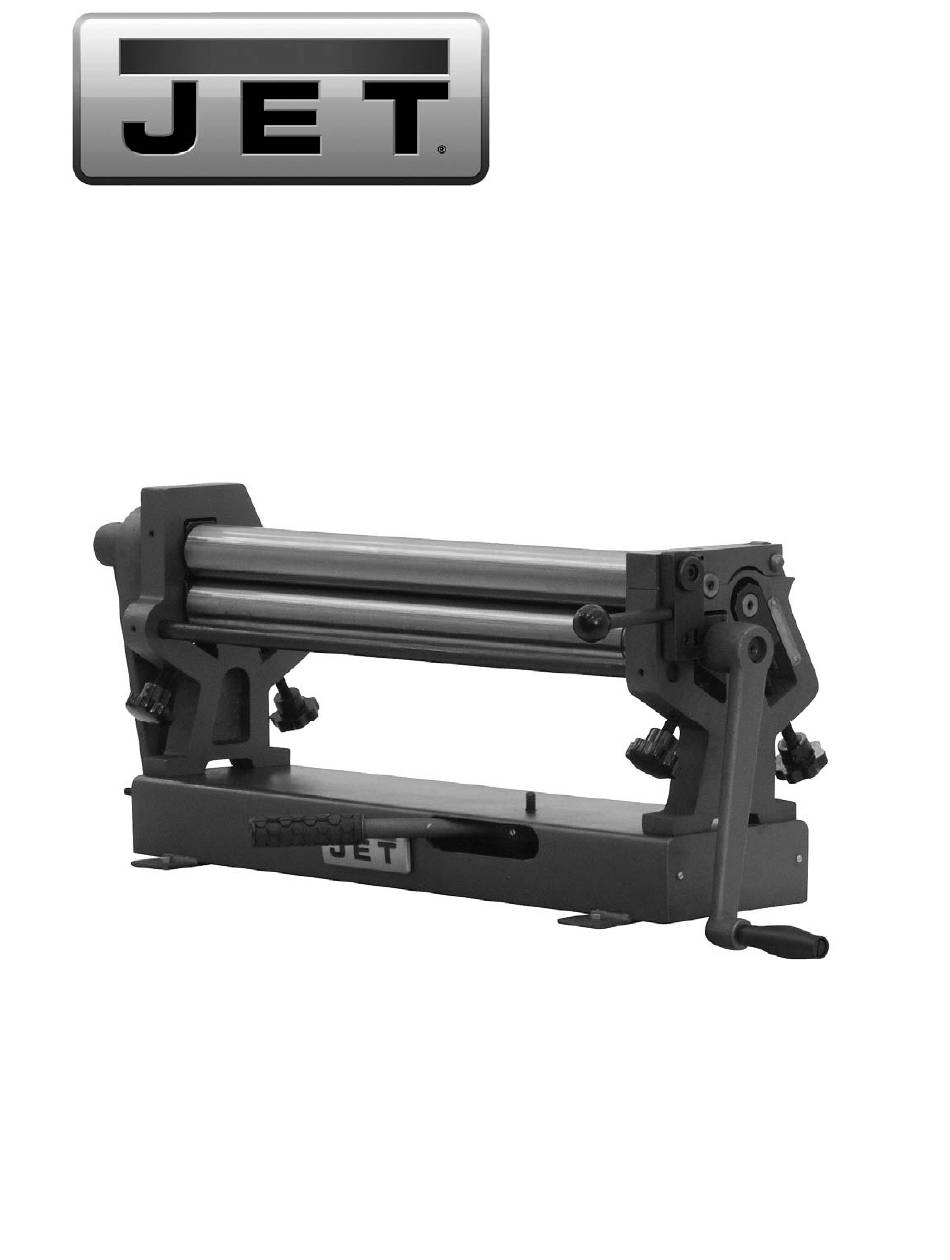

- Page 1 Operating Instructions and Parts Manual SR-2024M and SR-2236M Slip Rolls SR-2024M shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-756020 Ph.: 800-274-6848 Revision B 12/2015 www.jettools.com Copyright © 2015 JET...
- Page 2 JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...
- Page 3 2. KEEP ALL BODY PARTS AWAY FROM MOVING PARTS. Avoid placing any part of your body near belts, cutters, gears, etc. 3. DO NOT EXCEED GAUGE RATED CAPACITY on this slip roll, 20 gauge for SR-2024M and 22 gauge for SR-2236M.
- Page 4 Specifications Model Number ..............SR-2024M ..........SR-2236M Stock Number ................. 756020 ............756026 Capacity (mild steel) ..............20............22 Maximum Forming Length ............24”............36” Number of Rolls ................3 ..............3 Diameter of Rolls ................2” ..............2” Minimum Forming Radius ............1”............1”...
- Page 5 Breakdown for the SR-2024M & SR-2236M Slip Roll...
- Page 6 ....SR2024M-ID ..... ID Label (not shown)..................1 ....SR2236M-ID ..... ID Label (not shown)..................1 ....SR2024N-W ....Warning Label (not shown) ................1 ....JET-113..... JET Logo with adhesive (not shown) ....... 113 x 47mm ....1...
- Page 7 Optional Accessories 754024 Stand for SR-2024M Slip Roll 754036 Stand for SR-2236M Slip Roll...
- Page 8 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
