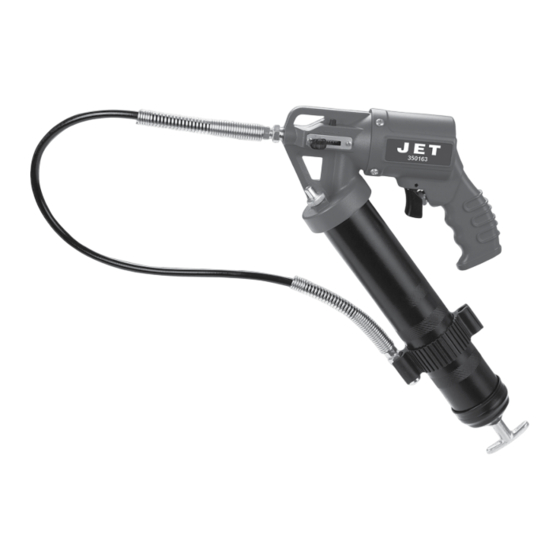

Dual mode air operated grease gun

Advertisement

Quick Links

Operation MANUAL
Dual Mode Air Operated Grease Gun
Air Operated Grease Guns are ideal for applications requiring frequent
greasing such as in automotive workshops, manufacturing facilities etc.
PATENTED DESIGN
Fully automatic free outflow and single
shot / grease discharge on demand
Designed for outstanding durability
and dependability, this grease gun
eliminates the need to have two
separate guns – continuous flow
and single shot
BUILT TOUGH
• Heavy duty and durable Aluminium
die cast head with precision honed
internal bore. Head fitted with bulk
loader that doubles as an air bleeder
• Ergonomic pistol grip and acute angle design for higher balance
and ease of use, especially in narrow work spaces
• Sturdy variable trigger mechanism to dispense grease
• Grease gun barrel in premium powder coated finish with clip
mounted on the barrel for securing hose & coupler when not in use
DUAL MODE
• Switch between fully automatic continuous grease flow operation
and on demand/single shot operation, with the slide of an easy to
use button
COMPLETE WITH
30" (760 mm) flexible grease hose and coupler
DEVELOPS
UP TO
6,000 PSI
(413 BAR)
(1.30 OZ. / 40 STROKES)
CARTRIDGE CAPACITY
14 OZ
400 g
CARTRIDGE
SUCTION
FILL
LOADING
DELIVERS
(ONE SHOT MODE)
(CONTINUOUS FLOW)
UP TO
UP TO 400 gm / MIN
0.90 gm / SHOT
BULK CAPACITY
500 cm
3
FILLER PUMP
LOADING
DELIVERS
(14 OZ./MIN)
THREADS
1/8" BSPT
BULK FILL
Prod. No. 350163
Mod. No. JDMAGG-14
Patented dual-mode
technology instantly
converts from single
shot to continuous
flow operation
Retaining clip secures
hose for storage
Combined bulk loader/air
bleeder valve
1
