Summary of Contents for IMC Networks Giga-MiniMc LFPT

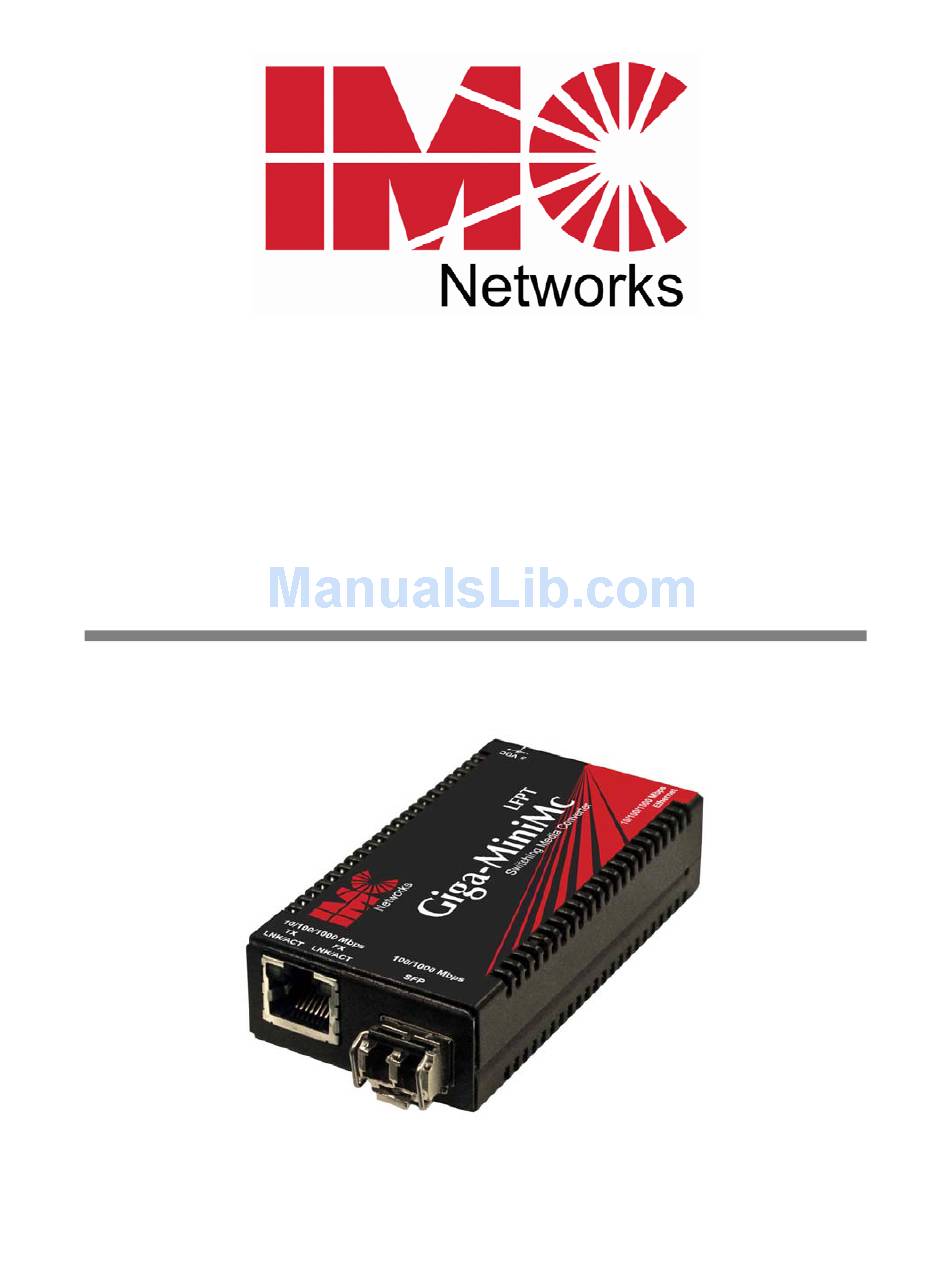

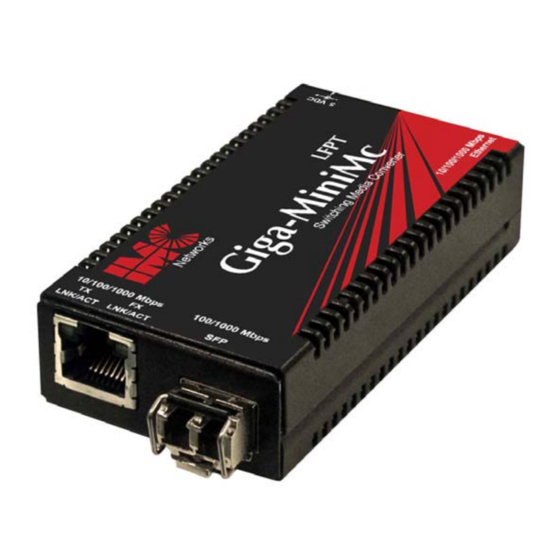

- Page 1 Giga-MiniMc with LFPT Operation Manual Above illustrations are representative; some minor differences may be present in actual product...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
About the Giga-MiniMc with LFPT ..............1 Installing the Giga-MiniMc with LFPT ..............1 DIN Rail Mounting.....................2 Powering the Giga-MiniMc with LFPT ..............2 LED Operation....................3 Link Fault Pass Through (LFPT) ................3 IMC Networks Technical Support...............4 Specifications .....................5 Fiber Optic Cleaning Guidelines.................6 Electrostatic Discharge Precautions..............7 Safety Certifications....................8... -
Page 4: About The Giga-Minimc With Lfpt
Installing the Giga-MiniMc with LFPT The Giga-MiniMc with LFPT installs in an IMC Networks PowerTray/18 or can be used as a standalone media converter. As a standalone, the Giga-MiniMc with LFPT uses a universal external switching power cube with 100 – 240 ±10% VAC input and... -
Page 5: Din Rail Mounting
The Giga-MiniMc with LFPT can be mounted with two DIN Rail clips, a hardware option available through IMC Networks. The DIN Rail clips include screws to allow installation onto a DIN Rail. Install the screws into DIN Rail clips, which should be mounted perpendicular to the DIN Rail. -
Page 6: Led Operation
LED Operation Each Giga-MiniMc with LFPT includes two LEDs, located on the RJ-45 connector. LED functions are as follows (above illustration is representative): FX LNK/ACT Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. Off when a fault is detected. -
Page 7: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 8: Specifications
Specifications Ethernet Connections - LFPT Port 10/100/1000 BaseT, Auto Negotiation, Auto-Cross, Flow Control, 1,536 MTU, Full Line-Rate Forwarding. Ethernet Connections - SFP Fiber Port 10/100/1000 BaseT, Auto Negotiation, Auto-Cross, Flow Control, 10,240 MTU, Full Line-Rate Forwarding. AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A max. Operating Temperature +32°F to +122°F (0°C to +50°C) Storage Temperature... -
Page 9: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. Giga-MiniMc with LFPT is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
