Data Protector service tree

Data Protector is represented as a service tree with each cell an icon. The tree is
updated by SNMP traps sent by the notification feature in Data Protector and by
messages from Data Protector Integration monitors. Figure 4 illustrates the HP_Data
Protector service tree consisting of a sub-tree for the Cell Manager:nt8446
Data Protector Cell Manager.

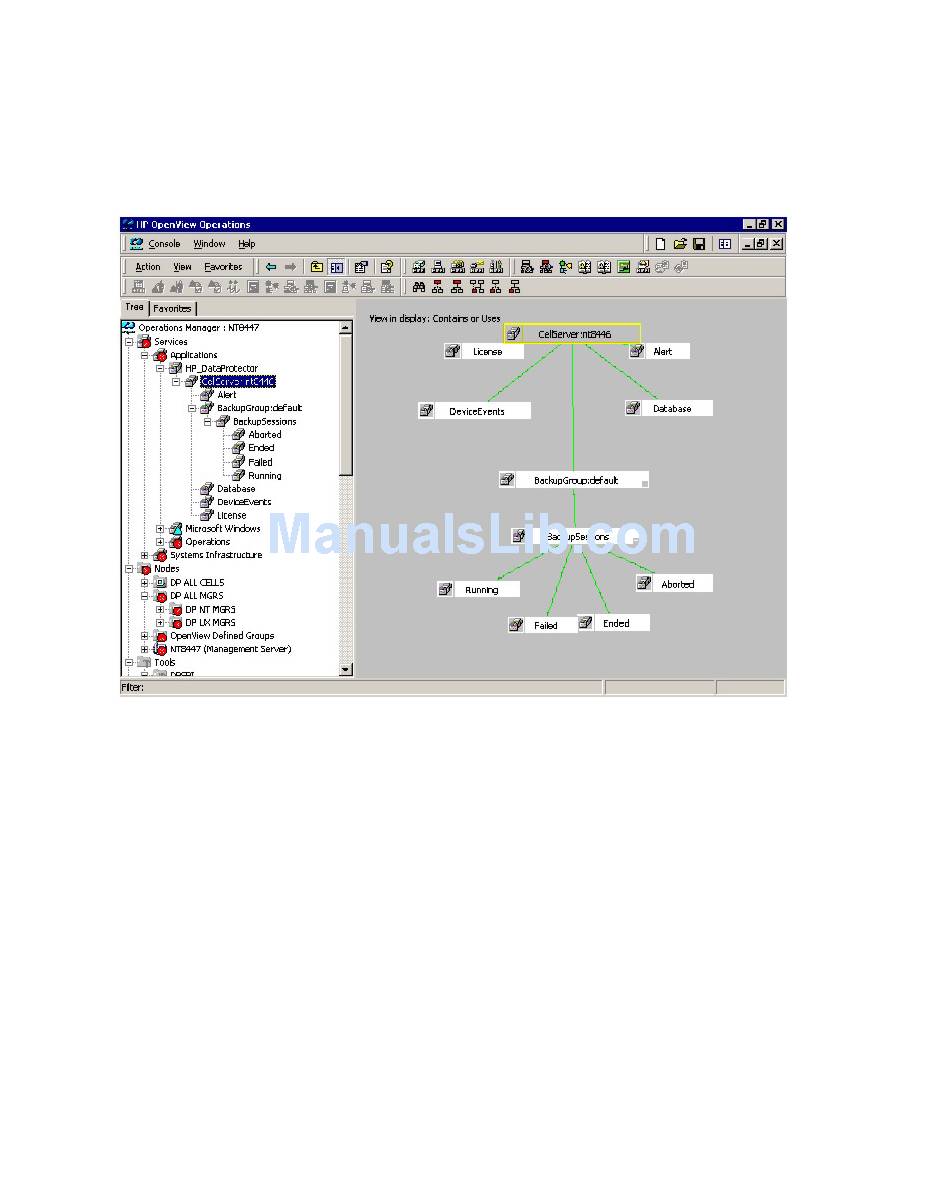

Figure 4 The Data Protector service tree
.
The service tree for Data Protector Cell Managers is automatically created after the
Add DP Cell tool is run and the DP_Service_Discovery policy is automatically
deployed to the Cell Manager.
On installing the Data Protector Integration, the following service tree type definition
is loaded:
