Operations Manager-Data Protector Integration Architecture - HP Data Protector A.06.11 Integration Manual

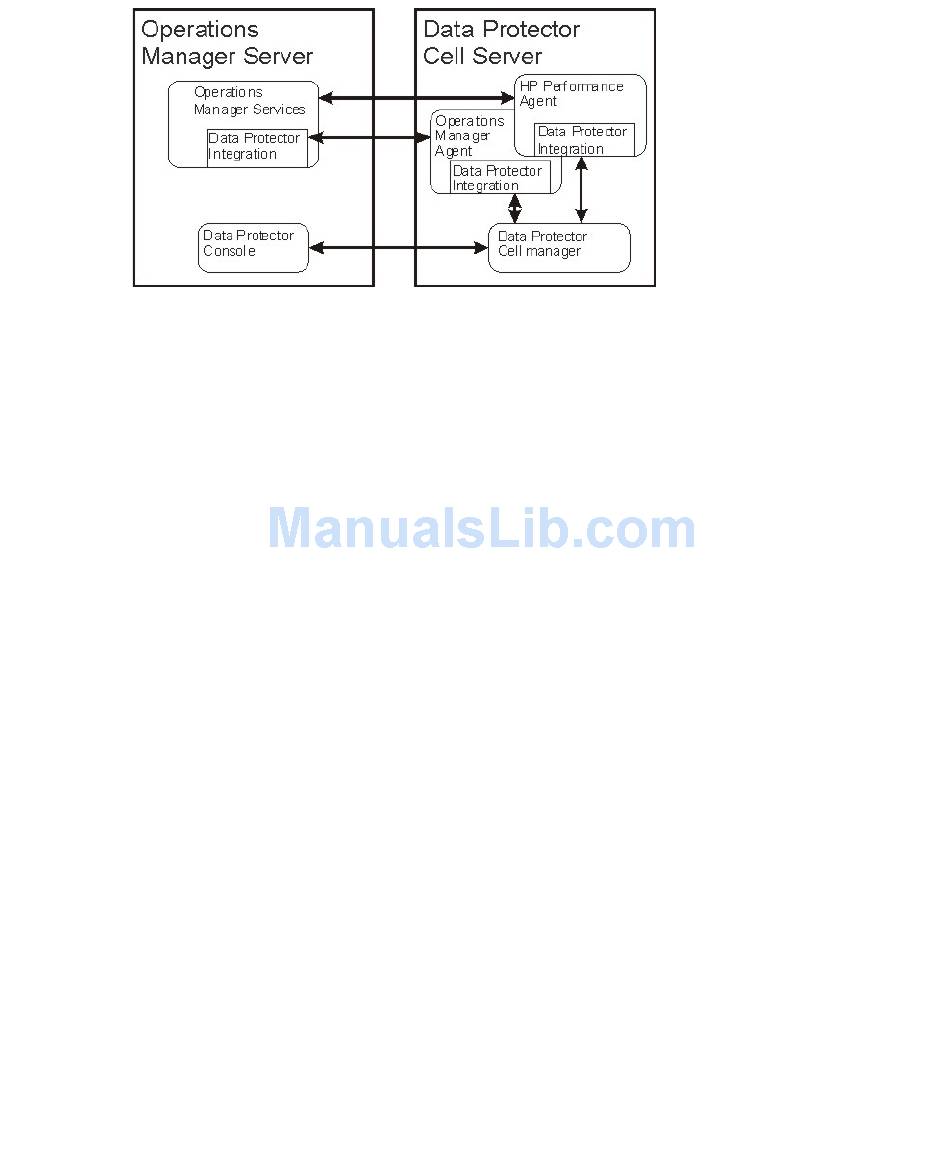

Figure 1 Operations Manager–Data Protector Integration architecture
.
The Operations Manager policies monitor:
• Data Protector vital Cell Manager processes
• Data Protector log files
• Data Protector events through SNMP traps
They are configured on the Operations Manager Agent on a Data Protector Cell
Manager. The Agent sends messages to the Operations Manager Server for display
in the message browser only if appropriate conditions match. This minimizes network
traffic between a Data Protector Cell Manager and the Operations Manager Server.
The integration policies, such as policies to monitor Data Protector logfiles, SNMP
traps, database and processes, define the conditions on which the Operations
Manager Agent will send messages to the Operations Manager Server for display
in Operations Manager message browser.
Integration guide for HP Operations Manager for Windows 21
