4. Now both programs can follow the same instructions. Click the + button.
The Add Control Surface dialog opens.
5. Select Mackie Control from the Control Surface Type drop-down menu.
6. For the Input and Output Connection drop-down menus, select the MIDI send
and receive ports.
These will be the same port, so if Soundtrack Pro uses ports 5–8, the first
controller sends and receives on port 5.
7. Click OK to close the Add Control Surfaces dialog.
8. Repeat steps 4–7 for each additional Artist Series control surface in your
network.
9. in Final Cut Pro, click the OK button. In Soundtrack Pro, click the Close but-
ton at the top-left to close the Preferences.
The Artist Series devices connect and update with new track information.
Your Artist Series device should now be controlling your application. If not:
• Make sure Final Cut Pro or Soundtrack Pro is the front-most application (i.e.,
the one receiving keystrokes and mouse clicks). The Artist Series devices
control only the front-most application.
• Check that all steps in Setting Up EuCon for Mackie Control on page 15 and
in this section have been performed correctly, and reboot your Mac.
• Make sure the Euphonix MIDI device in Applications->Utilities->Audio MIDI
Setup is blue (active) and not gray (inactive). If inactive, select it, click Re-
move Device, and click Rescan MIDI.

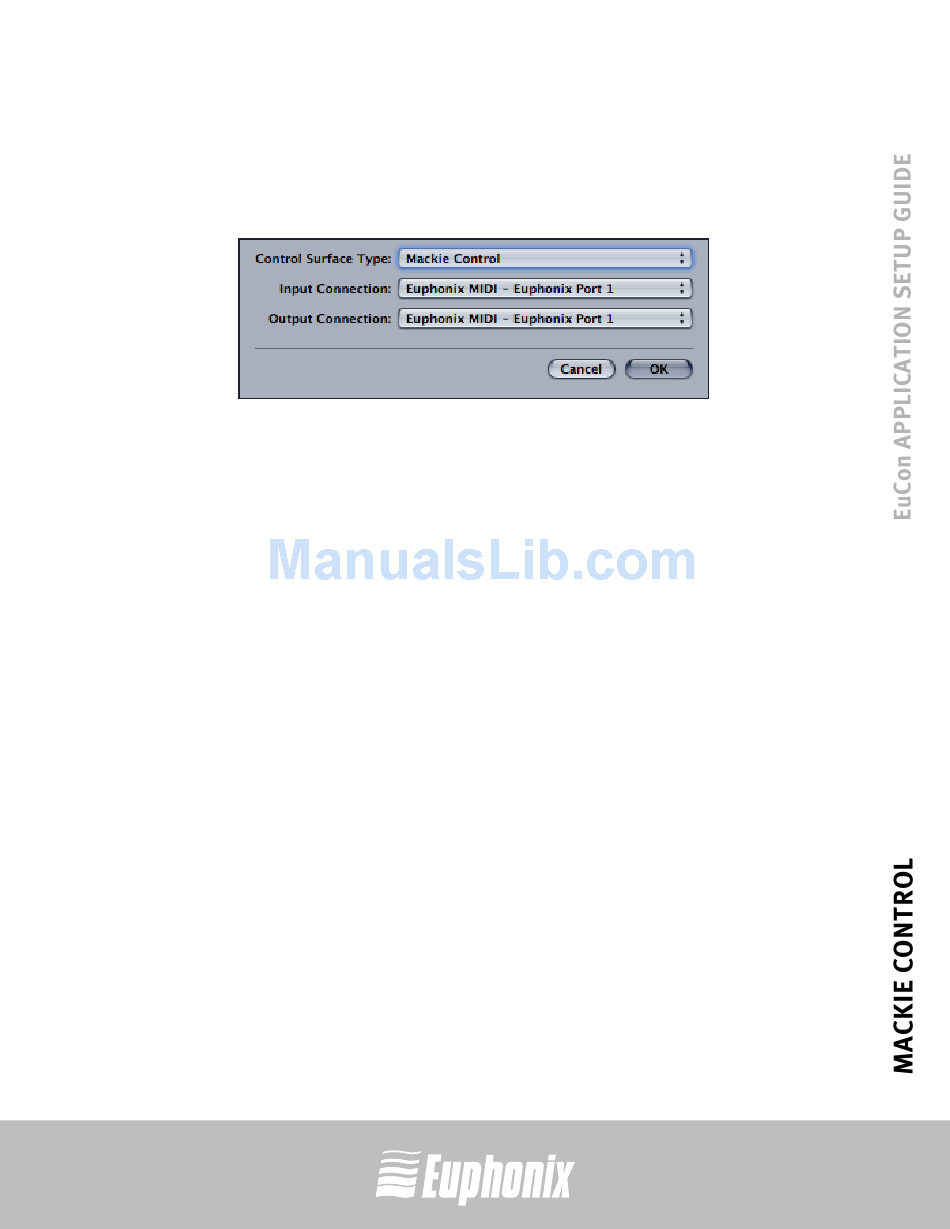

Figure 5-5 Add Control Surface dialog
