4.0 Video Signal Input Requirements
4.1
Video Input Lines
The Video Signal Connector consists of fifteen (15) positions wired numerically and supplied
attached to the Monitor as a chassis mounted connector per definitions listed in Table 2. The
"NC" positions of this connector are not used for any purpose.
Table 2. Video Signal Connector – Pin Number Assignments
The Video Signal Connector that connects to the customer's equipment is a female 15-pin
connector in a high density 9-pin D-Shell housing. Pin number assignments are defined in Table
2, and physical layout as seen by the interface cable from user logic is shown in Table 4.

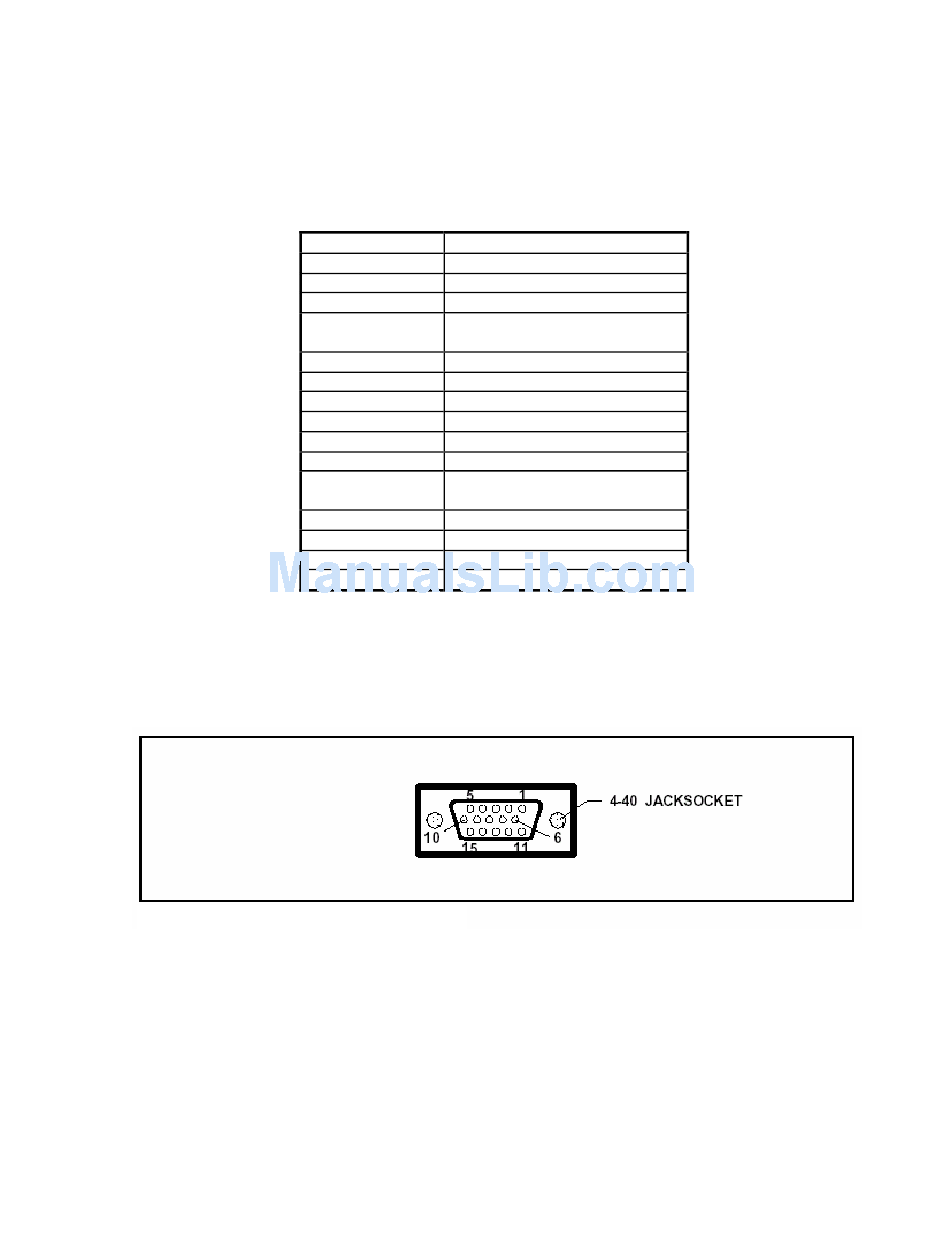

Figure 4. Video Signal Connector Illustration
4.2
Signal Functions
4.2.1
Title: Product Specification: LC12 High-Bright Monitor
Document Number: 023-0284-01
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Video Parameters
As seen by the source, input resistance is 75-ohm, ±10%; input capacitance at (150
MHZ) <10-pF.
Coaxial cable is provided for video signal line(s) to match impedances and for EMI
attenuation. The video input signal will have a range of 0-mv to 714-mv (maximum)
Signal Name
Red Video
Green Video
Blue Video
Monitor Sense Line 3
(connected to Pin 10)
NC
Red video return
Green video return
Blue video return
NC
Signal Ground Reference
Monitor Sense Line 1
(connected to Pin 10)
Monitor Sense Line 2 (NC)
Horizontal Sync Input
Vertical Sync Input
NC
