Planar LC08 Specifications

Planar is the western world's
largest and most experienced
flat-panel display company,
with over 20 years' expertise in
flat-panel technology. We
provide innovative,
dependable display solutions
for demanding applications in
industrial, medical, commercial,
and consumer markets. Our
products span a broad range,
from ruggedized displays used
in ATMs, kiosks and gas pumps
to award-winning desktop
monitors, from diagnostic
medical imaging monitors to
LCD TVs and high-performance
large-screen displays.
For a proven, cost-effective
solution that will help you get
to market faster, choose a
Planar standard AMLCD
embedded solution.These
quick-turn solutions help you
minimize development time
and costs while you maximize
supply chain efficiency.
© 2004, Planar Systems, Inc. Planar is a trademark
of Planar Systems, Inc. Technical information in
this document is subject to change without notice.
Please consult your account manager for up to date
and/or custom configurations.
www.planar.com

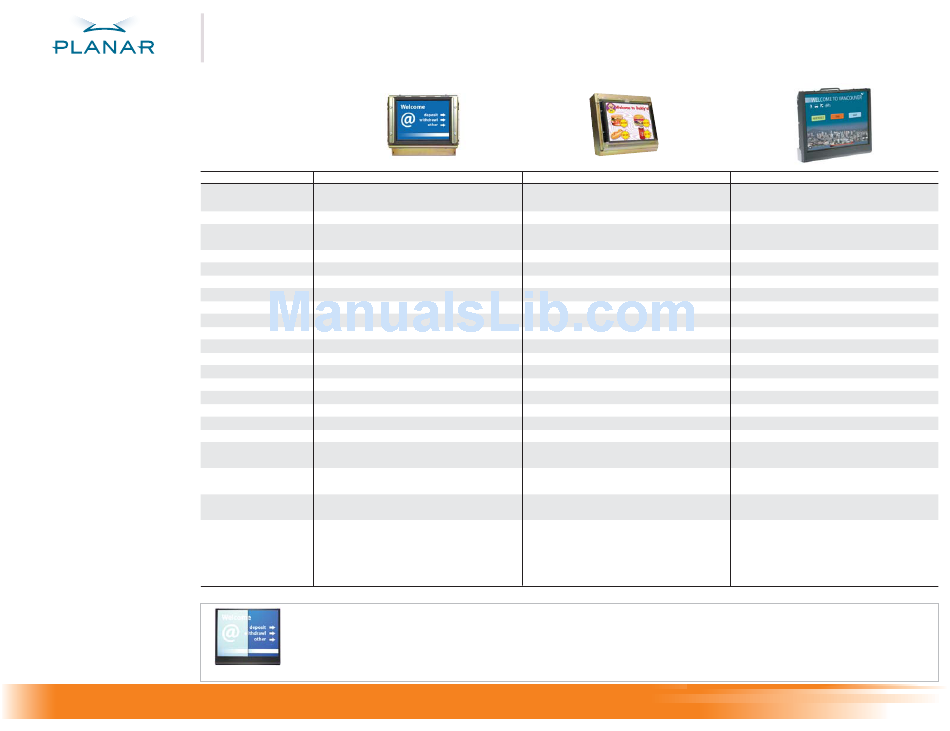

PLANAR AMLCD MONITORS
Display Innovation You Depend On
SPECIFICATIONS
Planar Part Number 997-2566-00
Full Color TFT AMLCD
Display Type
Video Modes SVGA (800 x 600), VGA
Image Area 170.9mm x 129.6mm (8.4-inch diagonal)
Video Input Analog; 15-pin D-sub connector
Luminance 1000 cd/m 2
(typical)
Luminance 70% min. (compared to center brightness)
(uniformity)
250:1
Contrast Ratio (typical)
Dimming Range -
Viewing angle 100° Horizontal, +20°/-45° Vertical
(typical)
Response Time 100msec max. (rise + fall)
(typical)
Power Consumption 40W
(typical)
Supply Voltage & Current +12VDC
(typical)
Dimensions 9.6" x 7.1" x 4.3"
(WxHxD)
5.7 lbs (2.5 kg)
Weight
Operating Temperature 0° to +60° C
Storage & Transport Temperature -20° to +60° C
Humidity < 95% RH non-condensing
(operating)
Regulatory and Safety FCC Class A, CE, UL/cUL, TUV
Cooling kit Internal cooling w/thermostat & cowling
Power Supply -
Vandal Glass and Enhancements Custom touch screens & Vandal Glass w/Contrast
Enhancement Technology available
Contrast Enhancement Technology
Features:
• Rugged vandal glass with integrated Contrast
Enhancement Technology (CET): protects you
and your display system from impact and con-
taminants
• Increases display contrast ratio by as much as
75% in high ambient light and high glare,
(before) (after)
Effective November 15, 2004
LC08
997-2584-00
Full Color TFT AMLCD
SVGA (800 x 600) native.
Supports VGA and XGA as well.
246 mm x 184.5 mm (12.1-inch diagonal)
Analog; 15-pin D-sub connector
>1500 cd/m
40% min. (compared to center brightness)
300:1
-
120° Horizontal, +45°/-55° Vertical
45msec (rise + fall)
54 W
+12VDC
(245mm x 180mm x 110mm) 13.4" x 12.2" x 4.1"
10.7 lbs (5.0 kg)
0° to +60° C
-20° to +60° C
< 95% RH non-condensing
FCC Class A, CE, UL/cUL, TUV
Internal cooling w/cowling
-
Custom touch screens & Vandal Glass w/Contrast
Enhancement Technology available
improving readability and user satisfaction
(CET)
• Reduces need for a brighter backlight lamp,
increasing overall system reliability and reducing
maintenance costs
• Improves display system's thermal performance
in direct sunlight
• Based on patent-pending technology invented
by Planar's optics experts
LC12
997-2799-00 (with dimming sensor)
Full Color TFT AMLCD
XGA (1024 x 768), SVGA, VGA
304mm x 228mm (15-inch diagonal)
Analog; 15-pin D-sub connector. VGA cable included.
2 1000 cd/m
78% min.
350:1
4:1 (typical)
160° Horizontal/ 109° Vertical
16msec (rise + fall)
48 W
+12VDC
(340mm x 310mm x 105mm) 13.1" x 10.3" x 3.1"
6.7 lbs (3.0 kg)
0 to +50 C
-20 to +60 C
< 85% RH non-condensing
CE, UL/cUL, TUV
FCC Class B
Internal fan w/thermostat.
Optional 3-fan cooling kit for solar loading
Optional 80W power supply.
Available with US or European power cord.
Vandal Glass w/Contrast Enhancement
Technology available (CET)
Optional 3M Capacitive or 3M NFI touch screen
models available. The LC1502R with NFI comes
standard with a cooling kit.
Dimensions
(15" version)
333 x 262 x 7.3mm
(13.1"x10.3"x.29")
Weight
(15" version)
3.0 lbs (1.4 kg) typical.
(Custom sizes avail. Consult Factory.)
Contrast Ratio
(15" version)
With Planar's vandal glass with CET mounted in
front of the LC15 the
(typically 1000 nit brightness)
resulting contrast ratios (CR) will be as follows:
Display Innovation You Depend On
LC15
2
(compared to center brightness at full luminance)
(333mm x 262mm x 78mm)
Dark ambient: CR=420 typical
7800fL specular ambient: CR=41.4 typical
2000 fC diffuse ambient: CR=22.2 typical
Both specular and diffuse: CR=16.2 typical
(For the purposes of mechanical design, use 1.6 gr./cm2,
0.02 lb/in2 as the mass per unit area.)
