Pioneer CD-HF1 Owner's Manual page 5

1. This product
2. Double-sided tape
3. Passenger seat

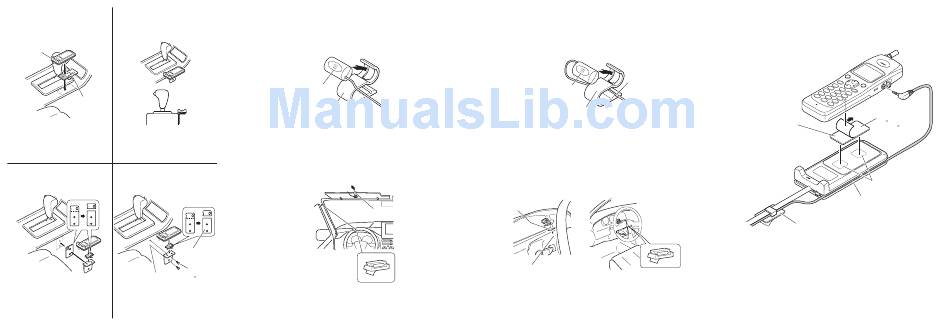

Fig. 2 Fig. 3
Abb. 2 Abb. 3
Afb. 2 Afb. 3
2. Double-sided tape
2. Double-sided tape
4. Not used
3. Passenger seat 3. Passenger seat
5. Screws
6. Drill holes 2 – 2.5 mm
(4 12 mm)
in diameter.
Fig. 4 Fig. 5
Abb. 4 Abb. 5
Afb. 4 Afb. 5
7. Microphone
8. Mic clip
Fig. 6
Abb. 6
Afb. 6
8. Mic clip
9. Clamper (white)
Fig. 7
Abb. 7
Afb. 7
10. Fit the mic cord in the groove.
7. Microphone
8. Mic clip
11. Double-sided tape
12. Install the clip on the steering
9. Clamper (white)
column toward the back.
13. So that cellular phone will
be firmly secured, affix a
metal sheet to align with the
position of the magnets.
Fig. 8
Abb. 8
Afb. 8
15. Fit the connecting cord in the
groove.
17. Clamper (black)
Clamp both cords together with
the connecting cord on the inside
and the unit cord on the outside.
Fig. 9
Abb. 9
Afb. 9
16. Metal sheet
There are two sizes
of metal sheet; large
(60 30 mm) and
small (40 20 mm).
Choose the size to
match your cellular
phone.
14. Magnets
Fig. 10
Abb. 10
Afb. 10
