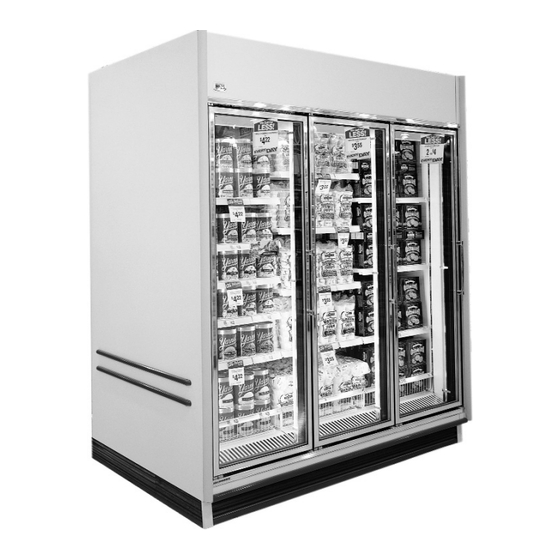

- Page 1 FROZEN FOOD/ ICE CREAM C A S E S M O D E L : K R Z H INSTALLATION & OPERATION HANDBOOK P058479G Rev 10 11/05 COMPONENT...
- Page 3 We are interested in your suggestions for improvement both in case design and in this handbook. Please call/write to: Hill PHOENIX Marketing Services Department 1925 Ruffin Mill Rd. Colonial Heights, VA 23834...
-
Page 5: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION – PAGES 2-4 General information, first step recommendations and case dimensional drawings. THE USE OF CASTERS – PAGE 5 Cases roll on casters–general use and castor removal. LINE-UP & TRIM OUT – PAGES 6-7 A sixteen step procedure for initial case lineup and final trimming with illustrations. REFRIGERATION PIPING –... -
Page 6: General Information - Pages
15 days of receipt of equipment. LOST ITEMS: This equipment has been carefully inspected to insure the highest level of quality. Any claim for lost items must be made to Hill PHOENIX within 48 hours of receipt of equipment. TECHNICAL SUPPORT: If any technical questions arise regarding a refrigerated display case contact our Customer Service Department in Richmond at 1-804-526-4455. - Page 7 [22.0 cm] 2 13/16 in [7.1 cm] 42 7/16 in [107.8 cm] MODEL 44 5/8 in [113.3 cm] KRZH EXTERNAL PLUMBING 19 5/8 in. [49.8 cm.] {2-DOOR} 34 5/8 in. [87.9 cm.] {3-DOOR} 11 7/16 in [29.1 cm] 49 5/8 in. [126.0 cm.] {4-DOOR} 2 13/16 in [7.1 cm]...
- Page 8 3 DOOR CASE 36 1/2" 27 5/8" 57 5/8" 89 1/4" BASEHORSE FRONT OF CASE LOCATION FOR MODEL 4" KRZH 4 DOOR CASE 36 1/2" 27 5/8" 62 1/8" 87 5/8" 119 1/4" FRONT OF CASE 4" 5 DOOR CASE 36 1/2"...
-
Page 9: The Use Of Casters
CASES MOVE ON CASTERS FOR EASIER INSTALLATION KATS cases are manufactured and shipped to stores Casters not only speed up the process, but they also with casters installed on the base frame to make the reduce the chance of damage from raising and low- job of moving cases easier for everyone involved with ering cases with ”J”... -
Page 10: Line-Up & Trim Out - Pages
LINE UP & TRIM OUT Now that cases have been positioned and leveled, you may proceed to trim-out case lineup. Trim parts have been Consult With General Contractor designed to be applied easily with only a small number of Ask the general contractor if there have fasteners required. - Page 11 CAULK CAULK Remove Shipping Accessories Bolt Cases Together Using Bolt Add Sealant to Top Case Joint. From Case. Add Sealant. Holes Provided Remove anything from case that may Push cases tightly together. Bolt Once cases are pushed tightly together interfere with case joining (eg. ship- cases together through the four holes and bolted run a bead of sealant ping braces).
-
Page 12: Refrigeration Piping
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS SUCTION LINE 7/8", LIQUID LINE - 1/2" AVAILABLE SHELF SIZES: WIRE SHELVES 16", 18", 20", 22" & 23 1/2" SOLID SHELVES 18", 20", 22", 24" & 27" MODEL KRZH REFRIGERATION ACCESS REMOVE SHIPPING BLOCKS TOP ACCESS HATCH... -
Page 13: Line-Up & Trim Out
The kickplate is shipped loose with the center of the cases for convenient access. case for field installation, therefore you should The drain outlet on the KRZH is molded out of have open access to the drain line area. If the ABS material. -
Page 14: Electrical Hookup And Wiring Diagrams - Pages
120 in. [304.8 cm.] {4-DOOR} 150 in. [381.0 cm.] {5-DOOR} NOTES: * STUB-UP AREA ** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS MODEL KRZH WIRING NUMBERS AND COLORS ELECTRICAL ACCESS HOLE COMPONENT WIRE NUMBER COLOR CODING (Drilled through rear of case) - Page 15 BALLASTS ACCESS The electronic ballasts that operate the vertical prism door lights are located in the door frame for both Ardco ® and Anthony ® ® DOOR FRAME ARDCO PRISM LIGHT 1. BALLAST COVER SCREWS 2. BALLAST COVER 3. BALLAST CARRIAGE SCREWS (2) ARE LOCATED BEHIND BALLAST COVER.
- Page 16 WIRING DIAGRAMS- MODEL KRZH 2 DOOR...
- Page 17 WIRING DIAGRAMS- MODEL KRZH 3 DOOR...
- Page 18 WIRING DIAGRAMS- MODEL KRZH 4 DOOR...
- Page 19 WIRING DIAGRAMS- MODEL KRZH 5 DOOR...
-
Page 20: Wiring Diagrams
WIRING DIAGRAMS- TERMINAL BLOCK... - Page 21 WIRING DIAGRAMS-...
-
Page 22: Control Setting Guideline
Glass Door Reach-in Frozen Food/Ice Cream Merchandiser KRZH - 2, 3, 4 & 5-door reach in freezer Electrical Data Anti-Condensate Standard Fans Heaters Drain Pan Heaters 208 Volts 240 Volts 120 Volts 120 Volts Fans per Case Model Amps Watts... -
Page 23: Defrost And Temperature Control
• TEMPERATURE CONTROL SENSOR BULB LOCATION COIL (UNDER ACCESS HATCH ON EXITING AIR SIDE OF COIL). DISCHARGE AIR PROBE LOCATION (BEHIND 3 1/2” PLUG BUTTON IN TOP FLUE). HOT GAS DEFROST TERMINATION CONTROL SENSOR BULB AND PROBE LOCATION. MODEL KRZH THERMOSTAT ENCLOSURE... -
Page 24: Product Loading
Please keep products within the load impinges on the air flow pattern. limit line shown on the diagram. DISCHARGE....1 LOAD LIMIT....2 AIR FLOW....3 RETURN AIR GRILL...4 MODEL KRZH... -
Page 25: Use And Maintenance - Pages
MAINTENANCE CASE CLEANING Case is designed to facilitate cleaning. There is no The coil and fan plenum are located outside the mechanical or electrical controls in the product area to product area to keep food fluids from entering, diminish downtime, and reduce shrink. If cleaning is required, hamper routine cleaning. - Page 26 1. Unplug the fan motor, easily accessible out side the plenum 2. Remove two fasteners, then lift out the entire fan basket Model KRZH 2 Door 3 Door 4 Door 5 Door Fans Blade...
-
Page 27: Parts Ordering - Pages
PARTS ORDERING Procedure 1. Contact the Service Parts Department Hill PHOENIX 1925 Ruffin Mill Road Colonial Heights, Virginia 23834 Tel: 800-283-1109 Fax: 804-526-3897 2. Provide the following information about the part you are ordering: • Model number and serial number of the case on which the part is used. - Page 28 PARTS ORDERING MODEL KRZH...
- Page 29 Model KRZH Location Part Descriptions Number Kickplate, Storm Grey Color Band, Painted Custom Color or Stainless Deck Pan, Painted, Unpainted Front Baffle, Aluminum Honeycomb, 1”x 4”x 48” Honeycomb Retainer, Painted Upper Rear Baffle, Center or End Bumper Trim, Polymer Custom Color...
- Page 30 APPENDIX - A CLEANING INSTRUCTIONS FOR ANTIFOG COATING Antifog Coating Cleaning Instructions (ANTIFOG B): Materials CAUTION: 1. Only use deionized or distilled water with 2% cleaning solution (P/N 05-14700-0001) to clean the antifog coating. Do not apply cleaning solution full strength! Do not use commercial glass cleaners containing ammonia or alcohol.
-
Page 31: Use And Maintenance
Judged to be Defective in Material or Workmanship States Our Entire Liability Whether Based on Tort, Contract or Warranty. We Neither Assume Nor Authorize Any Other Person to Assume for Us Any Other Liability in Connection with Our Product. MAIL CLAIM TO: Hill PHOENIX Hill PHOENIX Display Merchandisers Refrigeration Systems &... - Page 32 1925 Ruffin Mill Road, Colonial Heights, VA 23834 Due to our commitment to continuous improvement all specifications are subject to change without notice. Hill PHOENIX is a Sustaining Member of the American Society of Quality. Visit our web site at www.hillphoenix.com...
