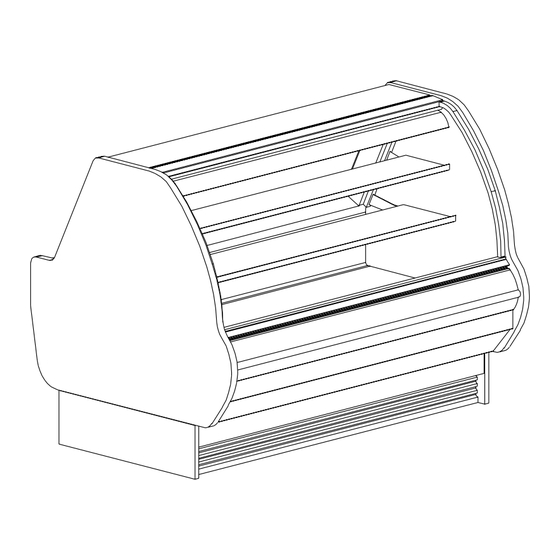

- Page 1 DELI C A S E S M O D E L : O S A A INSTALLATION & OPERATION HANDBOOK P061773M 9/03...
- Page 3 We are interested in your suggestions for improvement both in case design and in this handbook. Please call/write to: Hill PHOENIX Marketing Services Department 1925 Ruffin Mill Rd. Colonial Heights, VA 23834...
-
Page 5: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION – PAGES 2 - 4 General information, first step recommendations and case dimensional drawings. THE USE OF CASTERS – PAGE 5 Cases roll on casters–general use and castor removal. LINE-UP – PAGES 6 - 7 A ten step procedure for initial case lineup with illustrations. -
Page 6: General Information - Pages
15 days of receipt of equipment. LOST ITEMS: This equipment has been carefully inspected to insure the highest level of quality. Any claim for lost items must be made to Hill PHOENIX within 48 hours of receipt of equipment. TECHNICAL SUPPORT: If any technical questions arise regarding a refrigerated display case contact our Customer Service Department in Richmond at 1-804-526-4455. - Page 7 (optional) 34 9/16 in [87.7 cm] 1 1/2" PVC DRAIN CONNECTION FRONT OF CASE 72 in [182.9 cm] {6' case} 27 1/4 in [69.2 cm] MODEL OSAA-6’ CONDENSING UNIT 38 5/16 in [97.3 cm] 1 1/2 in [3.8 cm] {END}...
-
Page 8: General Information
GENERAL INFORMATION 4" 31 11/16" BASEHORSE 6' CASE LOCATIONS FOR MODEL OSAA 71 1/4" FRONT OF CASE... -
Page 9: The Use Of Casters
CASES MOVE ON CASTERS FOR EASIER INSTALLATION ORIGIN 2 cases are manufactured and shipped to stores with casters installed on the base frame to make the job of moving cases easier for everyone involved with the manufacturing, shipping and instal- lation process. -
Page 10: Line-Up - Pages
LINE UP Consult With General Contractor Ask the general contractor if there have been changes in the building dimensions since the print you are using was issued. Also, ask the points of reference from which you should take dimensions to locate the cases. - Page 11 Tighten until all margins are equal; do not over tighten. Ask about our case installation video available by request through your local Hill PHOENIX Sales or Field Service Representative. Spanish version available. Remove Shipping Accessories From Case. Add Sealant.
-
Page 12: Trim-Out - Pages
TRIM OUT Now that cases have been positioned and leveled, you may proceed to trim-out case lineup. Trim parts have been designed to be applied easily with only a small number of fasteners required. Most external parts are adjustable to achieve almost invisible, snug-fitting joints and a high level of excellence in... - Page 13 Close joints of front panel. The panel is slotted on the bottom to allow left or right adjustment as required. TOP SILL JOINT TOP SILL GLASS PRESSURE Install top sill joint. The top sill joints are shipped loose in the case. The front lip of the joint fits into the crevice between the top sill and the glass pressure bar.
-
Page 14: Refrigeration Piping
Refrigeration components OSAA-6’ are easily accessible in the tank and underneath the case. The expansion valve and suction line 1/4” access valve are both located in the left hand front side of the tank and are accessible without lifting the fan plenum. -
Page 15: Component Definitions
COMPONENT DEFINITIONS Access Valve - Access port on the evaporator that allows service personnel to check system pressure. Accumulator - A device installed on the suction line that is used to boil off small amounts of liquid refrig- erant so liquid does not reach the compressor. Compressor - An electrically driven piston pump that pumps vapor refrigerant from a low pressure level to a higher pressure level. -
Page 16: Plumbing
[124.6 cm] FRONT OF CASE 72 in [182.9 cm] {6' case} NOTES: ** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS MODEL OSAA LIFT UP FROM “J” RAIL AND PULL OUT KICKPLATE “J” RAIL The kickplate is shipped loose with the... -
Page 17: Electrical Hookup, Wiring Diagrams, And Control Settings - Pages
ELECTRICAL HOOKUP Electrical hookups for the OSAA are made to a junction box located underneath the case on the bottom left hand front. The light ballasts for the case are located under the rear sill behind a removable access cover as shown below. - Page 18 Display Refresh Rate [1 to 99 sec.] Compressor Defrost Status Status Status F (55 C) to HL] [LL to 99 F to 68 F (0 C to 20 F to 41 F/-30 C to 5 to 20 MODEL OSAA-6’ Button Down Button Factory Settings OSAA-6’...
- Page 19 Error Code Alarm output on compressor Indicates an open or runs according to the sensor shorted temperature failure mode selected (para- sensor. Cycle Power meter sf) to reset control. Alarm output on defrost Indicates an open or cycle is controlled by para- shorted evaporator meters di (defrost initiation) sensor.
- Page 20 WIRING DIAGRAMS- MODEL OSAA-6’...
-
Page 21: Case Operation
American Style Self-Contained Curved Glass Service Deli Merchandiser OSAA - 6’ System Requirements Model Volts Wire OSAA 6’ 2 wire + ground Electrical Data Standard Fans 120 Volts Fans per Case Model Amps OSAA 6’ 1.02 Guidelines & Control Settings... -
Page 22: Defrost And Temperature Control
DEFROST These cases are equipped with Electric Defrost. The sensor bulb and probe for electric defrost termination and the sensor bulb for temperature control are located behind the front baffle at the location shown in diagram 1 below. The defrost termination control thermo- stat and the temperature control thermostat are located under the rear sill behind an easily removable cover, as shown in diagram 2. -
Page 23: Air Flow And Product Loading
Overloading will cause malfunction and the loss of proper temperature levels, particular- ly when discharge and return air sections are covered. Please keep products within the load limit lines shown on the diagram. DISCHARGE...1 LOAD LIMIT...2 AIR FLOW...3 RETURN AIR GRILL...4 MODEL OSAA... -
Page 24: Use And Maintenance - Pages
CASE CLEANING Case is designed to facilitate cleaning. There is a wide radius formed on the front and back of the inside bottom that helps accelerate liquid flow and eliminates difficult-to- clean sharp corners. All surfaces pitch to a deep-drawn drain trough that angles toward the front and center of case where the waste outlet is located for easy access. - Page 25 1. Unplug the fan motor, easily accessible out side the plenum 2. Remove three fasteners, then lift out the entire fan basket MODEL OSAA-6’ Model OSAA 6’ Fans Blade Pitch...
-
Page 26: Parts Ordering - Pages
PARTS ORDERING MODEL OSAA... - Page 27 Location Part Descriptions Number Kickplate, Storm Grey Master Bumper, Featherstone, Smoke, White, French Vanilla, Black Lower Front Panel, Painted or Stainless Front Glass, Lift-Up Thermopane Deck Pan, Painted, Unpainted, Stainless Plenum Cover Front Baffle, Aluminum, Painted White, Custom Color, or Stainless Nose Bumper, Custom Color Lower Rear Baffle, Painted White, Custom Color, or Stainless Shelf Standard, Specify standard or Vieler Shelving...
-
Page 28: Parts Ordering
(See illustrations on page 3). 3. If parts are to be returned for credit, ask the Parts Department to furnish you with a Return Materials Authorization Number. Hill PHOENIX 1925 Ruffin Mill Road Colonial Heights, Virginia 23834 Tel: 800-283-1109... -
Page 29: Notes - Pages
NOTES... - Page 30 NOTES...
-
Page 31: Use And Maintenance
Judged to be Defective in Material or Workmanship States Our Entire Liability Whether Based on Tort, Contract or Warranty. We Neither Assume Nor Authorize Any Other Person to Assume for Us Any Other Liability in Connection with Our Product. MAIL CLAIM TO: Hill PHOENIX Display Merchandisers 1925 Ruffin Mill Road Colonial Heights, VA 23834... - Page 32 Due to our commitment to continuous improvement all specifications are subject to change without notice. ASH3090 Warning 1925 Ruffin Mill Road, Colonial Heights, VA 23834 Hill PHOENIX is a Sustaining Member of the American Society of Quality. CRMA endorsed Visit our web site at www.hillphoenix.com...
