Summary of Contents for Hill Phoenix ORIGIN2 ONIZ
-
Page 1: Frozen Food

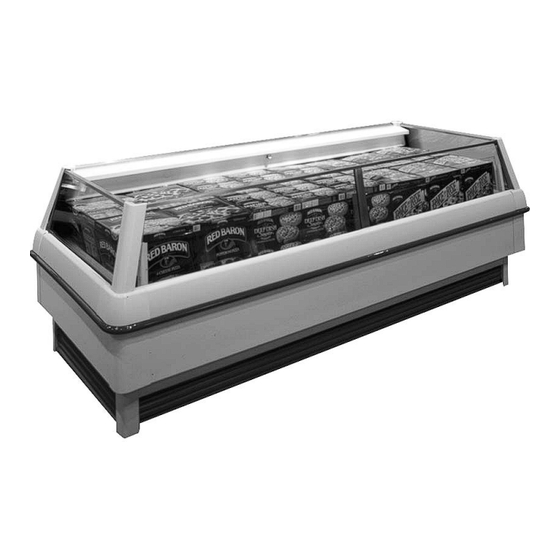

FROZEN FOOD/ ICE CREAM C A S E S M O D E L : O N I Z INSTALLATION & OPERATION HANDBOOK P055547D Rev. 10 11/05 COMPONENT... - Page 3 Welcome to the Hill PHOENIX display case family. We’re very pleased you joined us. This installation and operation handbook has been especially prepared for everyone involved with Hill PHOENIX display cases – own- ers, managers, installers and maintenance personnel. You’ll find this book different than traditional manuals. The most...
-
Page 5: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION – PAGES 3 - 6 General information, first step recommendations and case dimensional drawings. THE USE OF CASTERS – PAGE 7 LINE-UP – PAGES 8 - 9 An eleven step procedure for initial case lineup with illustrations. TRIM-OUT –... -
Page 7: General Information - Pages
15 days of receipt of equipment. LOST ITEMS: This equipment has been carefully inspected to insure the highest level of quality. Any claim for lost items must be made to Hill PHOENIX within 48 hours of receipt of equipment. TECHNICAL SUPPORT: If any technical questions arise regarding a refrigerated display case contact our Customer Service Department in Richmond at 1-804-526-4455. - Page 8 GENERAL INFORMATION Amp Plate & Serial Plate Location 13 3/8 in [34.0 cm] 34 15/16 in [88.8 cm] FRONT OF CASE 34 11/16 in [88.1 cm] 26 15/16 in [66.9 cm] COIL 5 in [12.7 cm] 6 7/16 in [16.3 cm]* 9 11/16 in [24.6 cm] 17 3/8 in [44.2 cm] 22 1/2 in [57.1 cm]...
- Page 9 SOLID PANEL Amp Plate & Serial Plate Location 12 7/16 in [31.5 cm] 13 5/8 in [34.6 cm] FRONT OF CASE 35 9/16 in 34 1/4 in [86.9 cm] [90.3 cm] COIL 18 3/8 in [46.7 cm] 5 in [12.7 cm] 6 7/16 in [16.3 cm]* 9 11/16 in [24.6 cm] 17 3/8 in [44.2 cm]...
-
Page 10: General Information
GENERAL INFORMATION 4" 19 1/2" 8' CASE BASE HORSE LOCATIONS FOR 54 1/8" MODELS 95 1/4" ONIZ FRONT OF CASE 4" 19 1/2" 12' CASE 49 1/2" 97 13/32" 143 1/4" FRONT OF CASE... -
Page 11: The Use Of Casters
MOVE ON CASTERS FOR EASIER INSTALLATION HILL PHOENIX cases are manufactured and shipped Casters not only speed up the process, but they also to stores with casters installed on the base frame to reduce the chance of damage from raising and low- make the job of moving cases easier for everyone ering cases with ”J”... -
Page 12: Line-Up - Pages
LINE UP BASE RAIL BASE RAIL Consult With General Contractor Snap Chalk Lines S n a p L i n e s B a s e R a i l Locations Ask the general contractor if there Mark floor where cases are to be Snap lines where base rails are posi- have been changes in the building located for the entire lineup. - Page 13 Tighten until all margins are equal; do not over tighten. Ask about our case installation video available by request through your local Hill PHOENIX Sales or Field Service Representative.
-
Page 14: Trim-Out - Pages
TRIM OUT Now that cases have been positioned and leveled, you may proceed to trim-out case lineup. Trim parts have been designed to be applied easily with only a small number of fasteners required. Most external parts are adjustable to achieve almost invisible, snug-fitting joints and a high level of excellence in fit and finish. - Page 15 FRONT PANEL SCREW KICKPLATE BRACKET SCREW LOWER FRONT PANEL “J” RAIL PEDESTAL Attach pedestals. Locate Attach lower front panel. Line up the Attach the “J” rail. Locate the “J” rail pedestals which are shipped loose lower front panel directly under the which is shipped loose with the case.
-
Page 16: Refrigeration Piping
REFRIGERATION PIPING Refrigeration components and the The expansion valve and other controls refrigeration outlet hole are located to provide are located on the left-hand side of the case the best access for installation and mainte- and are accessible without lifting the fan nance. -
Page 17: Plumbing
PLUMBING The drain outlet is located in the center The lower front panel and kickplate are of the case just below the fan plenum. The shipped loose with the case. If the kickplate has drain outlet is molded out of ABS material and already been installed, access to the drain area the “P”... -
Page 18: Electrical Hookup And Wiring Diagrams - Pages
ELECTRICAL HOOKUP All electrical hookups are made to a The raceway is designed to allow raceway located at the bottom front of the wiring to be run from case-to-case without case. Field connections can be made through the use of “greenfield” or other conduit. the bottom of the raceway. - Page 19 WIRING DIAGRAMS- MODEL ONIZ-6’...
- Page 20 WIRING DIAGRAMS- MODEL ONIZ-8’...
- Page 21 WIRING DIAGRAMS- MODEL ONIZ-10’...
- Page 22 WIRING DIAGRAMS- MODEL ONIZ-12’...
-
Page 23: Case Operation
CASE OPERATION Narrow Island Frozen Food/Ice Cream Merchandiser ONIZ - 6’, 8’, 10’ & 12’ Electrical Data High Efficiency Drain Standard Fans Fans Defrost Heaters Heaters 120 Volts 208 Volts 240 Volts 120 Volts 120 Volts Fans per Case Model Amps Watts Amps... -
Page 24: Defrost And Temperature Control
DEFROST TEMP CONTROL This case is equipped with either It is important to consult the control electric or hot gas defrost at the owners option. setting guidelines shown on page 19 before The temperature control and defrost termination setting defrost times. Further adjustments control thermostats are located in the electrical may be required depending on store condi- raceway as shown in diagram 1 below. -
Page 25: Airflow & Product Loading
AIR FLOW PRODUCT LOADING Overloading will cause malfunction and the Cases have been designed to provide maximum product capacity within the refriger- loss of proper temperature levels, particularly when discharge and return air sections are ated air curtain. It is important that you do not covered. -
Page 26: Use And Maintenance - Pages
MAINTENANCE CASE CLEANING The case is designed to facilitate cleaning. All surfaces pitch to a drain trough that angles toward the center of the case where the 2” waste outlet is located. The drain is positioned under the fan plenum and is accessible through an access cover. POSITIVE DRAIN OFF CLEANING PROCEDURES •... - Page 27 FANS The evaporator fans are equipped with 5 watt fan motors, 1550 RPM’s. The motor has a counter clockwise rotation when viewed from the shaft end. The fan blades are 7” in diameter and the blades are pitched according to the charts below. It is impor- tant that the blade pitch be maintained as speci- fied.
-
Page 28: Parts Ordering - Pages
PARTS ORDERING MODEL ONIZ... - Page 29 MODEL ONIZ Location Part Descriptions Number Kickplate, Storm Grey Master Bumper, Featherstone, Smoke, White, French Vanilla, Black Lower Front Panel, Painted Thermopane, Front Sill Glass Flue Glass Deck Pan, Painted, Unpainted Front Baffle, Painted Honeycomb Glass Cap, for Solid Panel and Glass Front Extensions Rear Baffle Nose Bumper, Polymer Custom Color Pedestal, Painted...
-
Page 30: Parts Ordering
PARTS ORDERING Procedure 1. Contact the Service Parts Department Hill PHOENIX 1925 Ruffin Mill Road Colonial Heights,Virginia 23834 Tel: 800-283-1109 Fax: 804-526-3897 2. Provide the following information about the part you are ordering: • Model number and serial number* of the case which the part is needed for. -
Page 31: Use And Maintenance
Judged to be Defective in Material or Workmanship States Our Entire Liability Whether Based on Tort, Contract or Warranty. We Neither Assume Nor Authorize Any Other Person to Assume for Us Any Other Liability in Connection with Our Product. MAIL CLAIM TO: Hill PHOENIX Hill PHOENIX Display Merchandisers Refrigeration Systems &... - Page 32 1925 Ruffin Mill Road, Colonial Heights, VA 23834 Due to our commitment to continuous improvement all specifications are subject to change without notice Hill PHOENIX is a Sustaining Member of the American Society of Quality Visit our web site at www.hillphoenix.com...
