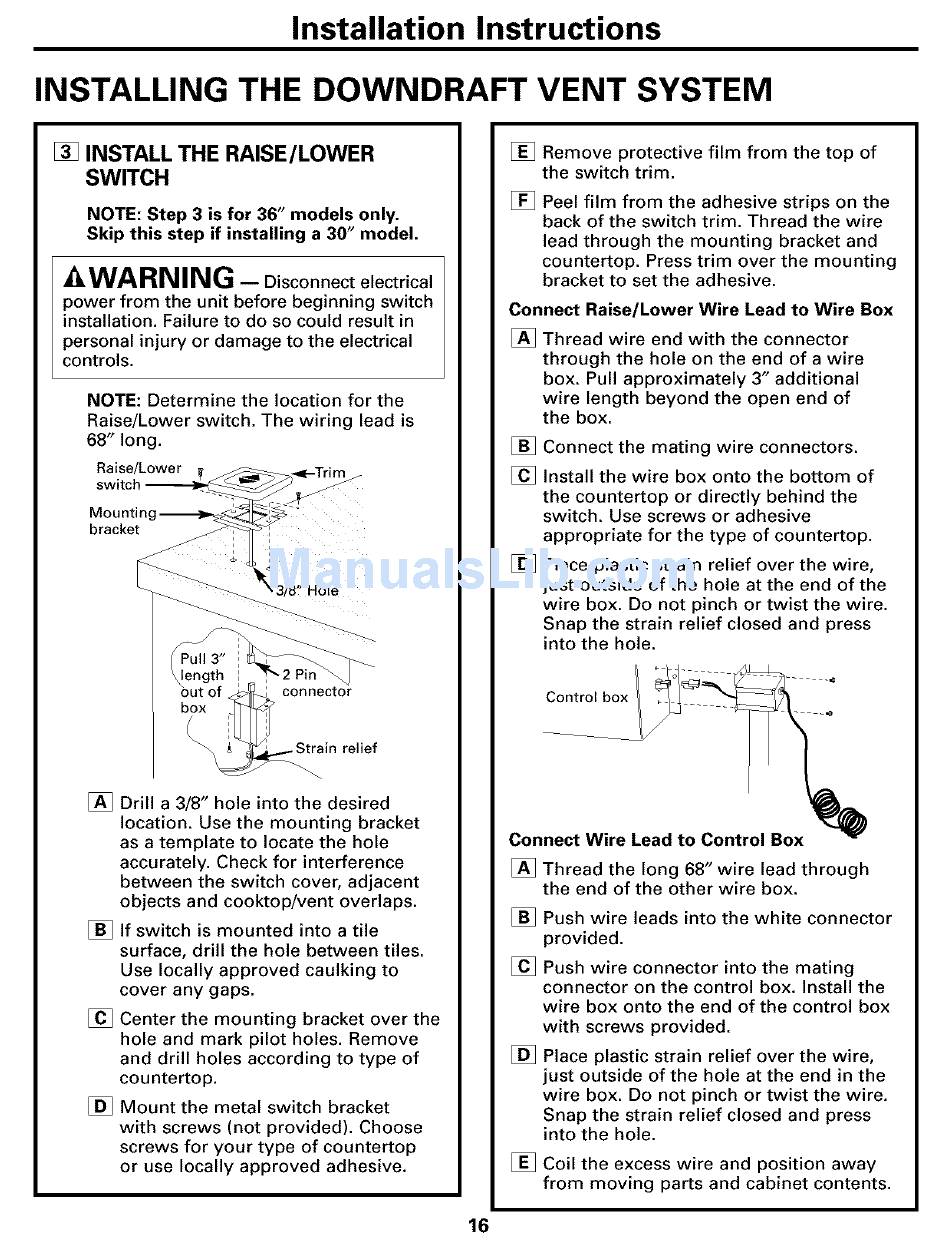

Installation Instructions
INSTALLING THE DOWNDRAFT VENT SYSTEM
[] INSTALL THE RAISE/LOWER
SWITCH
NOTE: Step 3 is for 36" models only.
Skip this step if installing a 30" model.
WARNING - Disconnect electrical
power from the unit before beginning switch
installation. Failure to do so could result in
personal injury or damage to the electrical
controls.
NOTE: Determine the location for the
Raise/Lower switch. The wiring lead is
68" long.
Raise/Lower
swit
Mountin,
bracket
i
i
i i
connector
box
relief
[] Drill a 3/8" hole into the desired
location. Use the mounting bracket
as a template to locate the hole
accurately. Check for interference
between the switch cover, adjacent
objects and cooktop/vent overlaps.
[] If switch is mounted into a tile
surface, drill the hole between tiles.
Use locally approved caulking to
cover any gaps.
[] Center the mounting bracket over the
hole and mark pilot holes. Remove
and drill holes according to type of
countertop.
[] Mount the metal switch bracket
with screws (not provided). Choose
screws for your type of countertop
or use locally approved adhesive.
[]
[]
Remove protective film from the top of
the switch trim.
Peel film from the adhesive strips on the
back of the switch trim. Thread the wire
lead through the mounting bracket and
countertop. Press trim over the mounting
bracket to set the adhesive.
Connect Raise/Lower Wire Lead to Wire Box
[] Thread wire end with the connector
through the hole on the end of a wire
box. Pull approximately 3" additional
wire length beyond the open end of
the box.
[]
[]
[]
Connect the mating wire connectors.
Install the wire box onto the bottom of
the countertop or directly behind the
switch. Use screws or adhesive
appropriate for the type of countertop.
Place plastic strain relief over the wire,
just outside of the hole at the end of the
wire box. Do not pinch or twist the wire.
Snap the strain relief closed and press
into the hole.
Control box
Connect Wire Lead to Control Box
[] Thread the long 68" wire lead through
the end of the other wire box.
[] Push wire leads into the white connector
provided.
[]
Push wire connector into the mating
connector on the control box. Install the
wire box onto the end of the control box
with screws provided.
[]
Place plastic strain relief over the wire,
just outside of the hole at the end in the
wire box. Do not pinch or twist the wire.
Snap the strain relief closed and press
into the hole.
[] Coil the excess wire and position away
from moving parts and cabinet contents.
16
