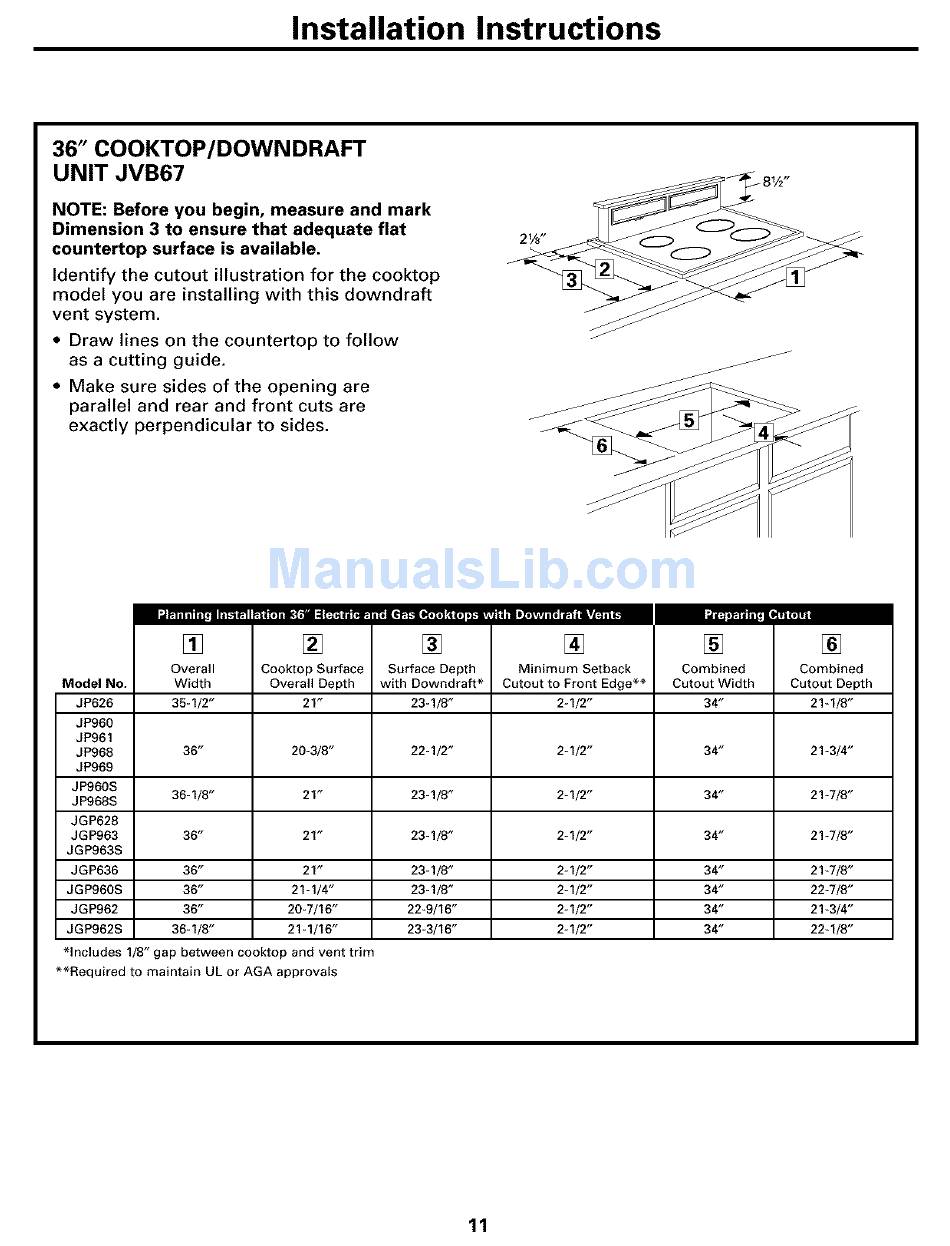

Installation
Instructions
36" COOKTOP/DOWNDRAFT
UNIT JVB67
NOTE: Before you begin,
measure
and mark
Dimension
3 to ensure that adequate
flat
countertop
surface is available.
Identify
the cutout
illustration
for the cooktop
model
you are installing
with
this downdraft
vent system.
• Draw
lines on the countertop
to follow
as a cutting
guide.
• Make sure sides of the opening
are
parallel
and rear and front
cuts are
exactly
perpendicular
to sides.
J
|l_J]ll_l,l.l|_H
I |l_l_.l
LIO iw* r. 1.1_
011J _,lJ]
0 }.ITJ
f E_,r.ll_|
LJl_|l,ll
m
[]
[]
[]
[]
[]
[]
Overall
Cooktop
Surface
Surface
Depth
Minimum
Setback
Combined
Combined
Model No.
Width
Overall
Depth
with
Downdraft*
Cutout
to Front Edge**
Cutout
Width
Cutout
Depth
JP626
35-1/2"
21"
23-1/8"
2-1/2"
34"
21-1/8"
JP960
JP961
JP968
36"
20-3/8"
22-1/2"
2-1/2"
34"
21-3/4"
JP969
JP960S
JP968S
36-1/8"
21"
23-1/8"
2-1/2"
34"
21-7/8"
JGP628
JGP963
36"
21"
23-1/8"
2-1/2"
34"
21-7/8"
JGP963S
JGP636
36"
21"
23-1/8"
2-1/2"
34"
21-7/8"
JGP960S
36"
21-1/4"
23-1/8"
2-1/2"
34"
22-7/8"
JGP962
36"
20-7/16"
22-9/16"
2-1/2"
34"
21-3/4"
JGP962S
36-1/8"
21-1/16"
23-3/16"
2-1/2"
34"
22-1/8"
*includes
1/8" gap between
cooktop
and vent trim
**Required
to maintain
UL or AGA approvals
