- Page 1 X-Treme Electric Scooters X-600 Electric Scooter Owner’s Manual PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! Page1...
-
Page 2: Battery Maintenance And
Failure to follow these INSTRUCTIONS will VOID YOUR WARRANTY! This PRODUCT IS NOT INTENDED FOR EXTREME or OFF-ROAD Use! Please take care of your X-600! DO NOT JUMP or ABUSE THIS PRODUCT! DO NOT RIDE IN WET/ICY CONDITIONS! Failure to follow these instructions will... - Page 3 IMPORTANT PLEASE READ THIS BEFORE USING THIS PRODUCT READ THIS FIRST! WARNING This product does not conform to Federal Motor Vehicle Standards and is not intended for operation on public streets, roads or highways. Serious injury can result from the unsafe operations of this product. Operator can minimize these risks by using certain safety equipment such as: safety helmet, goggles, gloves, elbow and kneepads and appropriate footwear.
-
Page 4: Quick Reference
Avoid unintentional starts by turning the scooter off while not in use. To avoid the risk of a short circuit in the electrical parts, do not use your X-Treme Electric scooter in the rain and never spray or wash off your scooter with water. ... -
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION…………………………………….……………...2-3 QUICK REFERENCE……………………………………………………………….4 TABLE OF CONTENTS……………………………….…………….………………5 GETTING TO KNOW YOUR X-TREME X-600………………….………………..6 PACKAGE CONTENTS & GETTING STARTED………………………………….7 GETTING STARTED………………..……………………………..….……………..7 ASSEMBLY, FUSE INSTALLATION……………………………….……………...7-8 CHARGING, RIDING & BRAKING..………………………………………………...9 FOLDING AND STORAGE……….………………………..…………..…………..10 BRAKING SYSTEM………….…………………………………….…..……………10 TIRE PRESSURE……………………………………………………...…………….11 MAINTENANCE……………………………………………………..……………12-13 TROUBLESHOOTING GUIDE……………………………………..………………14 OTHER QUESTIONS….……………………………………………..……………..13... -
Page 6: Getting To Know Your X-Treme X-600

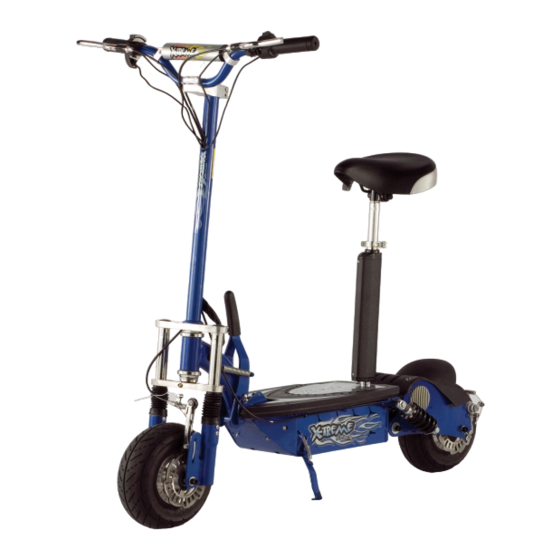

GETTING TO KNOW YOUR X-TREME X-600 (Photo’s may vary) Page6... -
Page 7: Getting Started
PACKAGE CONTENTS Your X-Treme X-600 comes with the following items in the box. Please locate all of the following: X-Treme X-600 Scooter 36V Battery Charger Tool Kit User Manual and 20amp Fuses Seat Seat Post & Clamp GETTING STARTED Please read and understand these instructions and the OPERATING... - Page 8 Assembly – Cont: 6. Insert the 20amp fuse by opening the footplate cover as shown. Insert the fuse into the fuse holder then close the footplate cover. 7. Attach the seat post to the seat post receiver, then attach the clamp to the top of the seat post.
- Page 9 3. Push the on/off switch (located on the left handlebar) to the ON position. 4. Put one foot on the deck of the X-600 while pushing off with the other foot, gently rotate the THROTTLE GRIP, on the right side of the handlebars. The X-600 will begin to move on its own power.
-
Page 10: Folding And Storage
ON again. FOLDING & STORAGE When you are done riding the X-600 you can fold it down for compact storage and transportation. First remove the seat post and seat, then using one hand, push down on the folding handle while gently pushing down on the handlebars. -
Page 11: Tire Pressure
Slime, available from any motorcycle shop, to avoid inconvenient punctures. Empty all air from the tire, prior to loosening the bolt to split the rim. MAINTENANCE RECOMMENDED TOOLS To adjust and service the X-Treme X-600 you will need the following tools: Allen Wrenches: 3/4/5/6 mm Page11... - Page 12 Wrenches: 10/13/13 mm Open end wrench Large Adjustable Crescent Wrench Philips Head Screwdrivers Oil, Grease or Lubricant ADJUSTING THE HEAD UNIT The head unit will come adjusted from the factory. However, riding on rough terrain and general use may cause the head unit to become loose over time. It may be necessary to adjust the head unit from time to time.
- Page 13 Finally, lock and tighten the rear axle bolts prior to riding. MAINTENANCE SCHEDULE Proper care of your X-Treme X-600 will insure optimal performance and longer life span. The following are a few maintenance suggestions that will keep your X-Treme X-600 running in top condition:...
-
Page 14: Other Questions
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme X-600 and please tell your friends how much fun you’re having on the X-Treme X-600... - Page 15 DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com REVISED 3-10-10 Page15...
