X-TREME XM-3150 Operation And Maintenance Instructions

X-TREME XM-3150 Operation And Maintenance Instructions

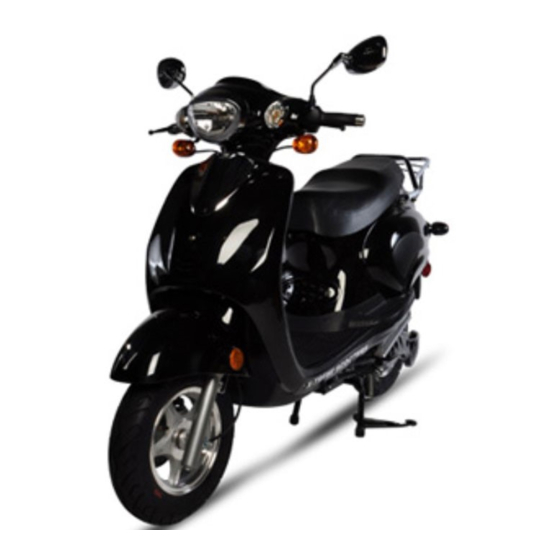

Zero emission clean energy high power electric scooter

Advertisement

ZERO EMISSION
CLEAN ENERGY
HIGH POWER ELECTRIC SCOOTER
XM-3150
Operation and Maintenance Instructions
We strongly recommend that you read this entire
manual before using your vehicle for the first time
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM-3150 and is the answer not in the manual?

Questions and answers

Summary of Contents for X-TREME XM-3150

  • Page 1 ZERO EMISSION CLEAN ENERGY HIGH POWER ELECTRIC SCOOTER XM-3150 Operation and Maintenance Instructions We strongly recommend that you read this entire manual before using your vehicle for the first time...
  • Page 2 Contents Page P01 General Instruction Before Riding P02 Point Inspection (Pre-ride Check) P03 Assembly Instructions P04 Equipment Location P06 Ignition Key Positions P07 Handle Bar Controls P08 Accelerating & Braking P09 Battery & Charging P10 Easy Maintenance P11 Maintenance Schedule P12 Diagnostics Indicators P13 Frequently Asked Questions P15 Technical Specification...
  • Page 3: General Instruction Before Riding

    General Instruction Before Riding 1) Tire check - Check the tires for correct inflation pressure and for any signs of physical damage. 2) Brake check - Squeeze the brake lever (Front then Rear) as hard as you can, push the scooter forwards and check the braking force.
  • Page 4 Point Inspection before every use (pre-ride check) The following checks/operations are necessary before riding and delivering. ALWAYS: 1) Always Charge the batteries (observing battery guidelines) before using and after every use. 2) Check the action of the front and rear-wheel suspension. 3) Check the functionality of all controls.
  • Page 5: Equipment Location

    Equipment Location...
  • Page 8: Ignition Key Positions

    Ignition Key Positions Key Position Description Key cannot be removed when power is on. Key can be removed when power is off. Turn the handle bar to the far left and turn the key to the lock position Lock Handlebar to prevent theft.
  • Page 9: Left Handle Bar Controls

    Left Handle Bar Controls High Beam: Push switch up Headlight Switch Low Beam: Push switch down Left Turn Signal: Slide switch to the left Horizontal Switch Right Turn Signal: Slide switch to the right Turning off Signal: Press central release button Horn Button Horn: Push red button on the left.
  • Page 10: Accelerating And Braking

    Accelerating and Braking Throttle Tips 1. Turn the key to the ‘ON’ position, then turn the Throttle gradually to accelerate. 2. To avoid losing control of your scooter, please turn the Throttle slowly until the speed increases. 3. Do not turn the throttle until you are ready to ride. 4.
  • Page 11: Battery Gauge And Charging Instructions

    Battery Gauge and Charging Instructions Marks Description When the battery is fully charged(over 75%). The needle Green will point to the upper green section. When the battery is around 75% charged, The needle Green(2 will point to the lower of the green section. When power is low (around 50%) the battery gauge turns to yellow.
  • Page 12: Easy Maintenance

    Easy Maintenance Good maintenance will play a major role in keeping your scooter in good working condition and prolong the life of the batteries and scooter Please follow these recommendations ◆ Rust prevention ★ Always keep your scooter dry and clean. ★...
  • Page 13: Maintenance Schedule

    Maintenance Schedule Regular Service Intervals - Miles Miles 1250 1875 2500 3100 3700 Battery Charger Tire Pressure Tire Wear Brake System Brake Pad Nuts and Bolts Miles 4400 5000 5600 6200 7000 7500 Battery Charger Tire Pressure Tire Wear Brake System Brake Pad Nuts and Bolts A: Adjust...
  • Page 14 Diagnostics Indicators If your scooter fails to operate, please check the diagnostic indicators on the display panel. Symptom: Light 1 flashes Diagnostics: This only applies to lithium powered scooters. The flashing light indicates low voltage. Solution: Please reduce the speed to obtain extra running miles and recharge the scooter immediately.
  • Page 15: Frequently Asked Questions

    Frequently Asked Questions 1. Fully charged, what is the range of the electric vehicle? A. The Range is affected by the weight of rider, the type of terrain and the speed in which the vehicle is driven. At speed of 20mph, a range of 55 miles has been recorded on a single charge.
  • Page 16 batteries. 9. How can I know the batteries condition and energy level? The display panel includes a battery gauge on the right, which clearly indicates the power level of the batteries in your vehicle. I. FULL: First green light is on. II.
  • Page 17: Technical Specifications

    Technical Specifications Motor High efficiency 3100W Brushless Hub Motor Battery 5x12v/35Ah Lead Acid ( VRLA) batteries Charger 5A,110V-250V/50Hz-60Hz Charging Time 4-6 Hours Expected Life of 300 Deep Cycles for Lead acid battery (100% discharged) Battery Tire 3.5”x10” 4PR tubeless tire Max Torque 135N.m Max Speed...
  • Page 20 DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com REVISED 3/18/10...
