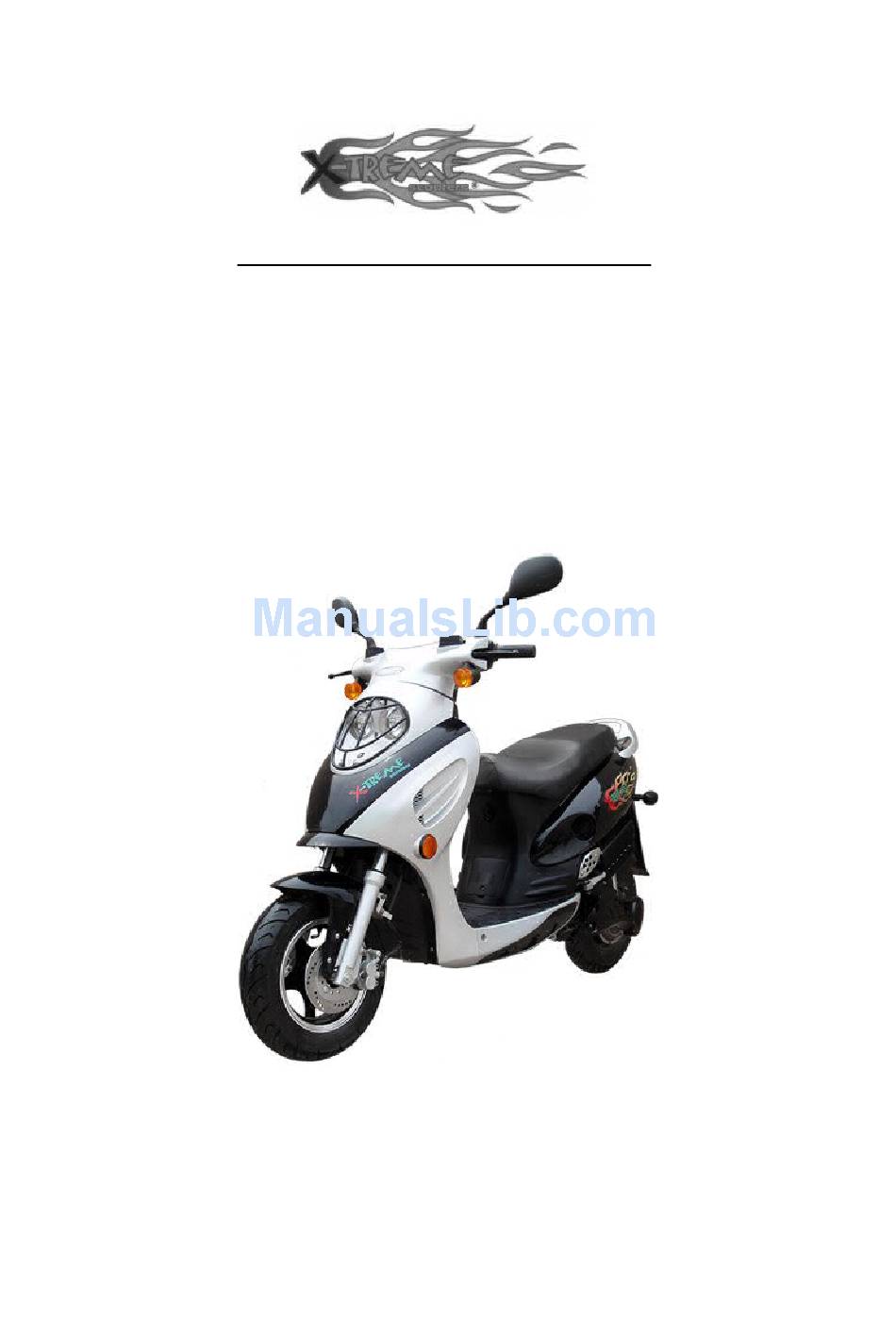

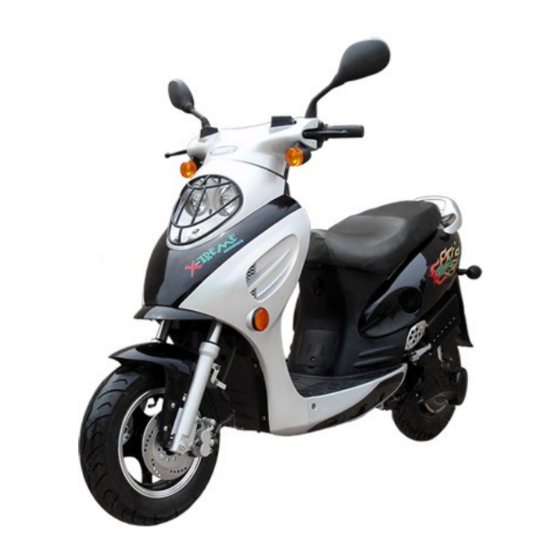

- Page 1 X-Treme Electric Moped Operation and Maintenance Instructions Electric Moped XM-3000 Revised 10/17/08 We strongly recommend that you read this entire manual before using your vehicle for the first time.
-
Page 2: Table Of Contents
Contents Page General Instruction before riding Page 3 Point Inspection Page 4 Assembly Instructions Page 5 Technical Specifications Page 6 Parts List Page 7 Front Display Page 8 Ignition Key Positions Page 9 Handle Bar Controls Page 10 Power Boost Button Page 11 Accelerating &... -
Page 3: General Instruction Before Riding
General Instructions Before Riding 1) To ensure the vehicle is functioning correctly, do a quick check of the vehicle’s tires and check that the brakes are working. (For more detailed maintenance instructions see the Maintenance Schedule). Your vehicle has been thoroughly checked by our engineers before delivery but on the spot checks are equally important. -
Page 4: Point Inspection
Point Inspection before every use Item Action Front Brake Squeeze right hand brake and push the vehicle to see whether it rolls easily. If it does, then the brake must be tightened. Tighten the bolt until the vehicle will no longer move with the brakes applied. Rear Power Listen for any noticeable grinding or squealing from Disc Brake... -
Page 5: Assembly Instructions
Assembly Instructions Installing the mirrors 1. Mirrors can be easily fixed to the handle bars between the grips and the brake handle. 2. Screw in the mirror clockwise. The mirror that goes on the left controller is curved to the left and the mirror that goes on the right controller curves to the right. -
Page 6: Technical Specifications
Technical Specifications Motor Power 3000W Brushless Hub Motor Battery DC 60V, 38AH with the green saver ( silicone power) batteries Charger 5A,110V~250V/50 Hz ~60Hz Charging Time 6~10 Hours Life of Battery 400 Deep Cycles Wheelbase 10 Inches Torque 110Nm (76 ft-lb) Top Speed 40 mph Single Charge... -
Page 7: Parts List
Parts List A. Horn B. Throttle and Front Brake Handle C. Rear View Mirror D. Head Lamp E. Dash Board F. Odometer (Kilometer/Mileage) G. Shift gear position H. Under seat storage I. Front Storage Box J. Tail Light K. Front Disk Brake 2 speed shift gear &... -
Page 10: Ignition Key Positions
Ignition Key Position Description Position Key cannot be taken out when power is on. Key can be taken out when power is off shift gear.jpg Lock handle To prevent theft, turn the Handle Bar to the far left and turn the key into the lock position. The key can be taken out when handle bar is in the lock position. -
Page 11: Handle Bar Controls
Left handle bar controls Headlight Switch High Beam – Push switch up Low Beam – Push switch down Horizontal Switch Left Turn Signal – Slide switch to the left Right Turn Signal – Slide switch to the right Turning off Signal – Press central release button Horn Button Sounds Horn –... -
Page 12: Accelerating & Braking
Accelerating and Braking Throttle Tips 1. Turn the key to the ‘ON’ position, and turn the Throttle gradually to accelerate. 2. To prevent losing control of the vehicle, please turn the Throttle slowly until the speed increases. 3. Do not turn the Throttle until you are in the position to drive. 4. -
Page 13: Battery & Charging
Battery Gauge and Charging Instructions Color Description Green While riding, when the battery is fully charged the gauge light will be green. Green (2 This light indicates that the battery is 75% of full charge Yellow When power is low (around 50%) the battery gauge will turn to yellow. -
Page 14: Performance
Performance 1. A range of 57Miles (92km) has been recorded, yet the distance and speed depend upon various elements of the rider’s style and the road conditions. A 20mph constant speed will ensure the longest range. Other factors include weather, vehicle condition, and battery charge. -
Page 15: Maintenance
Maintenance This electric motor bike represents generation environmentally friendly two-wheeled transportation. Therefore, good maintenance will play a major role in keeping your vehicle in good working condition and prolonging the life of the batteries. Please follow these suggestions: To prevent rust always keep your vehicle dry and clean. Regularly check the front and rear tires, suspension and body frame and all fasteners. -
Page 16: Maintenance Schedule
Maintenance Schedule Mileage 400 1000 2000 3000 4000 5000 6000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts Mileage 7000 8000 9000 10,000 11,000 12,000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts A: Adjust C: Check... -
Page 17: Frequently Asked Questions
The brushless motor is precisely that so there is never a need to change the brushes. 5. What about parts, is it a problem getting parts for the XM-3000? I. ALL parts can be purchased directly from the supplier including batteries, tires, bulbs, seats etc. - Page 18 outlet, the controller and the internal battery set when washing or cleaning 7. Do you need to wear a helmet to drive the electric vehicle? A. For safety reasons we always advise the use of a helmet. However, local law dictates whether or not riding vehicle law obligates a helmet. 8.
- Page 19 13. Why is this product the best available in the world today? It has a Brushless motor. We emphasize "brushless" not just because this is the latest technology, but because these permanent magnet motors are supremely reliable! These more expensive motors produce high torque at low speeds, keeping an acceptable balance of torque and energy across the whole speed range.
- Page 20 Troubleshooting Problem Condition Check Solution When I turn my Power Check power Fasten vehicle on nothing indicator light is off connection and connections. happens. while riding. battery level. Indicating Check battery Recharge light on motor is not and motor battery. illuminated.
- Page 21 Check the fuse Unplug the in the charger box. charger and replace the fuse. Contact the supplier to order a new charger fuse/charger. Charger has Replace the blown a fuse. charger fuse. The fuse box is located on the floorboard, unscrew the two screws and open the fuse case, and...
- Page 22 For General Information or Parts Visit www.x-tremescooters.com For Technical Support or Assistance Visit www.x-tremescooters.com/support/...
