AW-250 DUAL MONO
BALANCED POWER AMPLIFIER
Owner's Manual
Warning: To reduce risk of fire or electric shock, do not expose this appliance to
rain or moisture. Verify line voltage before use.
Do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel. The warranty in void if the product is tampered with by non
authorised personnel. Use only authorised Electrocompaniet service station.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ELECTROCOMPANIET AW-250

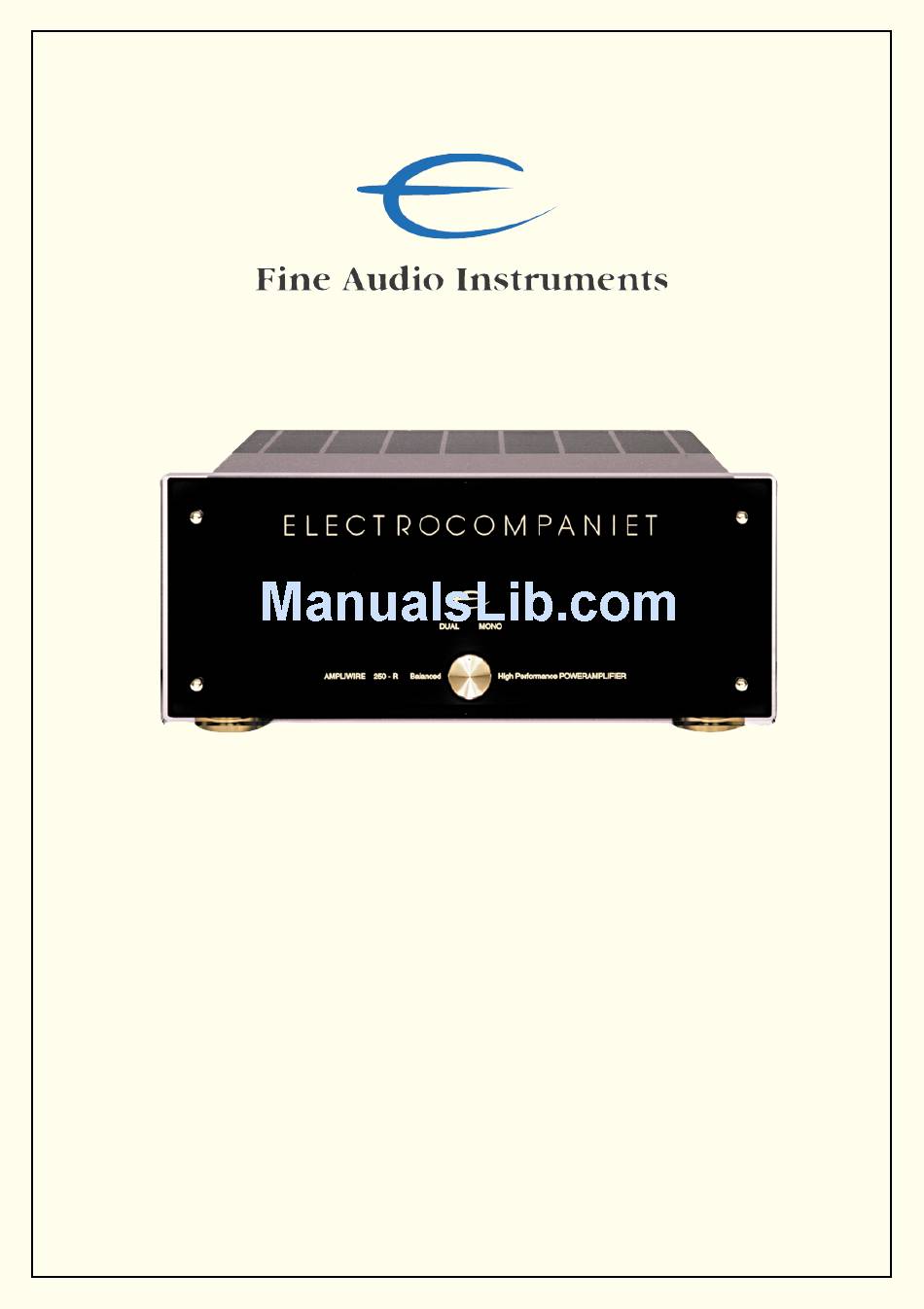

  • Page 1 AW-250 DUAL MONO BALANCED POWER AMPLIFIER Owner’s Manual WARNING: To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture. Verify line voltage before use. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
  • Page 2 Welcome to the world of Electrocompaniet We sincerely thank you for selecting an amplifier from Electrocompaniet. We hope you will enjoy years of listening pleasure and true high end musical performance from your audio system. Kindly read this owners manual to familiarise yourself with the set before operation.
  • Page 3 The design features of Ampliwire 250 DMB After the Electrocompaniet 25 watt amplifier had established a new standard for transistor amplifiers, research was undertaken to find ways to make the amplifier even better, and to extend its highly musical sound quality to more powerful amplifier designs. The engineers at Electrocompaniet were not satisfied by only reducing the commonly recognised types of distortion to low levels.
  • Page 4 Unpacking the amplifier: Immediately upon receipt of the amplifier, inspect the carton for possible damage during shipment. If the carton is visibly damaged, a claim must be filed with the carrier as soon as possible. Unpack the unit carefully, and please do remember to save all packaging materials for future shipment.
  • Page 5 Balanced XLR input and operation The balanced mode can only be used if the preamplifier has a balanced output. In order to use the balanced XLR- input, turn off the amplifier, and remove the shorting plugs from the negative (-) RCA inputs.Use an XLR interconnect with GND on pin 1, + on pin 2 and - on pin 3.
  • Page 6 Warning: The amplifier will be warm. Due to the high class A operating point used in the Electrocompaniet design, it is normal that the amplifier feels warm. Proper ventilation will be needed, and the amplifier should not be covered in. A good rule is to allow 1 - 2 inches of air sidewise, and 2 - 3 inches above the amplifier.
  • Page 7 Service Policy: When service is needed Your dealer will have all relevant information about the service centers in your area, and will ensure that your unit is serviced without delay. It is our general policy to have your amplifier returned to you within 5 working days. This is an average time, and could vary locally, depending on the work load at the service center.
  • Page 8 Technical Specifications AW250DMB : The following technical data were measured on randomised test objects and are typical data. All measurements are made with the following equipment: Distortion analyser: Tektronix AA501 Oscilloscope: Tektronix 468 Oscillator: Tektronix SG505 Frequency counter: Rascal 9838 Phase meter: Hewlett Packard 3575A Amplifier section...
