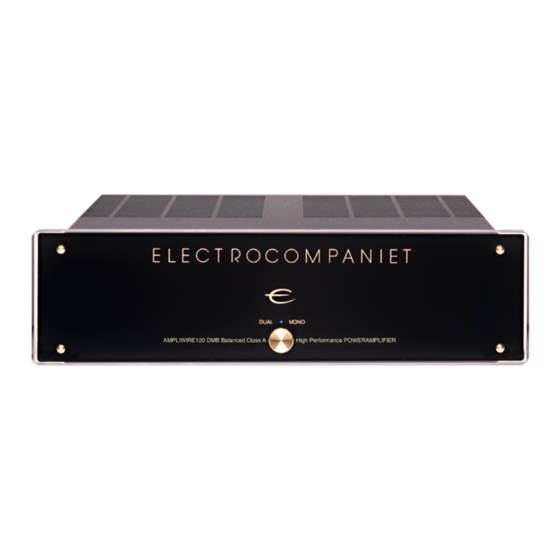

AW-120 DUAL MONO FTT
BALANCED POWER AMPLIFIER
Owner's Manual
WARNING: To reduce risk of fire or electric shock, do not expose this appliance to
rain or moisture. Verify line voltage before use.
Do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel. The warranty in void if the product is tampered with by non
authorised personnel. Use only authorised Electrocompaniet service station.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELECTROCOMPANIET AW-120
Summary of Contents for ELECTROCOMPANIET AW-120
- Page 1 Verify line voltage before use. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. The warranty in void if the product is tampered with by non authorised personnel. Use only authorised Electrocompaniet service station.
- Page 3 The carton and packaging have been designed to offer the safest possible protection when transporting your amplifier. The content of the carton is as follows: 1 pcs Electrocompaniet Ampliwire 120 DMB 1 pcs AC power cord 1 Owners Manual 2 pcs ECP5XLR 1 pcs Spare fuse, 5.0 AT slow-blow 5x20mm (120V AC)
- Page 4 Balanced XLR operation Use an interconnect with gnd on pin 1, + on pin 2 and – on pin 3 Single ended operation Use an RCA to XLR adapter (ECP5XLR). Connect ECP5XLR to the XLR input. Connect the RCA interconnect to the input on the ECP5XLR...
- Page 5 Balanced bridget mode (Mono) Use an XLR interconnect from the preamplifiers balanced output left or right to the power amplifiers right input. Link from the power amplifiers right XLR output to the power amplifiers left XLR input. This link must turn the phase of + and -. Connect the speakers + to the amplifiers right out +.
- Page 6 Technical Specifications AW120: The following technical data were measured on randomised test objects and are typical data. All measurements are made with the following equipment: Distortion analyser:Tektronix AA501 Oscilloscope: Tektronix 468 Oscillator: Tektronix SG505 Frequency counter: Rascal 9838 Phase meter: Hewlett Packard 3575A Amplifier section Main voltage 120 V / 240 V.
- Page 7 Always ship the amplifier in its original carton and packaging material to prevent damage in transit. Electrocompaniet will not accept responsibility for any damage caused in transit, no matter how ever caused. If you require further information concerning the amplifier operation, or if you have any questions related to service, please do not hesitate to contact your dealer or national Electrocompaniet distributor.
