Summary of Contents for ELECTROCOMPANIET AW400
- Page 1 A W4 0 0 Mo n a u r a l C l a s s A R e f e r e n c e A mp l i fi e r Ow n e r ’ s Ma n u a l E NG...
-
Page 3: Power Amplifier
To avoid risk of fire or electric shock, do not expose this appliance to rain or moisture. Verify line voltage before use. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. The warranty is void if the product is tampered with by non-authorised personnel. Use only authorised Electrocompaniet service center. - Page 4 Unpack the unit carefully. Save all packaging materials for future shipment. The contents of the carton 1 pcs Electrocompaniet AW400 power amplifier 1 pcs AC power cord 1 pcs spare main fuse (located in the fuse drawer of the amplifier)

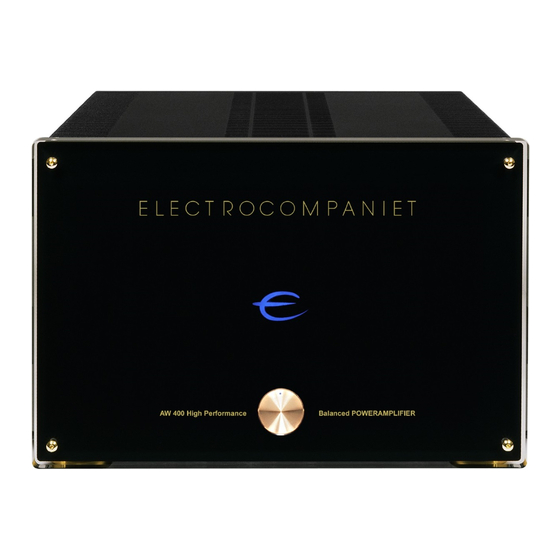

- Page 5 When turning your system off, you should start by switching off your power amplifier, then the preamplifier, and finally the signal source devices. Front panel Diagram 1 In center of the front panel the Electrocompaniet logo will be lit when power is on.
- Page 6 Connecting the audio components Balanced...
- Page 8 Warning The amplifier will be warm. Due to the high class A operating point used in the Electrocompaniet design, it is normal that the amplifier feels warm. Proper ventilation will be needed, and the amplifier should not be covered in. A good rule is to allow 1-2 inches of air sidewise, and 2-3 inches above the amplifier.
- Page 9 Technical Specification AW 400 The following technical data were measured on randomized test objects and are typical data. All measurements are made with main voltage 120/240 V 50Hz / 60Hz. Main voltage 120 / 240 V. Clipping point of the amplifier is set to a level where total harmonic distortion (THD) is 0.2%.
- Page 10 4. Always ship the unit in its original carton and packaging material to prevent damage in transit. Electrocompaniet will not cover damages incurred in transit. If you require further information concerning the operation of the unit, or if you have any questions related to service, please do not hesitate to contact your dealer or your national distributor.
- Page 12 Ma d e i n No r w a y W W W . EL ECT RO CO M P ANI ET . NO...
