Summary of Contents for Kramer W-H
- Page 1 Kramer Electronics, Ltd. USER MANUAL Wall Plate Series W-H, WP-H1M, WP-H2M...
- Page 2 Contents Contents Introduction Getting Started Overview W-H, WP-H1M and WP-H2M Wall Plate Inserts WP-H1M WP-H2M Figures Figure 1: W-H Figure 2: WP-H1M Figure 3: WP-H2M...
- Page 3 , which is ideal for these applications: board, conference and training rooms, presentation systems, and long distance signal distribution and home theater. Each insert can be used with the Kramer WP Frame or with one of our TBUS products. Note, that the Kramer W-H, WP-H1M and WP-H2M are identical to the W-HDMI, WP-HDMI1M and WP-HDMI2M;...
- Page 4 (often associated with low quality cables) • Position your Kramer wall plate insert securely, and in a location that is free from moisture and away from excessive sunlight and dust W-H, WP-H1M and WP-H2M Wall Plate Inserts This section describes the following Wall Plate Inserts: •...

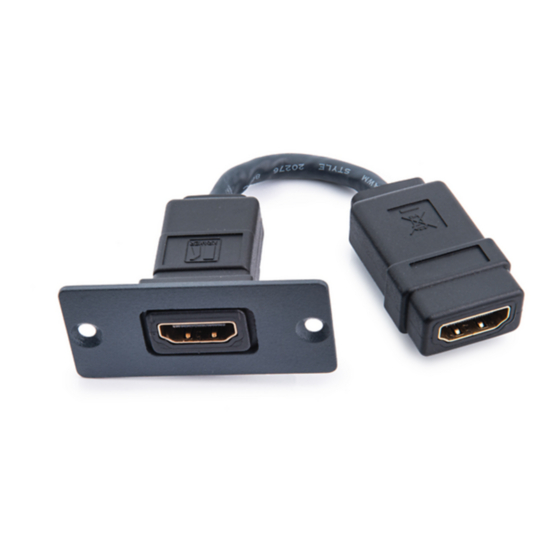

- Page 5 W-H, WP-H1M and WP-H2M Wall Plate Inserts 4.2 WP-H1M The WP-H1M is a one-gang metal wall plate insert (see Figure 2) with one pass through male connector for HDMI at the front and a cable and connector at the rear.
- Page 6 W-H, WP-H1M and WP-H2M Wall Plate Inserts 4.3 WP-H2M The WP-H2M is a one-gang metal wall plate insert (see Figure 3) with two pass through male connectors for HDMI at the front and cables and connectors at the rear. Destination: Belgium and Germany...
- Page 7 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 8 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. PN: 2900- 000680 Rev: Kramer Electronics, Ltd.
