5.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VP-725NA to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45 connectors.

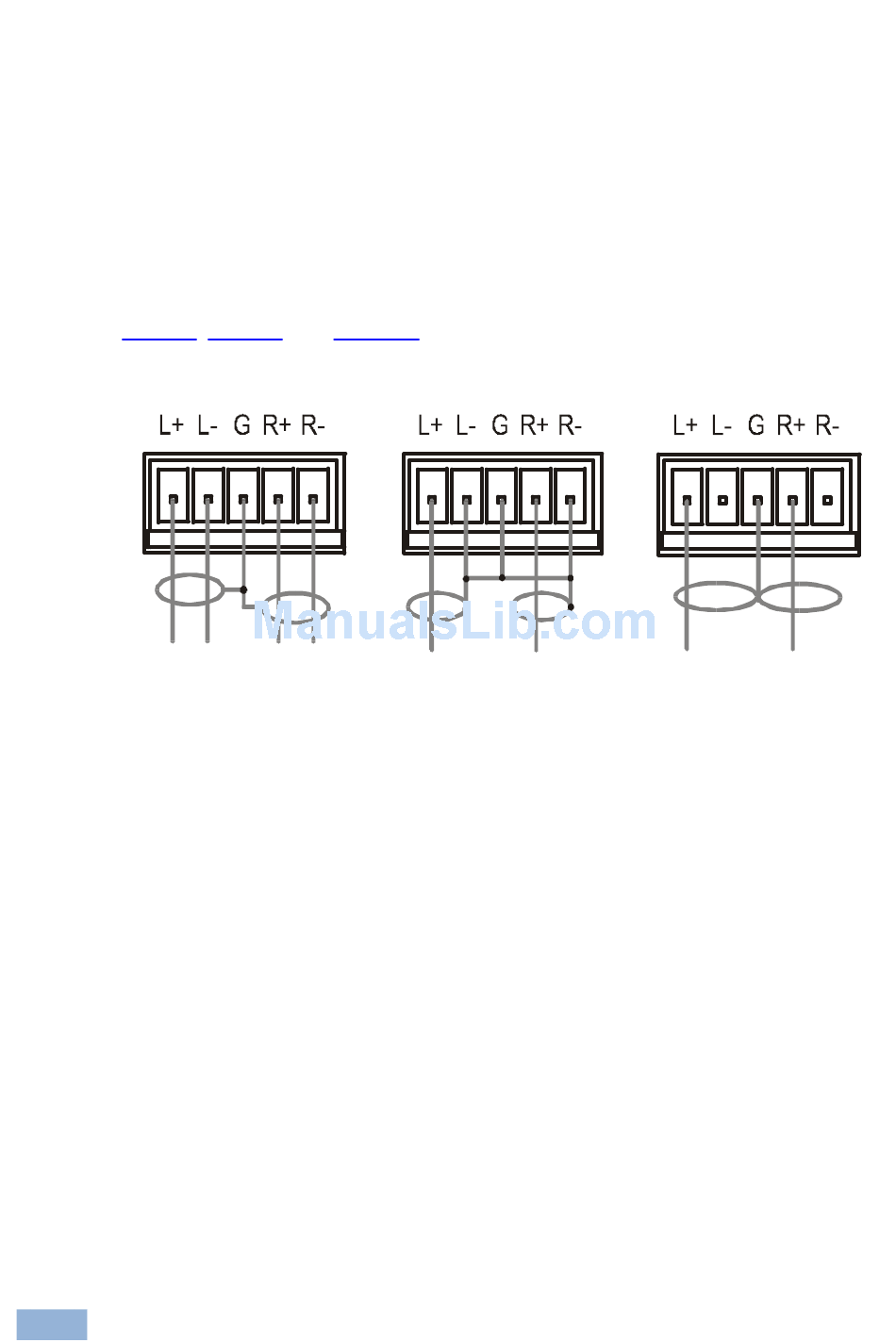

5.5 Connecting the Balanced/Unbalanced Stereo Audio
Input/Output
Figure 8,
input and/or output connection:
Figure 8: Connecting a
Balanced Stereo Audio
Input/Output
20
Figure 9, and Figure 10
VP-725NA - Connecting the VP-725NA Presentation Switcher/Scaler
illustrate how to wire a balanced/unbalanced
Figure 9: Connecting an
Unbalanced Stereo Audio
Input
Figure 10: Connecting an
Unbalanced Stereo Audio
Output
