7. Connect the MASTER OUT terminal block connector to the balanced audio
input on the audio amplifier, and route the audio input (corresponding to the
converted video input) to the MASTER OUT.
8. Connect the power cord (not illustrated in
We recommend that you use only the power cord that is supplied with this machine.
9. If required connect:



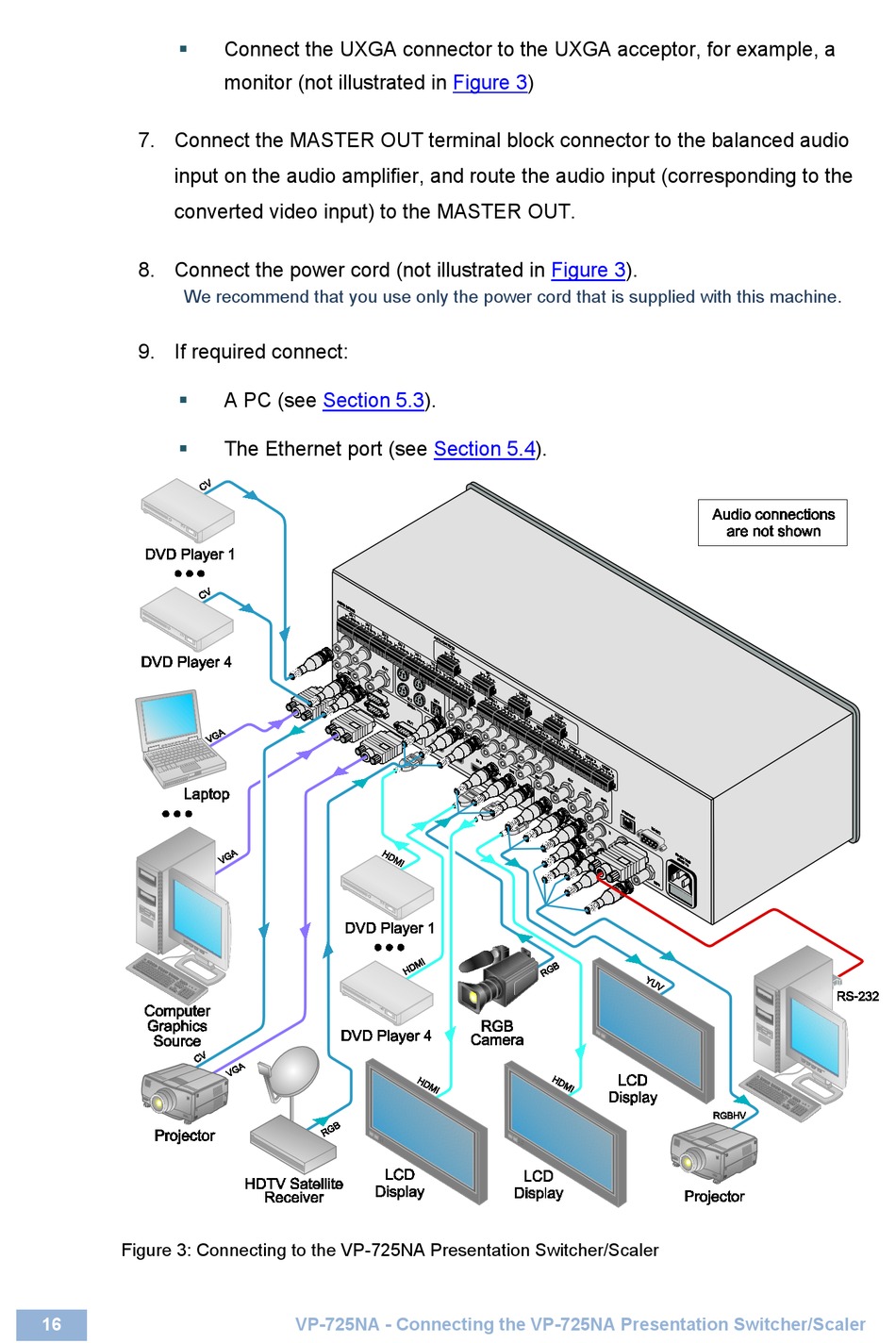

Figure 3: Connecting to the VP-725NA Presentation Switcher/Scaler

16
Connect the UXGA connector to the UXGA acceptor, for example, a
monitor (not illustrated in
A PC (see Section
The Ethernet port (see
VP-725NA - Connecting the VP-725NA Presentation Switcher/Scaler
