MOUNT THE BRACKET (continued)
Remove the headliner trim and any grab handles
over the rear door frame. Slide the bracket in
between the headliner and the roof. Mount the
bracket to the roof beam through the opening you
made in the headliner. A minimum of four short
screws must be used to mount the bracket.

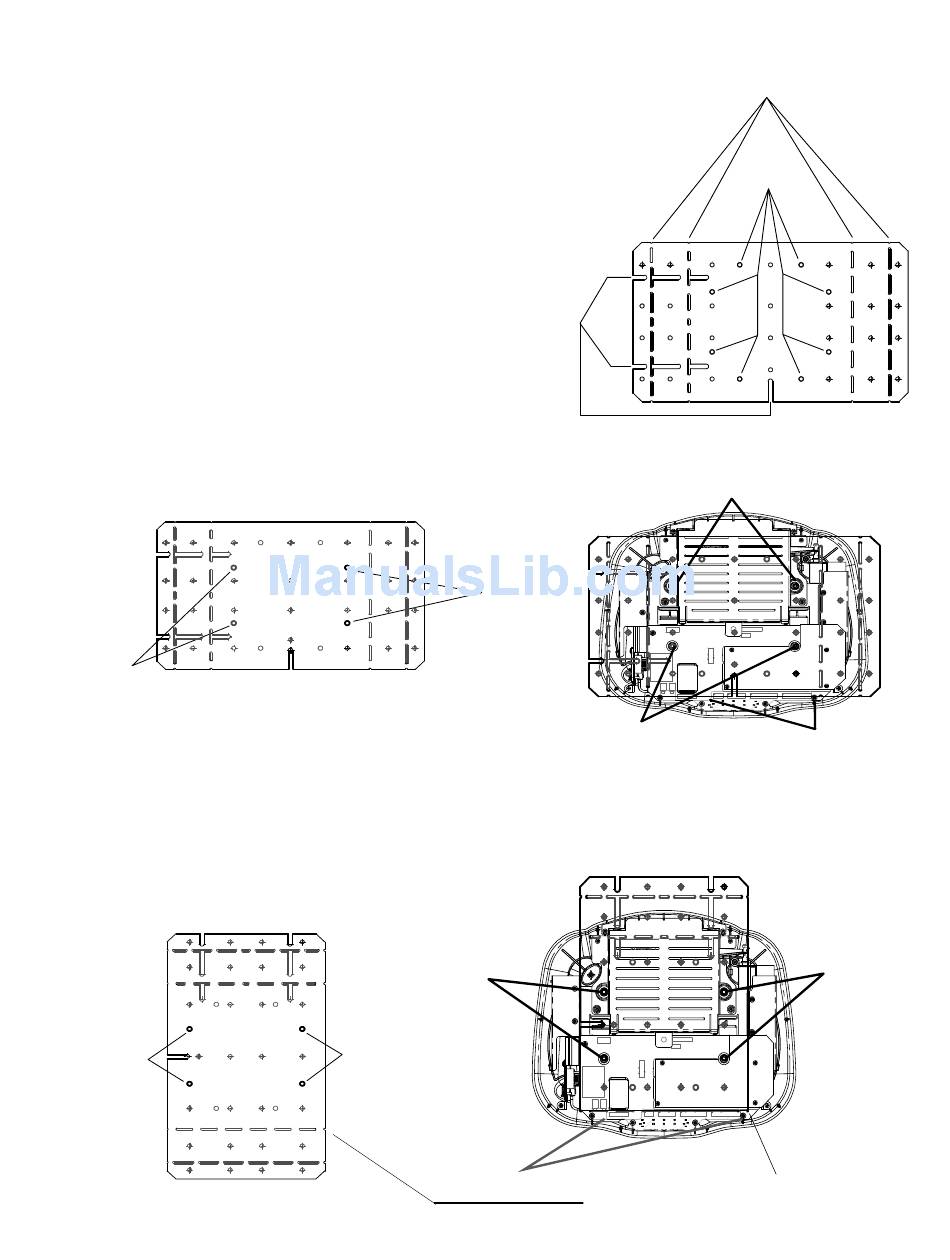

Lateral Bracket Positioning
Front of Vehicle
Threaded
standoffs
Long-axis Bracket Positioning
Threaded
standoffs
Front of Vehicle
Rosen M10 Installation Guide
CAUTION!
Slots for screws or
optional AC3024
stabilizing
mounting feet
Threaded
standoffs
Threaded
standoffs
for
Mounting
Screws
Threaded
standoffs
Connectors
Bend/break lines
Threaded
standoffs
Threaded standoffs
for Mounting Screws
Threaded standoffs
for Mounting Screws
Bend or break Bracket at this point
to create a cable exit! (See Pages 5, 7)
Connectors
Threaded
standoffs
for
Mounting
Screws
