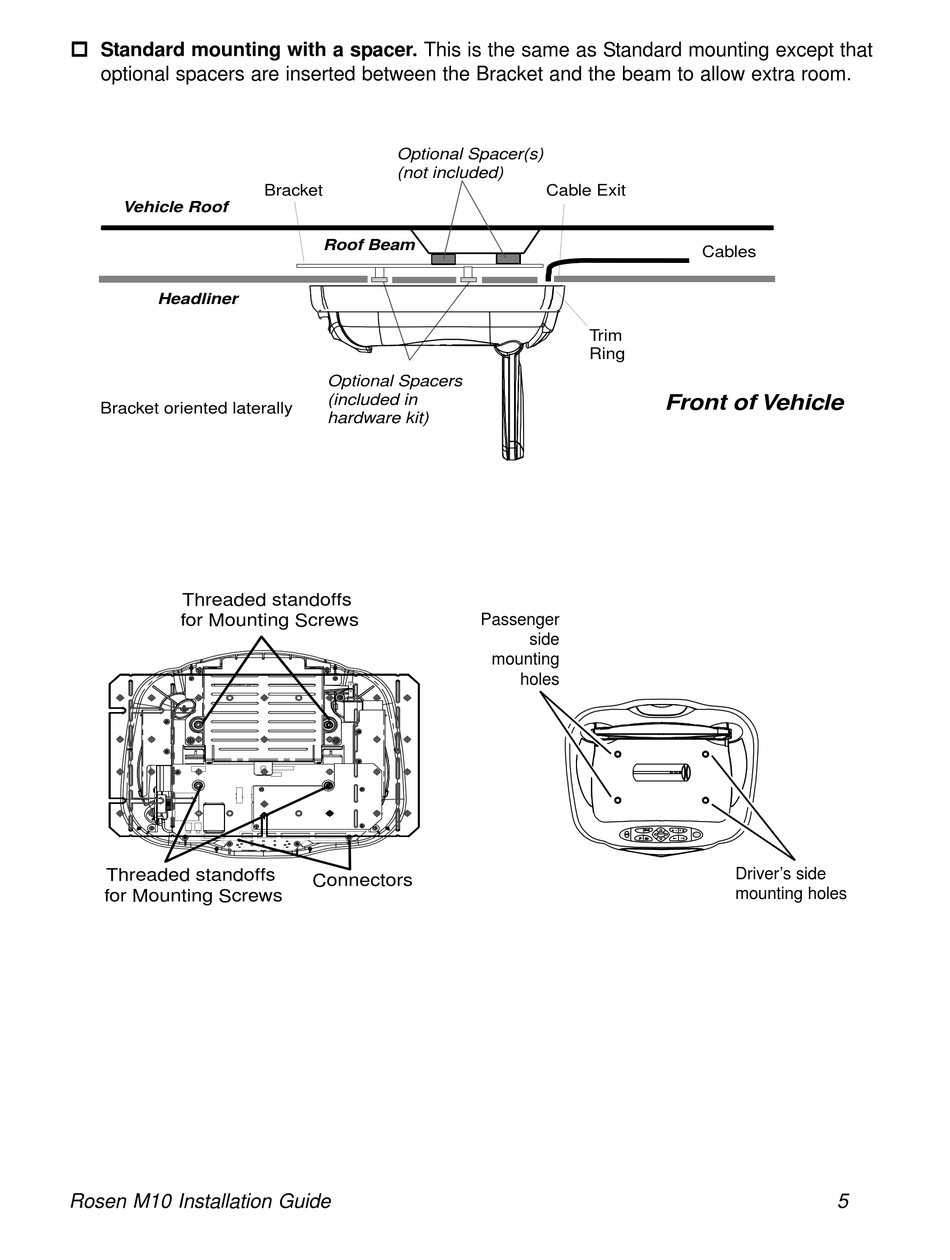

! ! ! ! ! Standard mounting with a spacer. This is the same as Standard mounting except that
optional spacers are inserted between the Bracket and the beam to allow extra room.
Vehicle Roof
Headliner
Bracket oriented laterally
Threaded standoffs
for Mounting Screws
Threaded standoffs
for Mounting Screws
Rosen M10 Installation Guide
Optional Spacer(s)
(not included)
Bracket
Roof Beam
Optional Spacers
(included in
hardware kit)
Connectors
Cable Exit
Trim
Ring
Passenger
side
mounting
holes
SOURCE
Cables
Front of Vehicle
ENTER
OPEN
Driver's side
mounting holes
5
