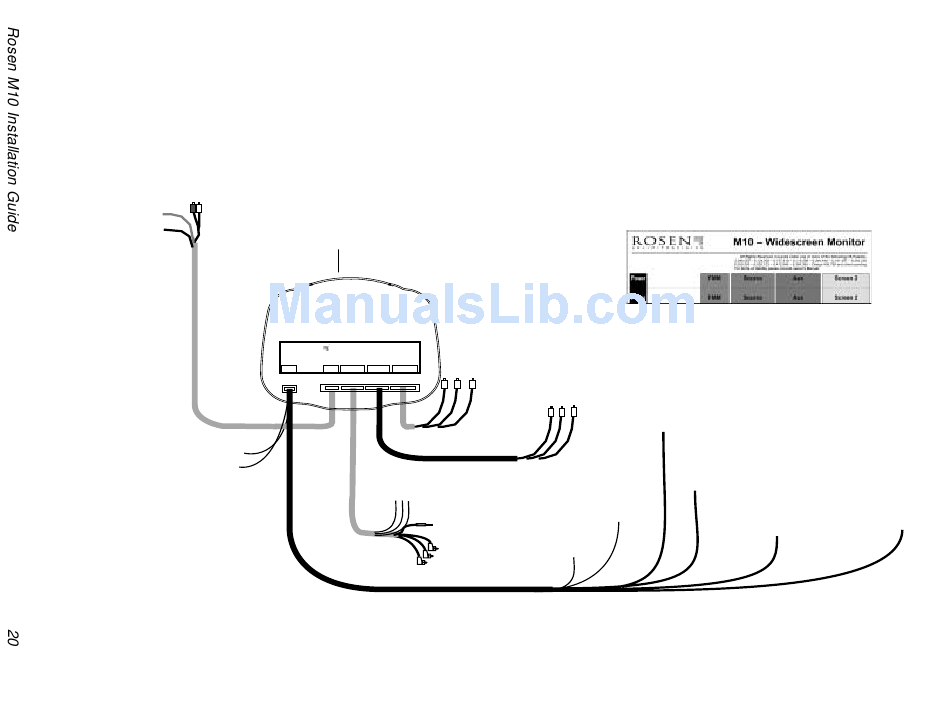

Rosen M10 System Wiring Diagram
Note:
Black cables are required,
Gray
cables are optional.
(The Green cable is
included, but not required)
RCA
connections
Red
FMM 12V(+) ACC
Black
FMM Ground
Optional
Blue FMM
Cable (AC3191)
Domelight
Input Wires
Green: (-) Negative door input
Purple: (+) Positive door input
(Usually located at dome light)
Note:
When adding the optional
AC3077 Game Plate/ Harness,
connect it to the Green port,
shown here with the Green Aux
Input Harness.
Front of Unit
*Optional
Yellow
Audio/Video
Output Cable
ROSEN
A10 - DVD Entertainment System
AC 3192
TV Tuner/
Power
FMM
Game/Aux
Screen 2
10 Disc DVD
Magenta
Input
Cable, TVT/
DVD-C/DVD
(AC3024)
Black Power/Domelight Cable/ Harness (AC 3xx)
Note: Connecting the Yellow Domelight power wire and the Yellow wire of the system
to the same point can cause audible system noise during dome light operation.
* Wiring Connections, AC3024 Magenta Input Harness
RCA connections:
Red
Right Audio In
White Left Audio In
Yellow Video In
Wiring connections for source unitpower/ground:
Red
12V(+) ACC output
Blue 12V(+) Constant output
Black (-) Ground output
Green
Aux Input
Harness
(AC3081)**
Black
(-) Chassis
Ground
Red 12V(+)
Yellow
Switched
Dome
Accessory
Light
Black
12V(+)
Dome
Constant
Light
(-) Chassis
Ground
Note:
Connect the orange wire
to a source of (+)12V
when the parking lights
are on. Some vehicles
lack such a wire - in these
vehicles, do not use the
orange wire.
Orange
Yellow
(+)
12V(+)
Illumination
Constant
Input
Battery
7.5A capable
