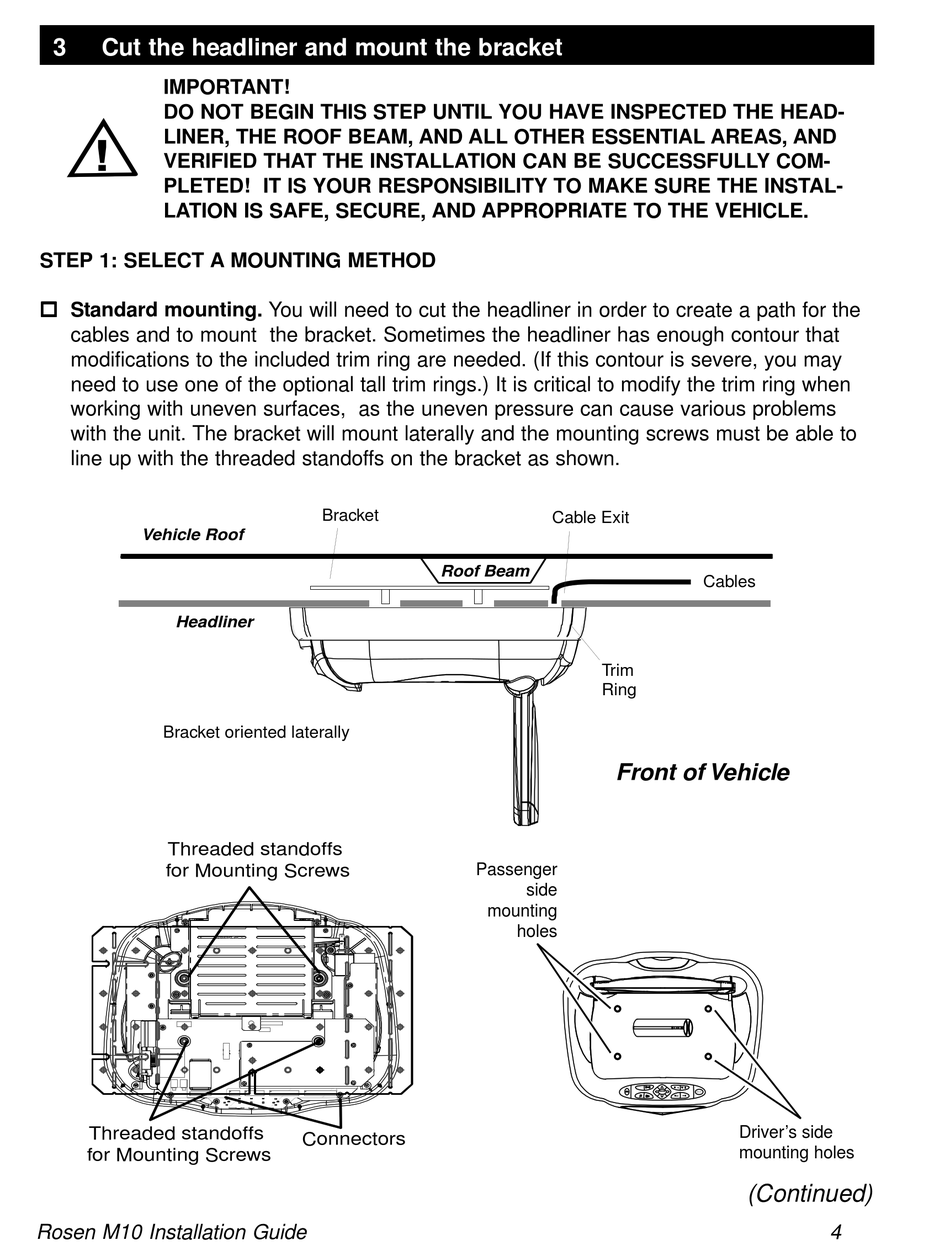

3 Cut the headliner and mount the bracket
IMPORTANT!
DO NOT BEGIN THIS STEP UNTIL YOU HAVE INSPECTED THE HEAD-
LINER, THE ROOF BEAM, AND ALL OTHER ESSENTIAL AREAS, AND
!
VERIFIED THAT THE INSTALLATION CAN BE SUCCESSFULLY COM-
PLETED! IT IS YOUR RESPONSIBILITY TO MAKE SURE THE INSTAL-
LATION IS SAFE, SECURE, AND APPROPRIATE TO THE VEHICLE.
STEP 1: SELECT A MOUNTING METHOD
! ! ! ! ! Standard mounting. You will need to cut the headliner in order to create a path for the
cables and to mount the bracket. Sometimes the headliner has enough contour that
modifications to the included trim ring are needed. (If this contour is severe, you may
need to use one of the optional tall trim rings.) It is critical to modify the trim ring when
working with uneven surfaces, as the uneven pressure can cause various problems
with the unit. The bracket will mount laterally and the mounting screws must be able to
line up with the threaded standoffs on the bracket as shown.
Vehicle Roof
Headliner
Bracket oriented laterally
Threaded standoffs
for Mounting Screws
Threaded standoffs
for Mounting Screws
Rosen M10 Installation Guide
Bracket
Roof Beam
Passenger
Connectors
Cable Exit
Trim
Ring

Front of Vehicle

side
mounting
holes
SOURCE
ENTER
Cables
OPEN
Driver's side
mounting holes
(Continued)
