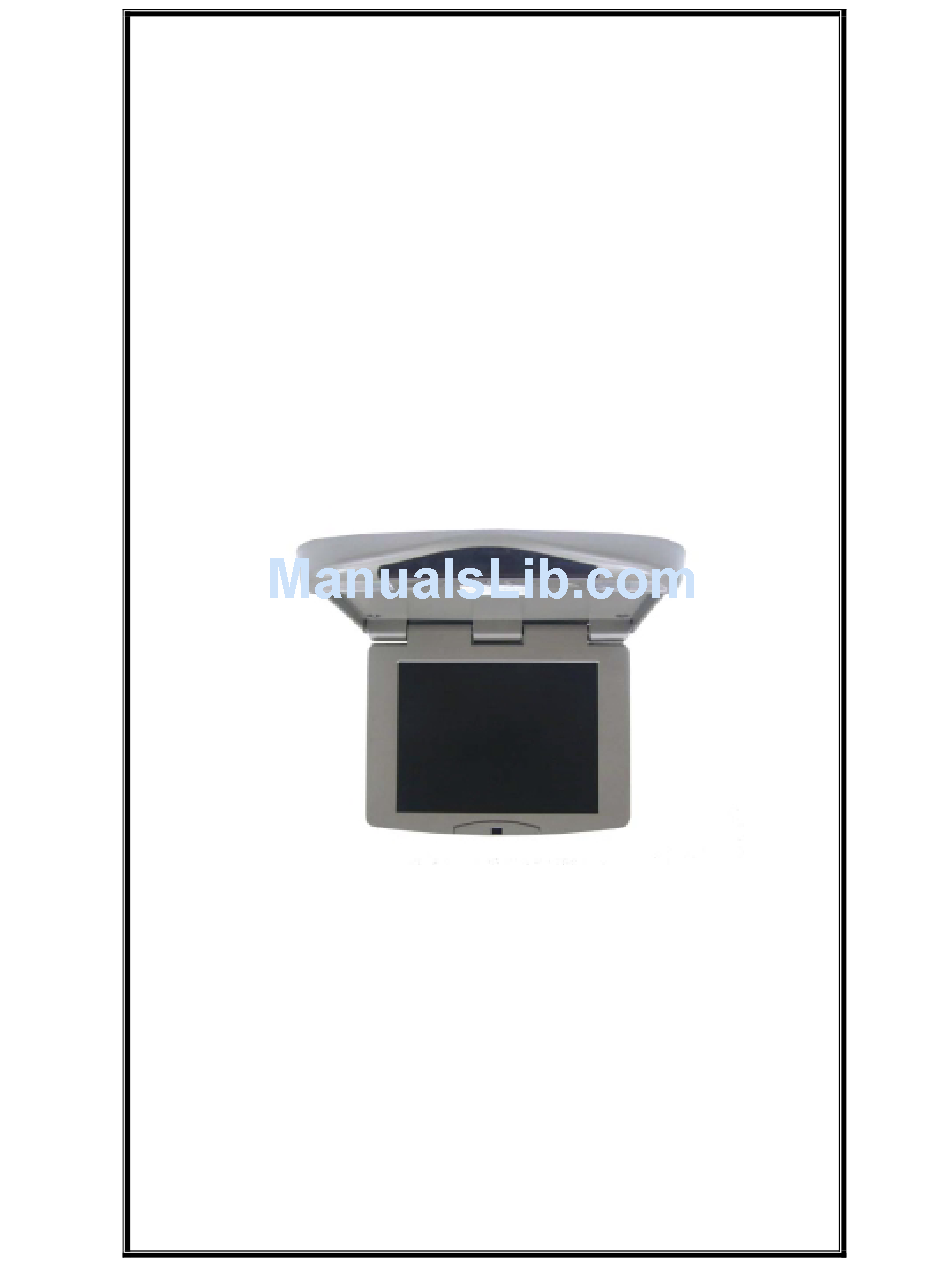

10.4" OVERHEAD MONITOR
Car Show
USERS MANUAL
V1.0

Advertisement

Table of Contents
loading

Related Manuals for Rosen Car Show CS104LCD

Summary of Contents for Rosen Car Show CS104LCD

  • Page 1 ™ 10.4” OVERHEAD MONITOR Car Show USERS MANUAL V1.0...
  • Page 2 CONTENT Specifications Installation Instructions Monitor Controls OSD Settings Wiring Harness Precautions Intended Use/Registrations INDEX PAGE...

  • Page 3: Specifications

    1. Specifications Resolution 800(H) × 600(V) x 3(RGB) (1,440,000) Pixels Display Area 211.2(H) × 158.4(V) Size 10.4" TFT 280 cd/㎡ ㎡ ㎡ ㎡ Brightness Response Time 15 millisecond Top=30°, Bottom=50° View Angle Left=50°, Right=50° Composite Video (RCA)(F) ×2 Video Input (NTSC, PAL, SECAM) Audio Input Stereo Sound Input (RCA)(F) ×2...
  • Page 4 2. Installation Step 1 NOTE: The mounting bracket is directional and must be aligned to the monitors mounting holes. Pay special attention to the proper screw locations. Mounting Bracket Screw Locations Step 2 Attach the mounting bracket to the vehicles roof support beam using the provided screws.
  • Page 5 Step 3 Attach the monitor to the mounting bracket with the provided screws. Screw locations shown with arrows See Step 1 Note bracket alignment to monitor position...

  • Page 6: Monitor Controls

    3. Monitor Controls Monitor Mounted Control Operation 1. Power： ： ： ： Push this button to Power ON or OFF the LCD. “： ： ： ： Push this button to decrease the degree of the 2. ” function that you selected. ”...

  • Page 7: Remote Control Operation

    Remote Control Operation (1) POWER： ： ： ： Push the RED button to Power On or Off the LCD. (2) SELECT： ： ： ： Push this button to select Video 1 or 2 Input. (3) MENU： ： ： ： Push this button to show the menu list and select the menu function.

  • Page 8: Osd Functions

    4. OSD Functions OSD MENU LIST BRIGHTNESS: Adjust the brightness of screen. Adjustment Range： ： ： ： 0 ~ 15 CONTRAST: Adjust the contrast of screen. Adjustment Range： ： ： ： 0 ~ 31 SHARPNESS: Adjust the sharpness of screen. Adjustment Range：...
  • Page 9 DEFAULT: Return to the original LCD settings SAVE AND EXIT: Save your personal settings and exit to Menu mode. VIDEO 1 DEFAULT (VX.XX) VIDEO 1 SAVE AND EXIT...
  • Page 10 5. Wiring Harness Accessories Description Power cable w/ 3A/250V Fuse Yellow： ： ： ： Video input 1, Video input 2 Red: Audio input (R)1, Audio input (R)2 White: Audio input (L)1, Audio input(L)2 Power input connector: Red: 12v+ Switched Black: Ground...

  • Page 11: Using Your Monitor

    If you need to clean the LCD screen use an approved LCD cleaning cloth. Do not add any parts or use any accessories which are not provided by Rosen. Do not use or store in the temperatures exceeding: (Operating 0~50℃/32~122 Be careful when moving the monitor so as not to damage the LCD screen.
  • Page 12 NOTICE OF INTENDED USE ROSEN ENTERTAINMENT SYSTEMS ARE DESIGNED TO ENABLE VIEWING VIDEO RECORDINGS ONLY REAR-SEAT OCCUPANTS. MOBILE VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING BY THE DRIVER WHILE THE VEHICLE IS IN MOTION. SUCH USE MAY DISTRACT THE DRIVER OR INTERFERE WITH THE DRIVER’S SAFE OPERATION OF THE VEHICLE, AND THUS RESULT IN SERIOUS INJURY OR DEATH.
