Rosen M10 Monitor/ Dual-Zone Controller Installation Manual page 19

M10 Dual-Zone Installations
When the M10 is the System Controller
When an additional screen is connected to the M10, the user can select a source for the
additional screen without affecting the main screen. (For the ability to select between the
two sources for audio, the optional AC3007 Dual-Channel Wireless Headphones are re-
quired.) Rosen recommends connecting only wide-screen displays to the M10.

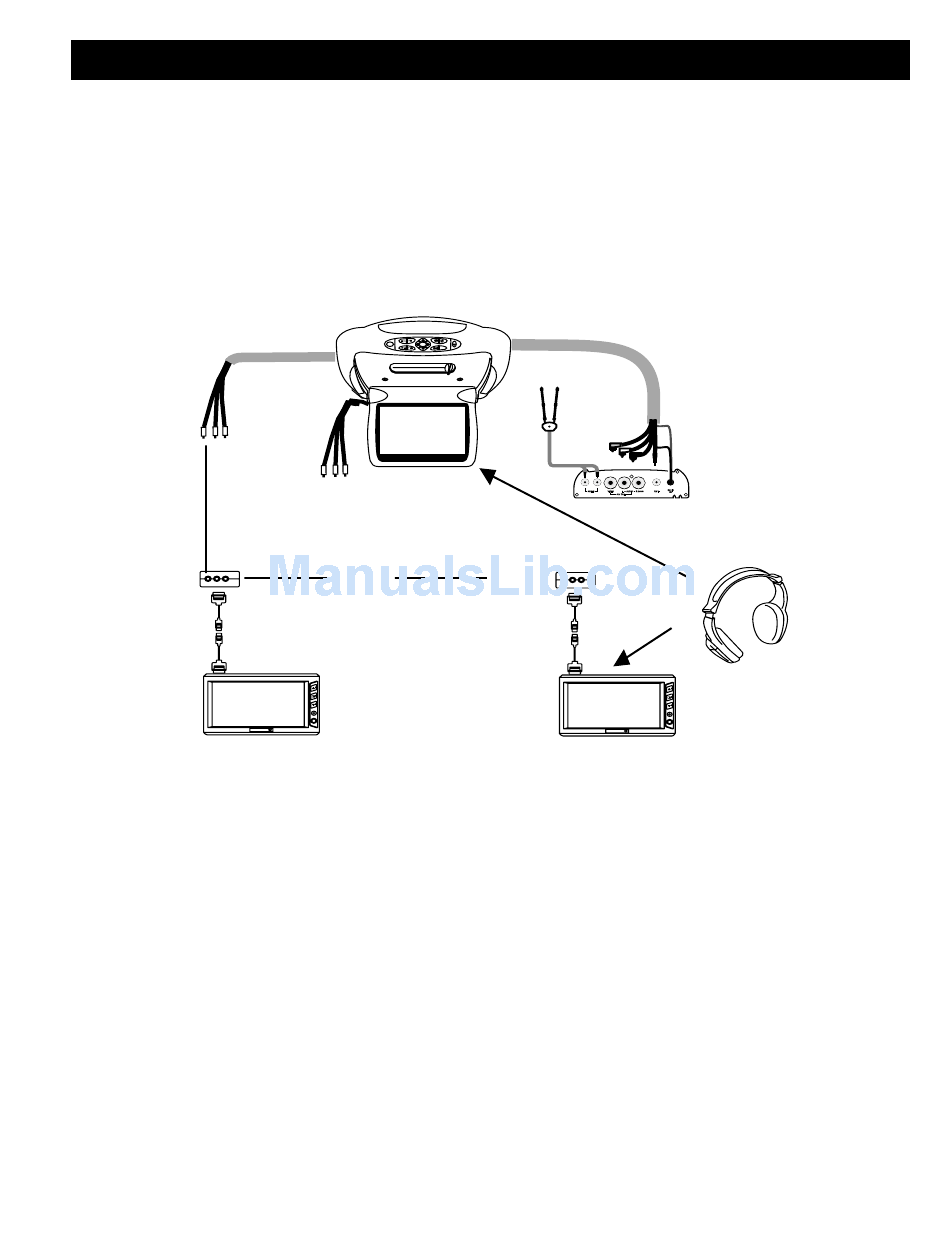

Sample System Diagram with two "headrest" monitors
Yellow Audio/Video
Output Harness
Yellow
Video
Output
RCA
Video Input RCA
On Headrest Monitor
GAME
CONSOLE
You can also connect a Satellite Radio or Satellite TV receiver to the Aux 2/TV Tuner port.
See Programming for changing the on-screen display label to "SATELLITE". This allows
rear-seat passengers to listen to Satellite Radio or TV using the headphone Channel B.
When the M10 is a Slave Monitor for an A10
Connect the A10's Yellow A/V output harness to the M10 Magenta Input.
In this configuration, turn off both Channel A and Channel B on the M10, and use the A10
as the IR Transmitter for both channels. See Install Setup Menu, P. 14.
Also turn off the Internal FM Modulator using the switch on the top of the unit.
When both Ch A and Ch B are set to OFF, the M10 will no longer recognize remote control
commands - except Eject, Enter, and Info, needed to re-enter the Install Setup Menu. The
M10 remote can then be used as a second remote to control the A10 main unit.
Rosen M10 Installation Guide
M10
OPEN
ENTER
SOURCE
TV TUNER
To Optional
External Game
Console
VIdeo
Output
RCA on
Headrest
Headrest
Monitor
necvox 7" headrest monitors
(or equivalent)
Magenta Source Input Harness
CV4000 TV Tuner Kit
VIdeo
Input
CH A
RCA on
Monitor CH B
GAME
CONSOLE
AC3007
Dual-Channel
Headphones
