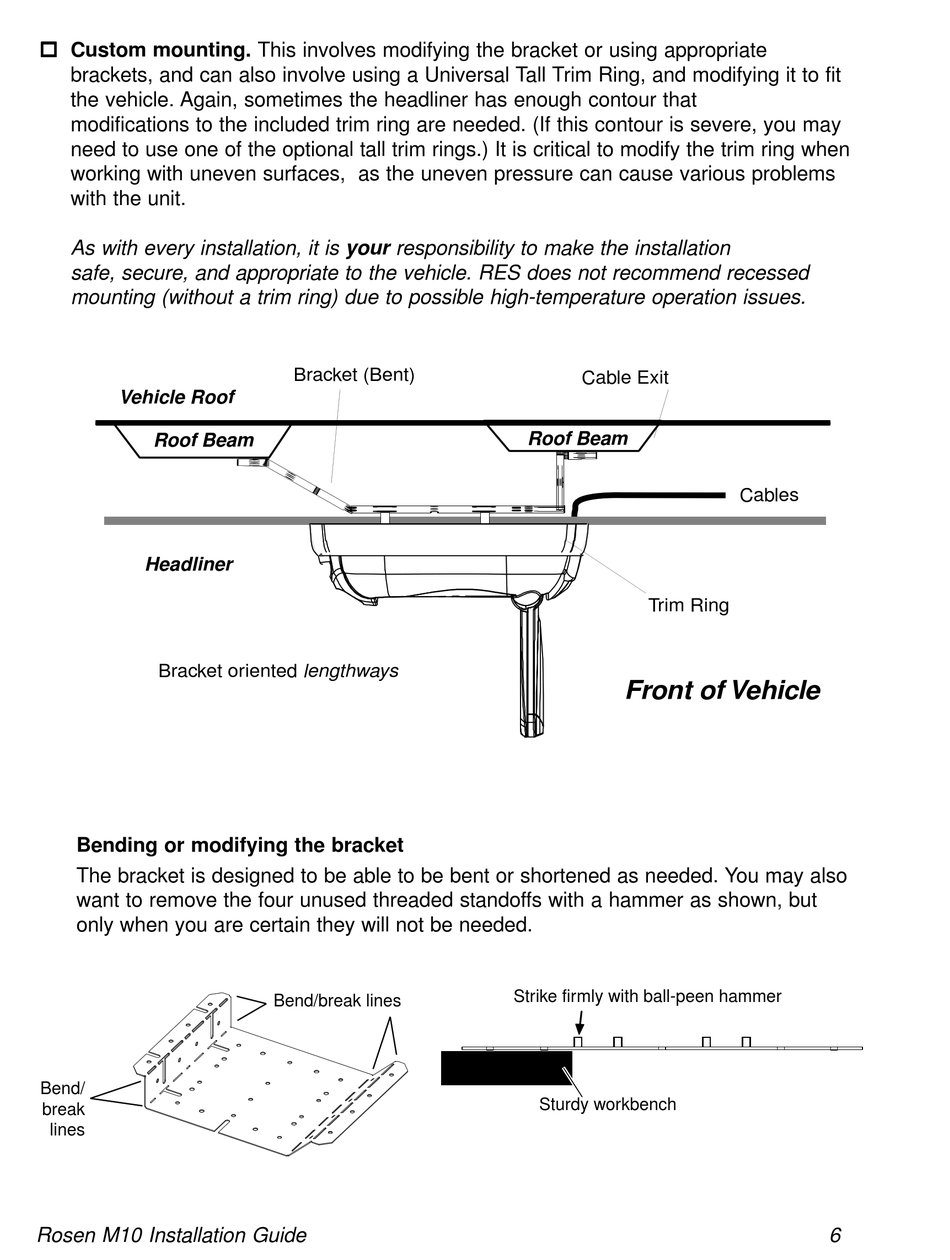

Rosen M10 Monitor/ Dual-Zone Controller Installation Manual page 6

! ! ! ! ! Custom mounting. This involves modifying the bracket or using appropriate
brackets, and can also involve using a Universal Tall Trim Ring, and modifying it to fit
the vehicle. Again, sometimes the headliner has enough contour that
modifications to the included trim ring are needed. (If this contour is severe, you may
need to use one of the optional tall trim rings.) It is critical to modify the trim ring when
working with uneven surfaces, as the uneven pressure can cause various problems
with the unit.
As with every installation, it is your responsibility to make the installation
safe, secure, and appropriate to the vehicle. RES does not recommend recessed
mounting (without a trim ring) due to possible high-temperature operation issues.
Vehicle Roof
Roof Beam
Headliner
Bracket oriented lengthways
Bending or modifying the bracket
The bracket is designed to be able to be bent or shortened as needed. You may also
want to remove the four unused threaded standoffs with a hammer as shown, but
only when you are certain they will not be needed.
Bend/
break
lines
Rosen M10 Installation Guide
Bracket (Bent)
Bend/break lines
Cable Exit
Roof Beam
Trim Ring
Front of Vehicle
Strike firmly with ball-peen hammer
Sturdy workbench
Cables
6
