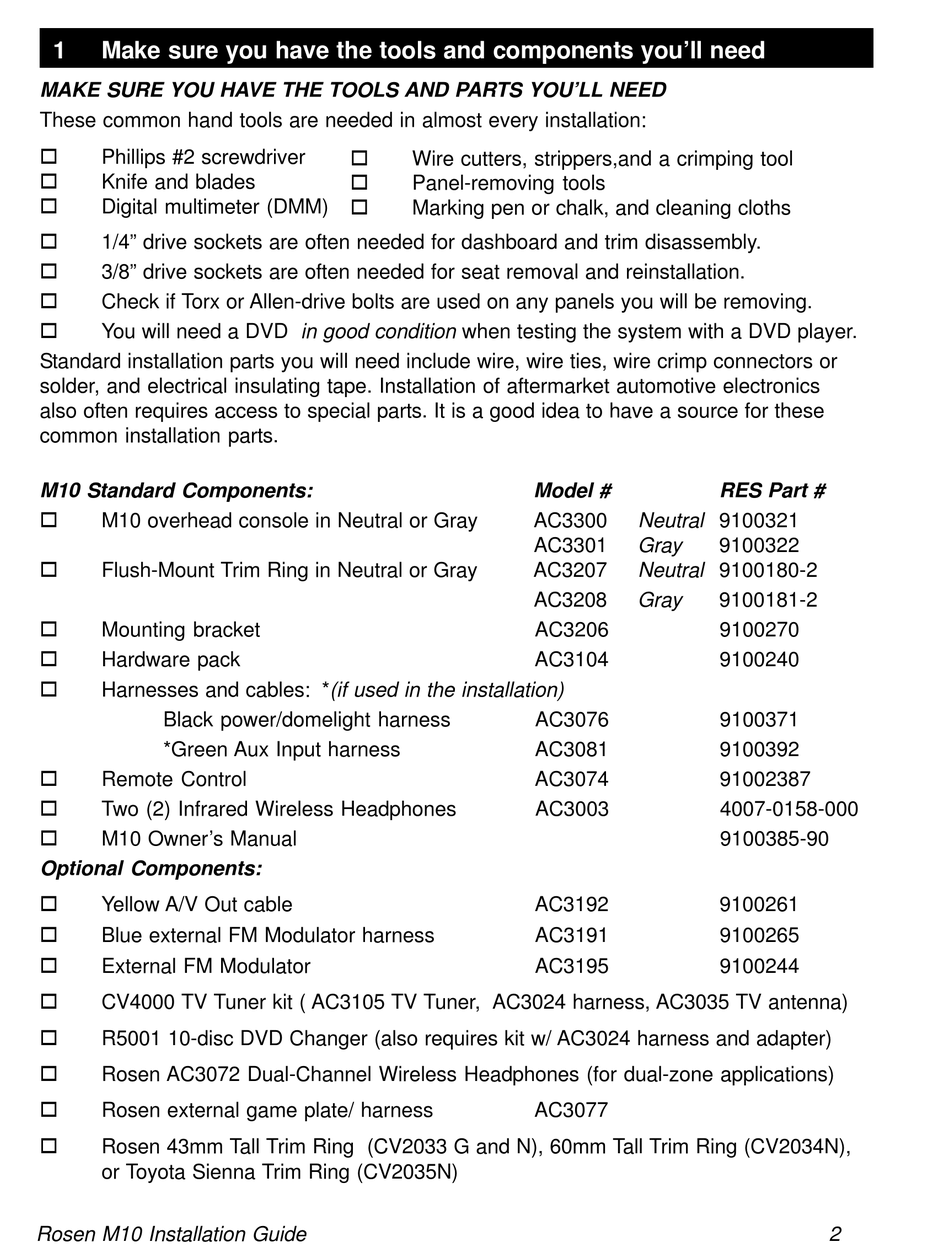

Rosen M10 Monitor/ Dual-Zone Controller Installation Manual page 2

1 Make sure you have the tools and components you'll need
MAKE SURE YOU HAVE THE TOOLS AND PARTS YOU'LL NEED
These common hand tools are needed in almost every installation:
!
Phillips #2 screwdriver
!
Knife and blades
!
Digital multimeter (DMM)
!
1/4" drive sockets are often needed for dashboard and trim disassembly.
!
3/8" drive sockets are often needed for seat removal and reinstallation.
!
Check if Torx or Allen-drive bolts are used on any panels you will be removing.
!
You will need a DVD in good condition when testing the system with a DVD player.
Standard installation parts you will need include wire, wire ties, wire crimp connectors or
solder, and electrical insulating tape. Installation of aftermarket automotive electronics
also often requires access to special parts. It is a good idea to have a source for these
common installation parts.
M10 Standard Components:
!
M10 overhead console in Neutral or Gray
!
Flush-Mount Trim Ring in Neutral or Gray
!
Mounting bracket
!
Hardware pack
!
Harnesses and cables: *(if used in the installation)
Black power/domelight harness
*Green Aux Input harness
!
Remote Control
!
Two (2) Infrared Wireless Headphones
!
M10 Owner's Manual
Optional Components:
!
Yellow A/V Out cable
!
Blue external FM Modulator harness
!
External FM Modulator
!
CV4000 TV Tuner kit ( AC3105 TV Tuner, AC3024 harness, AC3035 TV antenna)
!
R5001 10-disc DVD Changer (also requires kit w/ AC3024 harness and adapter)
!
Rosen AC3072 Dual-Channel Wireless Headphones (for dual-zone applications)
!
Rosen external game plate/ harness
!
Rosen 43mm Tall Trim Ring (CV2033 G and N), 60mm Tall Trim Ring (CV2034N),
or Toyota Sienna Trim Ring (CV2035N)
Rosen M10 Installation Guide
!
Wire cutters, strippers,and a crimping tool
!
Panel-removing tools
!
Marking pen or chalk, and cleaning cloths
Model #
AC3300 Neutral 9100321
AC3301 Gray
AC3207 Neutral 9100180-2
AC3208 Gray
AC3206
AC3104
AC3076
AC3081
AC3074
AC3003
AC3192
AC3191
AC3195
AC3077
RES Part #
9100322
9100181-2
9100270
9100240
9100371
9100392
91002387
4007-0158-000
9100385-90
9100261
9100265
9100244
