Operations in the OCTA-CAPTURE's Panel

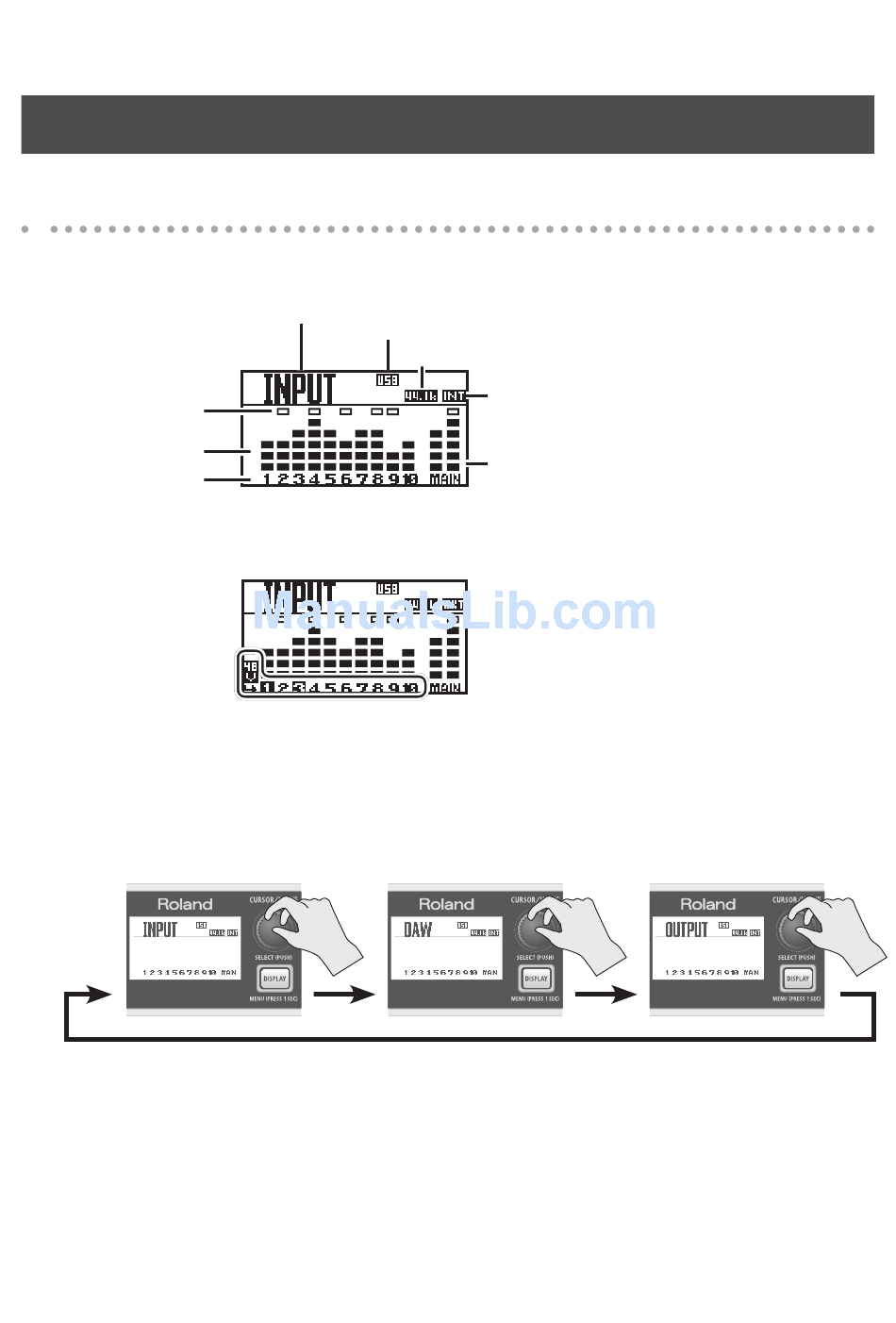

Main Screen
Press the [DISPLAY] button to access the main screen.
Clip indicator
Level meter
Channel Number
If phantom power (p. 36) is turned on for a channel, that channel number will be highlighted.
As you turn the [CURSOR/VALUE] knob toward the right, you'll move successively through the
screens "INPUT" (the input levels), "DAW" (the output levels from the computer), and "OUTPUT" (the
output levels from the OCTA-CAPTURE's OUTPUT jacks).
Input Level meter
54
Name of the level
meters currently shown
DAW Playback Level meter
Lit when connected via USB
Sampling Frequency
Sync indicator
Internal clock (INT)
External clock (EXT)
Output level meter
Output Level meter
