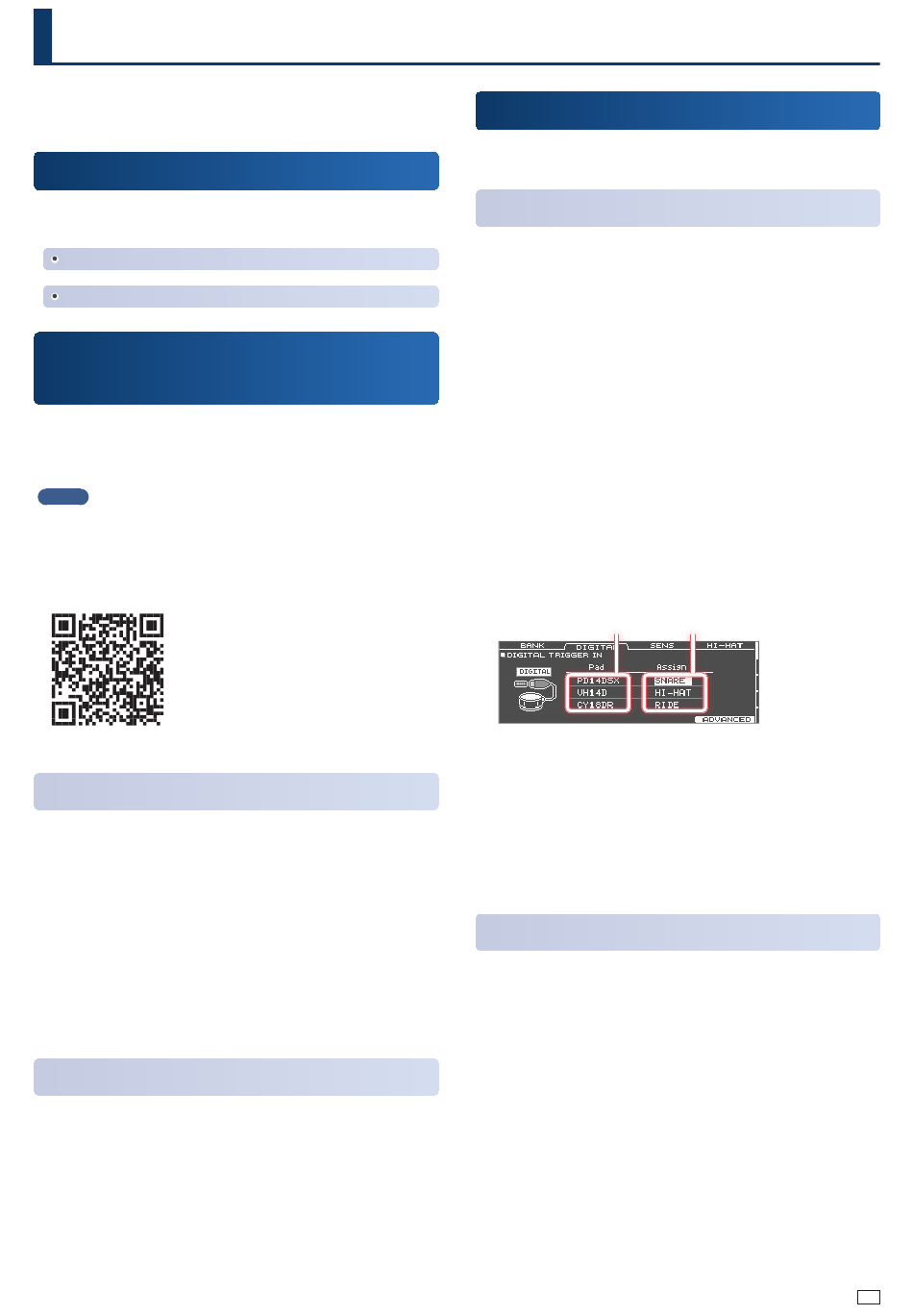

Roland TD-50X Supplementary Manual

TD-50X Version 1.20 Supplementary Manual
This manual explains the new features that were added in TD-50X
version 1.20.
Introduction
The following functions have been added as of TD-50X version
1.20.
The PD-14DSX (Digital Snare Pad) can now be used. The PD-14DSX (Digital Snare Pad) can now be used.
Trigger types have been added, allowing more pads to be used. Trigger types have been added, allowing more pads to be used.
Checking the system program version of
the TD-50X
Make sure that the system program version of the TD-50X is
1.20 or later.
If the current version is earlier than Ver. 1.20, update the system.
MEMO
If you are using the TD-50, you can use the system program
update once you upgrade to the TD-50X.
Refer to the following for details.
https://www.roland.com/products/rc_TD-50X_upgrade/
Checking the TD-50X version
1.
Press the [SETUP] button on the TD-50X.
The SETUP MENU screen appears.
2.
Use the PAGE [UP] [DOWN] buttons to show the
SETUP MENU 2 screen.
3.
Press the [F3] (INFO) button.
The information screen appears.
4.
Press the [F1] (PROGRAM) button to show the
program version.
How to get the update (system program)
1.
Visit the following website on your computer.
https://www.roland.com/support/
2.
Choose "TD-50X" as the product name.
See the download page of the update software for how to do the
update.
1
Using the PD-14DSX
See the Owner's Manual that's included with the PD-14DSX for
how to set up and play the PD-14DSX.
Configuring the PD-14DSX assignments
Here's how to specify the trigger input to which a connected
PD-14DSX should be assigned.
The optimal pad assignments are already made when you first
connect the PD-14DSX.
The following explains how to change the assigned destinations
(assignments).
* If you assign the same trigger input used by a pad connected to
a TRIGGER IN jack, the pad that's connected to that TRIGGER IN
jack does not output sound.
* When you execute a factory reset for the TD-50X, the
Ver.
connection history and settings of digitally-connected pads are
initialized.
1.
Press the [TRIGGER] button.
2.
Press the PAGE [UP] button to display page 1 (TRIG
BASIC).
3.
Press the [F2] (DIGITAL) button.
The DIGITAL TRIGGER IN screen appears.
4.
Use the cursor buttons to select PD14DSX, and
use the [-] [+] buttons or the dial to specify the
assignment.
You can also select an assignment by striking the PD-14DSX.
If you don't want to assign the pad to any trigger input, choose
"N/A".
* You can't specify multiple instances of the same assignment.
Adjusting the sensitivity of the PD-14DSX
The PD-14DSX is already set up with the optimal sensitivity when
shipped from the factory. You can adjust the sensitivity to set this
in greater detail.
For details on the parameters that can be edited, refer to "TD-50X
Data List" (Roland website).
1.
Press the [TRIGGER] button.
2.
Press the PAGE [UP] button several times to display
the topmost page.
© 2024 Roland Corporation
Connected pad Assignment
01
