I AF output level selection

The received audio can be input into your computer via the
sound card.
Before inputting the received audio into the [LINE IN] con-
nector (connector name depends on your sound card), the
output level of the [EXT-SP] must be set properly. Perform as
follows:

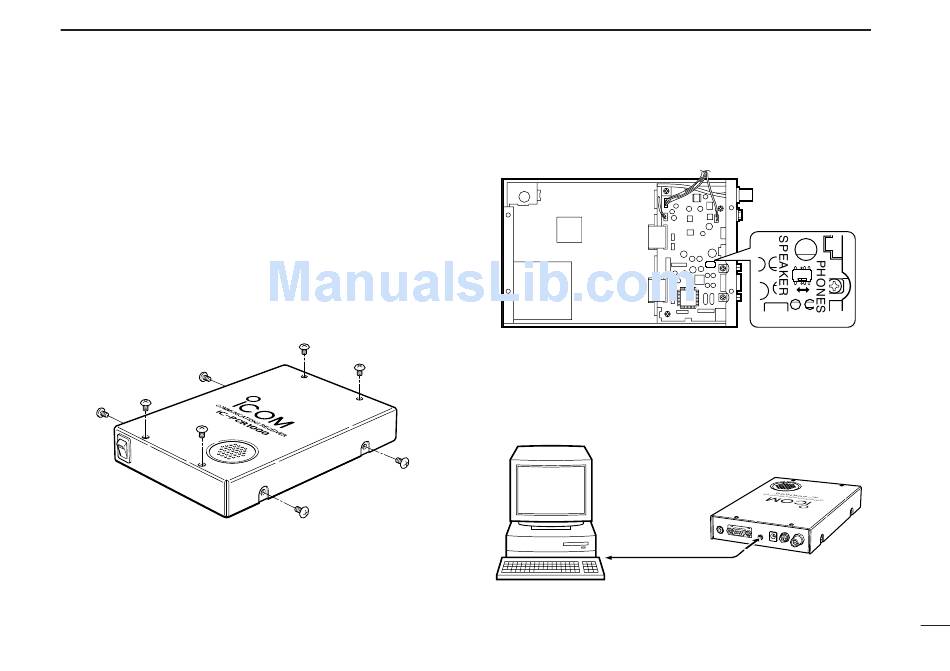

q Remove the 8 screws from the cover as shown below.
Open the cover.
w Select the output level as shown below.
- "SPEAKER" for internal speaker.
- "PHONES" for PC sound card or headphones.
e Replace the 8 screws and cover.
r Connect an appropriate cable between IC-PCR1000 and
PC.
- Plug for [EXT-SP] is supplied with the receiver.
to [LINE IN]
(depends on
your sound card)
1
INSTALLATION
IC-PCR1000
[EXT-SP]
3
