If You Have Metal Duct; If You Have Flex Duct - Field Controls UV-AIRE UV-12 Owner's Manual

IF YOU HAVE FLEX DUCT: For installations on duct systems with a metallic main duct and flex duct branches,
follow the instructions in figure 2A below.

IF YOU HAVE METAL DUCT:

a. Apply supplied wet and stick mounting template to air duct in either a vertical or horizontal position as
shown in Figure 2B.
b. Drill ⁄ " diameter mounting holes at positions indicated on template.
1
8
c. Cut out rectangular hole on template using a pair of tin snips or jigsaw. (See Figure 2B) Remove
template.
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
page 3

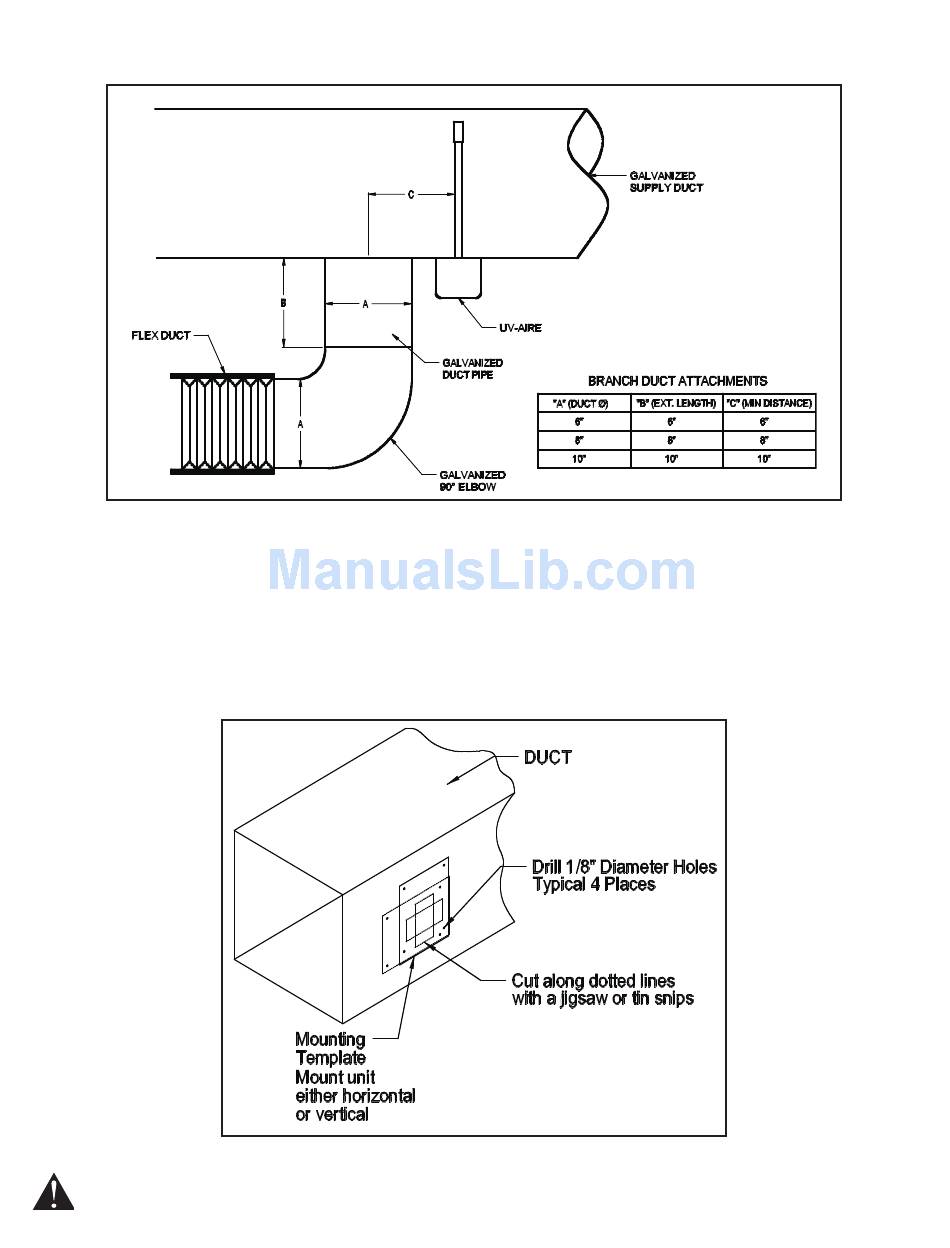

Figure 2A
Figure 2B
