HP Configuring Arrays Reference Manual page 44

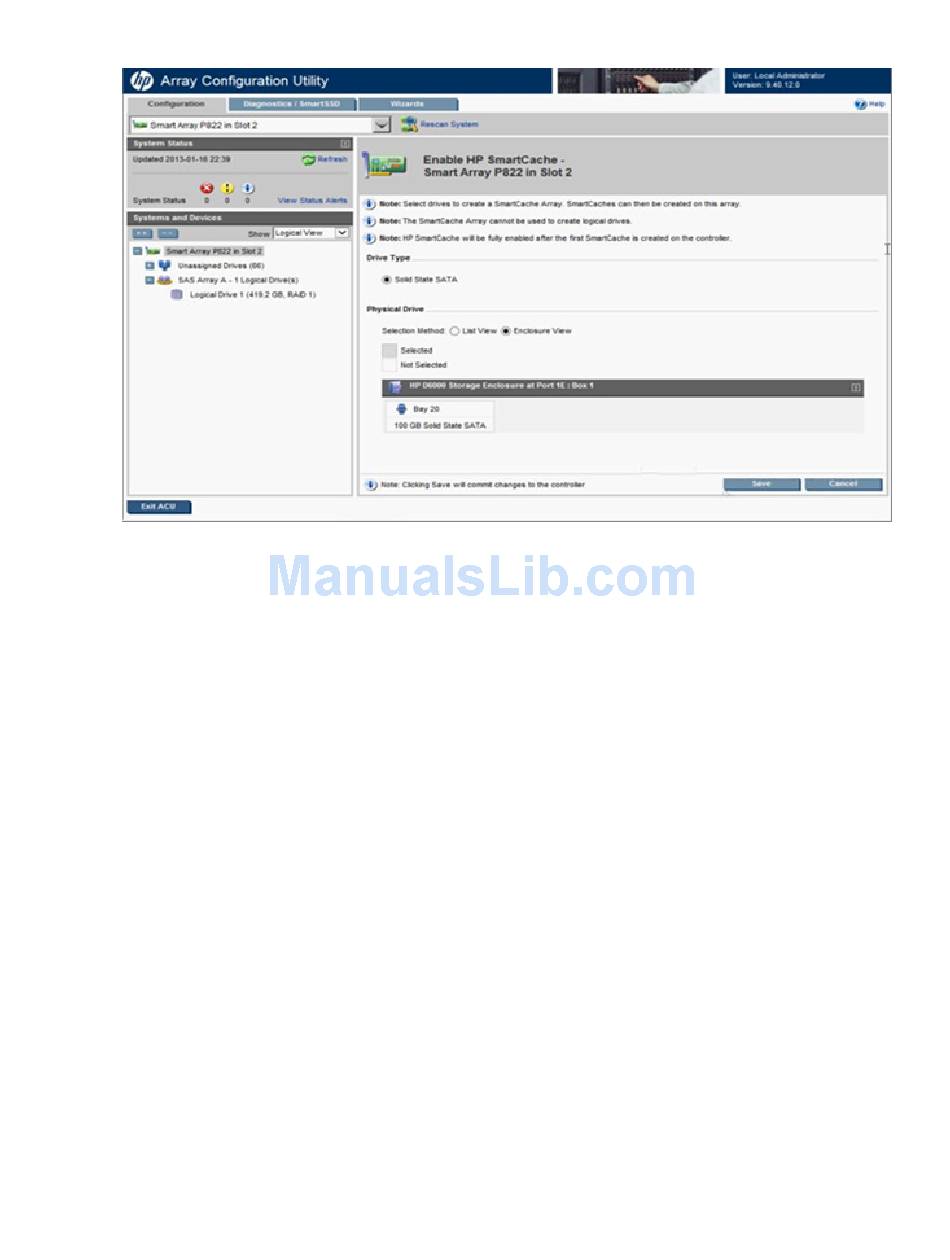

Click Enable HP SmartCache.
3.
Select a solid state drive type.
4.
Select one or more physical drives from the list of available drives.
5.
Click Save.
6.
Some features may not be available with HP SmartCache enabled.
With the SmartCache selected in the left panel, click Create SmartCache for Logical Drive.
7.
Select the logical drive to cache.
8.
Select the size of the cache. HP recommends 10% of the drive size, and it must be a minimum of 1 GiB.
9.
Click Save.
10.
The SmartCache is created for the Logical Drive.
Working with mirrored arrays
Among the advanced tasks possible with the ACU GUI, you can split a mirrored array and then recombine
it. This process entails breaking a RAID 1 or RAID 1+0 mirror into two identical new arrays consisting of RAID
0 logical drives.
Support for these procedures requires the following:
•
The ACU GUI must be run in offline mode.
•
Select controller models must have a valid SAAP license
•
Mirrored arrays being split can have RAID 1, RAID 1+0, RAID 1 (ADM), or RAID 10 (ADM)
configurations. Arrays with other RAID configurations cannot be split.
Several reasons exist for splitting and recombining a mirrored array. For more information, see the "RAID
1(+0): breaking mirrors and rebuilding drives" how-to white paper on the HP website
(http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00378986/c00378986.pdf).
("About SAAP" on page 8).
HP Array Configuration Utility 44
