Instruction Manual
P/N: 12569001
Make: Subaru Model: Impreza WRX STi Year: 2008-2012 Engine: H4-2.5L (t)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12569001 and is the answer not in the manual?

Questions and answers

Summary of Contents for GReddy 12569001

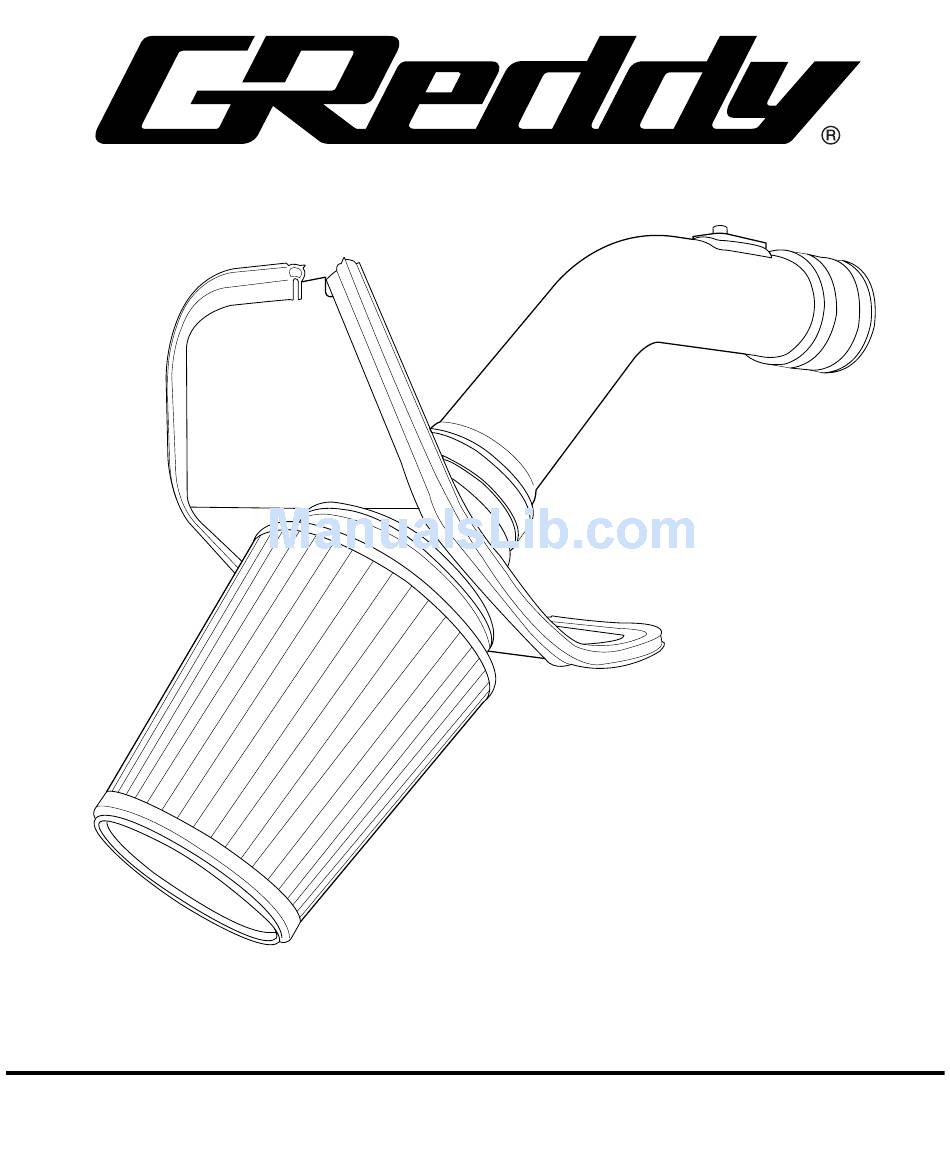

  • Page 1 Instruction Manual P/N: 12569001 Make: Subaru Model: Impreza WRX STi Year: 2008-2012 Engine: H4-2.5L (t)
  • Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 949-588-8300. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
  • Page 3 GReddy.com Page 3...
  • Page 4 REMOVAL Figure A Refer to Figure A for step 1 Step1: Remove the two clips 1 off the air duct and remove air duct 2 . Loosen both clamps 3 on the stock intake tube 4 and remove tube. Unplug the mass air sensor 5 . Page 4...
  • Page 5 Step 2: Remove the mass air sensor 5 . Unclip and Remove this part of the stock air box. Remove the two 10mm bolts (located inside the air box) and remove the remaining part of the stock air box out. GReddy.com Page 5...
  • Page 6 INSTALL Figure C Refer to Figure C for step 3 Step 3: Remove the bracket holding the stock air box with a 10mm. Do not discard the bolts as you will reuse them. Page 6...
  • Page 7 INSTALL Figure D Refer to Figure D for step 4 Step 4: Install the filter adapter with the provided hardware to the housing, along with the seal trim, cou- pler, clamps and filter. Install on vehicle. GReddy.com Page 7...
  • Page 8 INSTALL Figure E Refer to Figure E for step 5 Step 5: Preinstall coupling to intake tube along with clamps and mass air sensor. Page 8...
  • Page 9 INSTALL Figure F Refer to Figure F for step 6 Step 6: Install tube with coupler onto the compressor inlet tube 6 . Re-conect wire harness to Mass air sensor. Install is complete. GReddy.com Page 9...
  • Page 10 Pro DRY S Air Filter P/N: 61-90135 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to Greddy.com. Page 10...
  • Page 11 Page left blank intentionally GReddy.com Page 11...
  • Page 12 GReddy Performance Products 9 Vanderbilt, Irvine CA 92618 TEL: 949.588.8300 • Tech@greddy.com P/N: 06-80504...
