Page 1: Instruction Manual

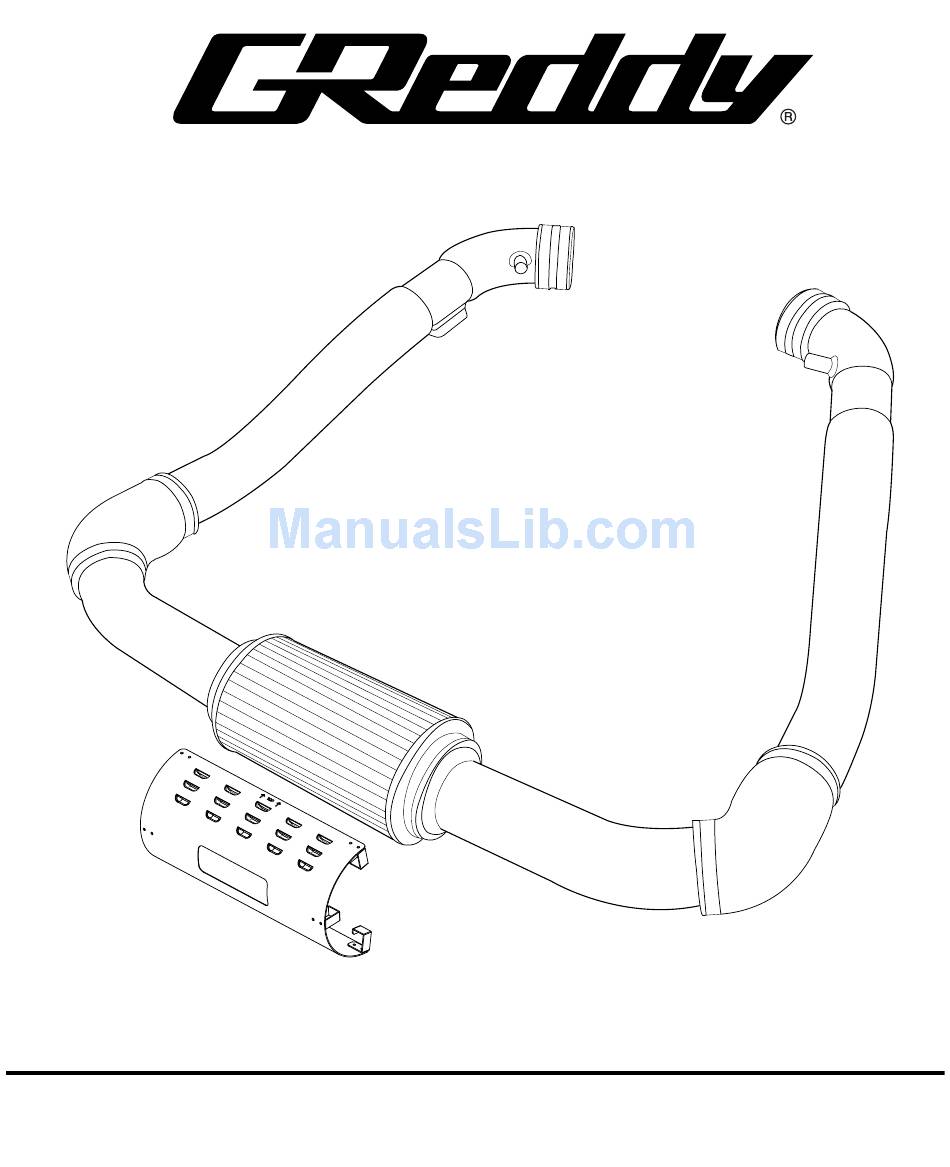

* Optional (12529002) Instruction Manual P/N: 12529001 Make: Infiniti Model: G37 Year: 2008-2011 Engine: V6-3.7L... - Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 949-588-8300. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public streets or highways is strictly prohibited in California and others states that have adopted California emission regulations. GReddy.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for steps 1-6 Step 1: Remove the engine cover fasteners 1 and remove the engine cover. Step 2: Loosen the clamp securing the intake tube to the throttle body. 2 Step 3: Remove the airbox mounting bolt. 3 Step 4: Unplug the mass airflow sensor (MAF) sensor wiring harness.
- Page 5 Step 10: Remove the two 10mm bolts on the edge of the bumper on the inside. Step 11: Remove the bolts from under the belly pan which connects the belly pan to the bumper. Step 12: Remove the bumper. Page 5 GReddy.com...
- Page 6 INSTALL Figure C Refer to Figure C for steps 13-15 Step 13: Remove the air scoop mounting bolt and remove the scoop through the engine side of the vehicle. Step 14: Loosen the horn mount 7 and adjust to accommodate the new intake tube. Step 15: Remove the MAF sensors from the OE intake housings and install them on the new intake tubes using the supplied foam gasket R and screws Q .
- Page 7 Step 18: Replace the OE crankcase breather hose with the supplied crankcase breather hose. K Step 19: Install the Takeda intake tubes and secure with the provided straight couplers and clamps. Step 20: Connect the MAF harness to the MAF sensors. Page 7 GReddy.com...
- Page 8 INSTALL Figure E Refer to Figure E for steps 21-24 Step 21: Install the h-shaped tube mounting brackets onto the bumper brace in front of the radiator. Step 22: Install the isolation mount onto intake tubes using the provided hardware. Step 23: Loosely install the air filter on the intake tubes and adjust the tubes and filter prior to tightening the clamps and isolation mounts.
- Page 9 INSTALL Figure F Refer to Figure F & B for step 25 Step 25: Install the bumper by repeating steps 7 through 12 in reverse. Your installation is now complete. GReddy.com Page 9...
- Page 10 Pro DRY S Air Filter Shield P/N: 12529002 P/N: 61-90126 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to Greddy.com. Page 10...
- Page 11 Page Left Intentionally blank Page 11 GReddy.com...
- Page 12 GReddy Performance Products 9 Vanderbilt, Irvine CA 92618 TEL: 949.588.8300 • Tech@greddy.com P/N: 06-80494...
