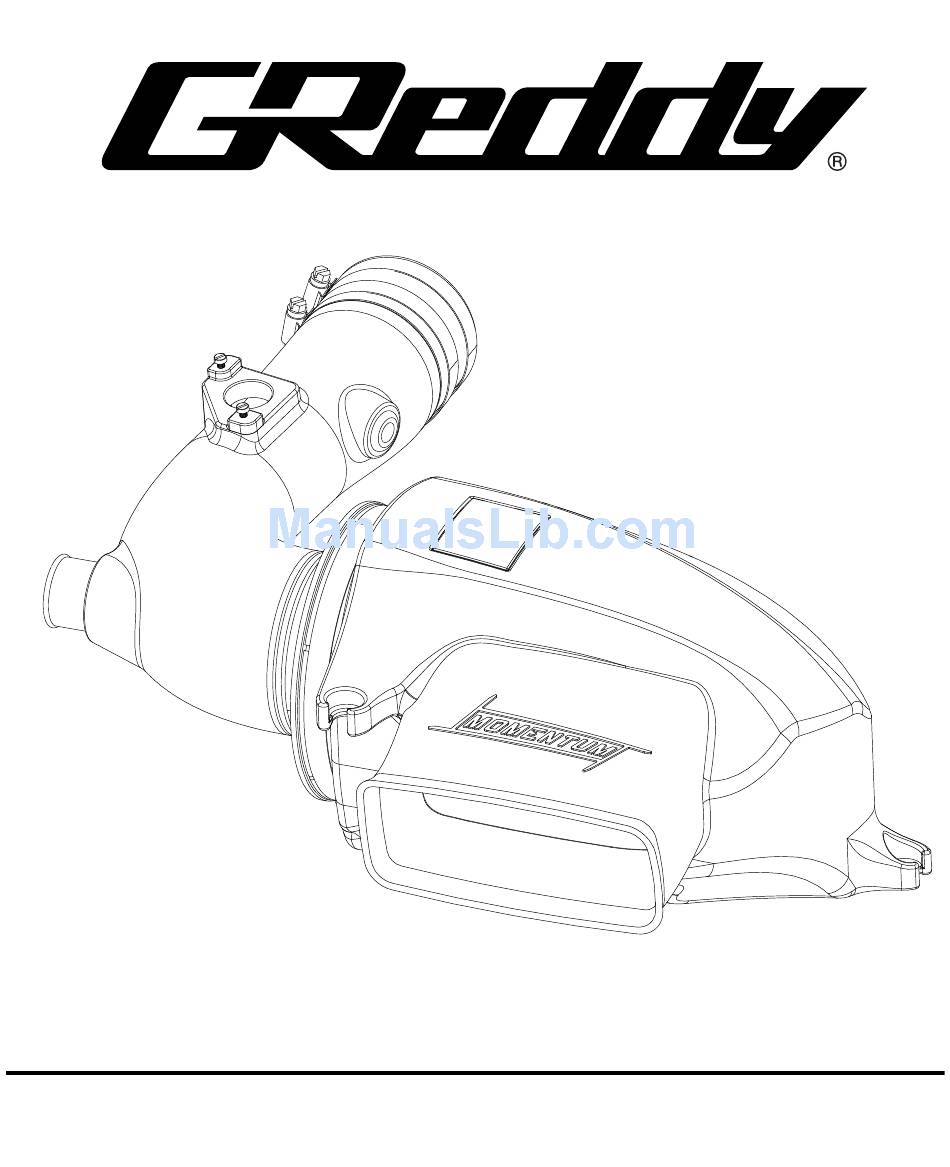

- Page 1 Instruction Manual P/N: 12519101 Make: Scion/Subaru/Toyota Model: FR-S/BRZ/86 Year: 2013 Engine: H4-2.0L...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 949-588-8300. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 GReddy.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1-5 Step 1: Remove the three 10mm bolts on the OE housing Step 2: Unplug the MAF sensor and unclip the wire harness from the OE intake tube 2 . Step 3: Remove the crank case hose from the OE tube Step 4: Loosen the clamp off the throttle body and cabin sound chamber tube, then remove the OE intake system out of the vehicle Step 5: Remove the five 10mm bolts and two push clips on the front bumper rail...
- Page 5 REMOVAL Figure B Refer to Figure B for step 6 Step 6: Remove the three push clips on the driver side fender well 6 connecting to the bumper, and also the one by the amber light GReddy.com Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for steps 7 Step 7: With a flat head screwdriver push on the bottom side of the amber and pry out. Pop out the bottom side, then remove the rest of the amber light. Page 6...
- Page 7 Step 8: Gently pull the right side of the bumper to gain access to the OE scoop. Step 9: Remove the OE scoop off the vehicle by removing the two 10mm bolts and install bumper back on. GReddy.com Page 7...
- Page 8 INSTALL Page left blank intentionally Figure E Refer to Figure E for steps 10-13 Step 10: Remove two of the OE grommets off the OE housing that you removed in step one and install them on the housing (Refer to top right photo). Step 11: Install the large hose clamp onto the housing and air filter as shown (Refer to top right photo).
- Page 9 Step 16: Install the supplied rubber grommet onto the intake tube 12 and reinstall your factory crank case vent line. Step 17: Attach the sound chamber to the intake tube using the supplied coupling and clamps 13 . Step 18: Reconnect battery, your installation is now complete! GReddy.com Page 9 Page...
- Page 10 Pro DRY S Air Filter P/N: TF-9019D To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to GReddy.com. Page 10...
- Page 11 Page left blank intentionally GReddy.com Page 11...
- Page 12 GReddy Performance Products 9 Vanderbilt, Irvine CA 92618 TEL: 949.588.8300 • Tech@greddy.com P/N: 06-80493...
