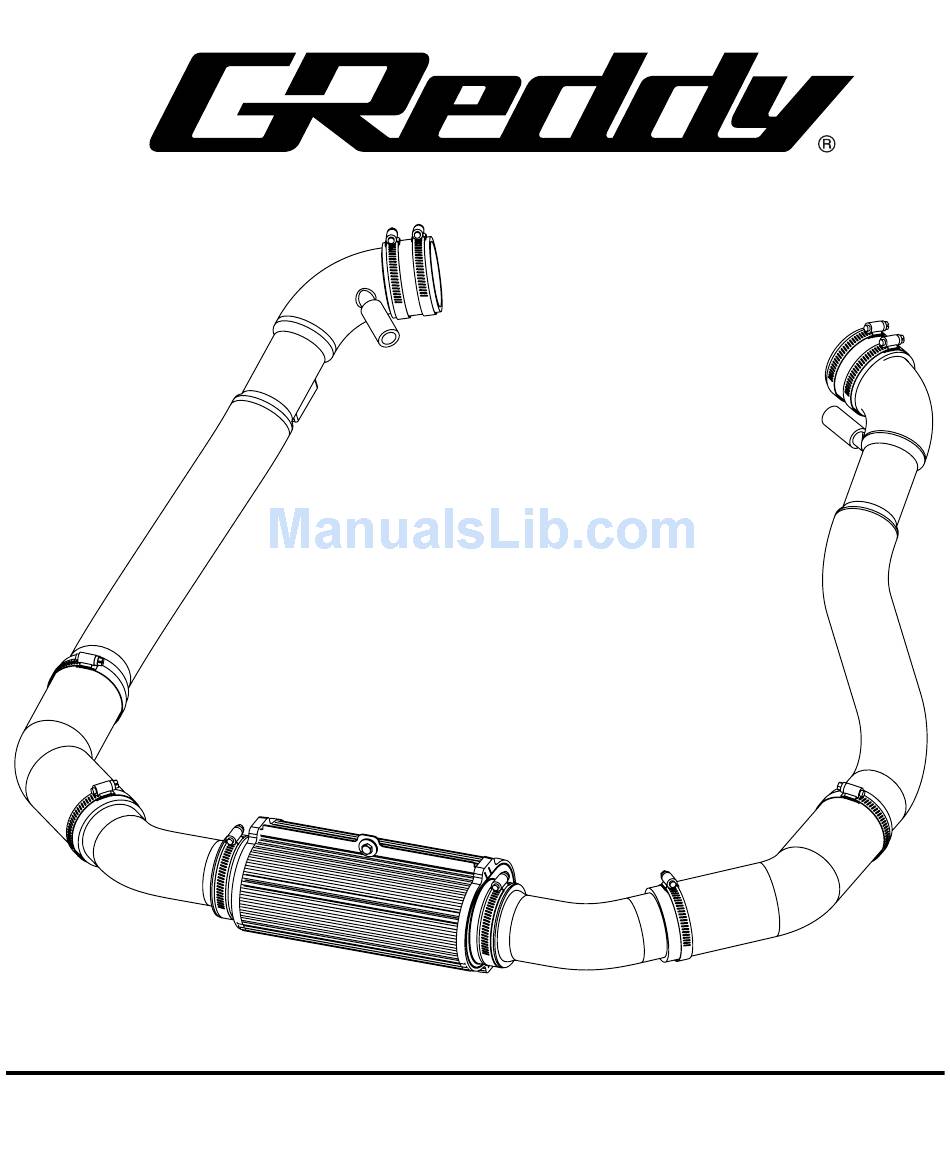

- Page 1 Instruction Manual P/N: 12529003 Make: Nissan Model: 370z Year: 2009-2012 Engine: V6-3.7L...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 949-588-8300. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 GReddy.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1-2 Step 1: Begin removing the engine strut brace by removing the two nuts and one bolt from both the passenger and driverside strut towers Step 2: Remove the plastic cover located under the windshield wipers 2 and remove the two nuts securing the strut brace to the vehicle, then remove the strut brace.
- Page 5 Step 5: Disconnect both intake tubes from the throttle bodies by loosening the clamps Step 6: Unplug the mass air flow sensor harnesses from the intake tubes and disconnect the plastic retainer clips securing the wire harness to the air boxs 6 . GReddy.com Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for steps 7-8 Step 7: Loosen and remove the air box mounting bolts from both the passenger and driverside 7 air box. Step 8: Remove the complete air box and intake tubes out of the vehicle. Page 6...
- Page 7 Step 11: Remove the two 10mm bolts that connect the bumper to the fenders. Step 12: Remove the bolts that are located underneath the car that connects the bumper to the belly pan then carefully remove bumper from vehicle. GReddy.com Page 7...
- Page 8 INSTALL Page left blank intentionally Figure E Refer to Figure E for step 13-14 Step 13: Insert both supplied silicone couplings through the radiator support passage 8 . Step 14: Remove the three factory screws for the bumper support brace and replace with the supplied hex head screws and washers 9 .
- Page 9 Step 18: Remove both mass air flow sensors & gaskets from your factory intake tubes and install them carefully onto your new upper intake tubes with the screws provided. (Do not mix up sensors) Step 19: Install both upper intake tubes into position and attach the crank case vent hoses 12 . GReddy.com Page 9 Page...
- Page 10 INSTALL Page left blank intentionally Figure G Refer to Figure G for step 20-25 Step 20: Position the lower intake tubes into the elbow couplings 13 . Step 21: Guide the intake tubes into the supplied air filter and adjust the intake tubes to line up with the air filters mount 14 and tighten with the supplied hardware.
- Page 11 Page left blank intentionally GReddy.com Page 11...
- Page 12 Page left blank intentionally GReddy.com Page 11...
- Page 13 Page left blank intentionally GReddy.com Page 11...
- Page 14 Pro DRY S Air Filter P/N: 61-90127 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to Greddy.com. Page 12...
- Page 15 Page Left Intentionally blank GReddy.com Page 13...
- Page 16 GReddy Performance Products 9 Vanderbilt, Irvine CA 92618 TEL: 949.588.8300 • Tech@greddy.com P/N: 06-80496...
