IMPORTANT SAFETY INSTRUCTIONS
WARN I NG:
To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Unplug air conditioner
before servicing.
Use two or more people to move and install air conditioner.
SAVE TH ESE INSTRUCTIONS

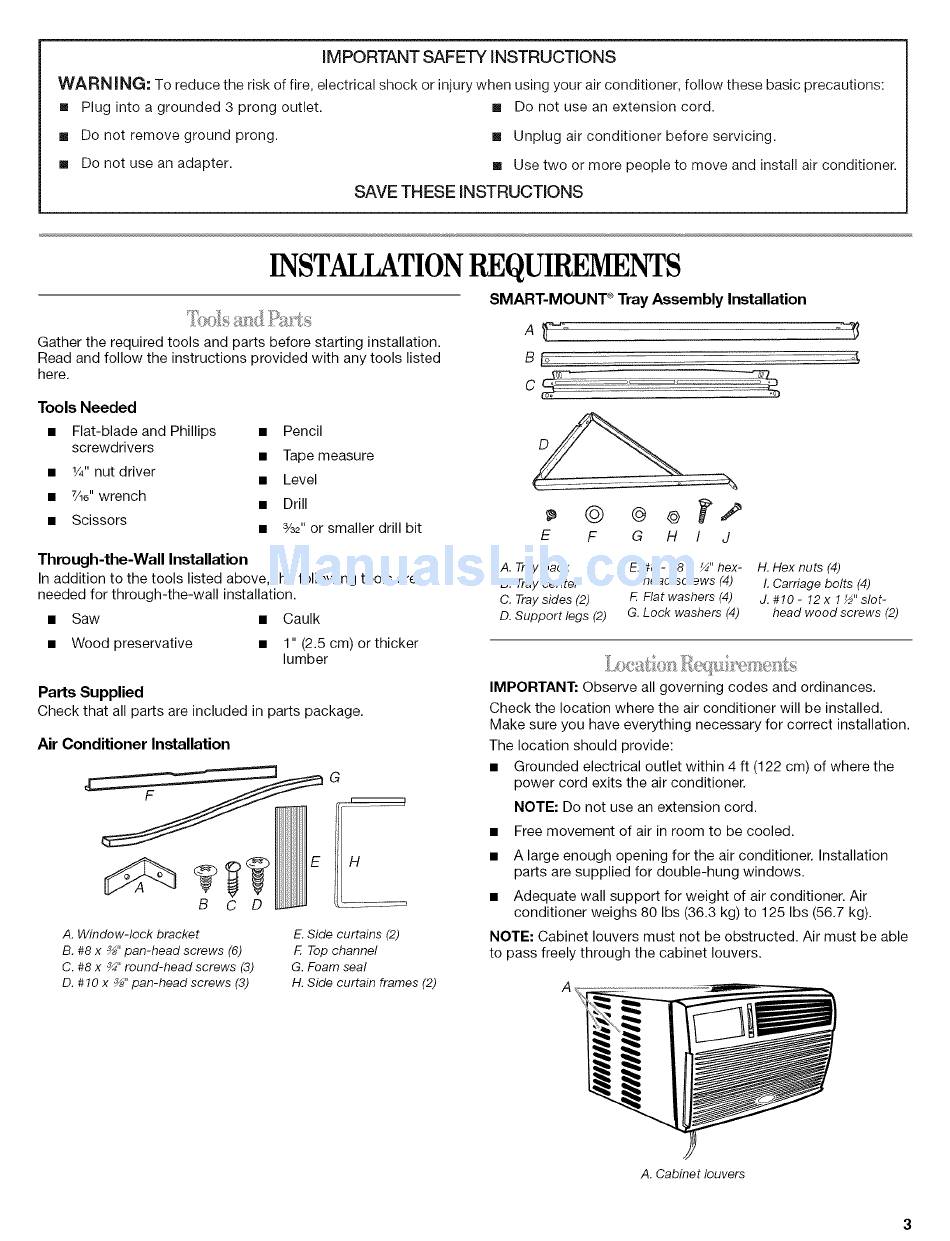

INSTALLATION REQUIREMENTS
SMART-MOUNT
_ Tray Assembly
Installation
Gather the required tools and parts before starting installation.
Read and follow the instructions
provided with any tools listed
here.
Tools Needed
A_
°
B _
4
Flat-blade and Phillips
screwdrivers
1/4"nut driver
7/16"
wrench
Scissors
Pencil
Tape measure
Level
Drill
%2" or smaller drill bit
Through-the-Wall Installation
In addition to the tools listed above, the following tools are
needed for through-the-wall installation.
Saw
Caulk
E
F
G
H
/
J
Wood preservative
1" (2.5 cm) or thicker
lumber
A. Tray back
B. Tray center
C. Tray sides (2)
D. Support legs (2)
E.#8-18x
_"hex-
H. Hexnuts(4)
head screws (4)
L Carriage bolts (4)
F. Flatwashers(4)
J.#10-12x1½"slot-
G. Lock washers (4)
head wood screws (2)
Parts Supplied
Check that all parts are included in parts package.
Air Conditioner
Installation
i
B
C
D
A. Window-lock
bracket
B. #8 x _" pan-head
screws (6)
C. #8 x _" round-head screws (3)
D. #10 x _" pan-head screws (3)
E. Side curtains (2)
F. Top channel
G. Foam seal
H. Side curtain frames (2)
IMPORTANT: Observe all governing codes and ordinances.
Check the location where the air conditioner will be installed.
Make sure you have everything necessary for correct installation.
The location should provide:
Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.
NOTE: Do not use an extension cord.
Free movement of air in room to be cooled.
A large enough opening for the air conditioner. Installation
parts are supplied for double-hung
windows.
Adequate wall support for weight of air conditioner. Air
conditioner
weighs 80 Ibs (36.3 kg) to 125 Ibs (56.7 kg).
NOTE: Cabinet louvers must not be obstructed.
Air must be able
to pass freely through the cabinet louvers.
A. Cabinet louvers
